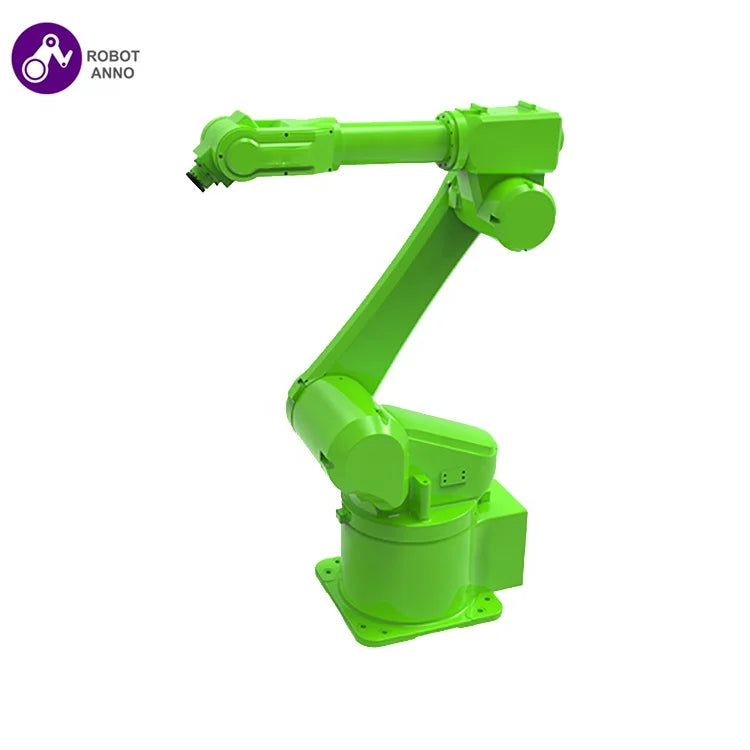

Hot selling industrial vertical machining center camera robot arm made in China Brand new

Hot selling industrial vertical machining center camera robot arm made in China Brand new

$16,248.05 USD
$19,997.60 USD $16,248.05 USD
Sale Sold out
Shipping calculated at checkout.
Product Description
Payload

10 kg
Reach

1500 mm
Structure

Articulated
Number of axes

6
Repeatability

±0.05 mm
Max. motion range
Axis 1
±165°

Axis 2
+135°/-75°

Axis 3
+78°/-76.5°

Axis 4
±360°

Axis 5
±115°

Axis 6
±450°
Max. speed
Axis 1
148°/sec

Axis 2
148°/sec

Axis 3
150°/sec

Axis 4
222°/sec

Axis 5
222°/sec

Axis 6
360°/sec
Body Weight

≈120 kg
Mounting type

Ground, bracket, ceiling
Ambient temperature

-20 ℃~80 °C

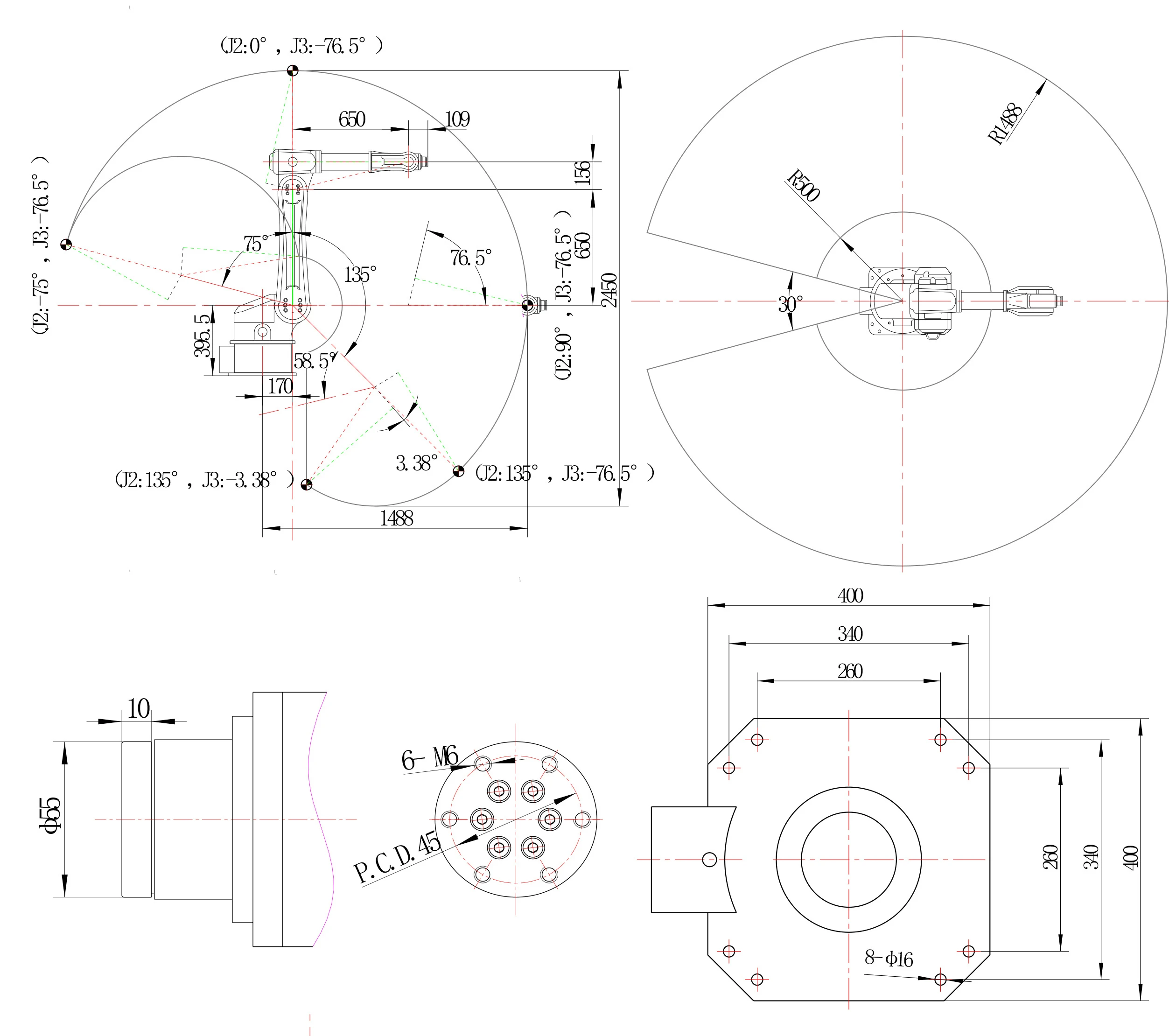

Workspace
Main Applications

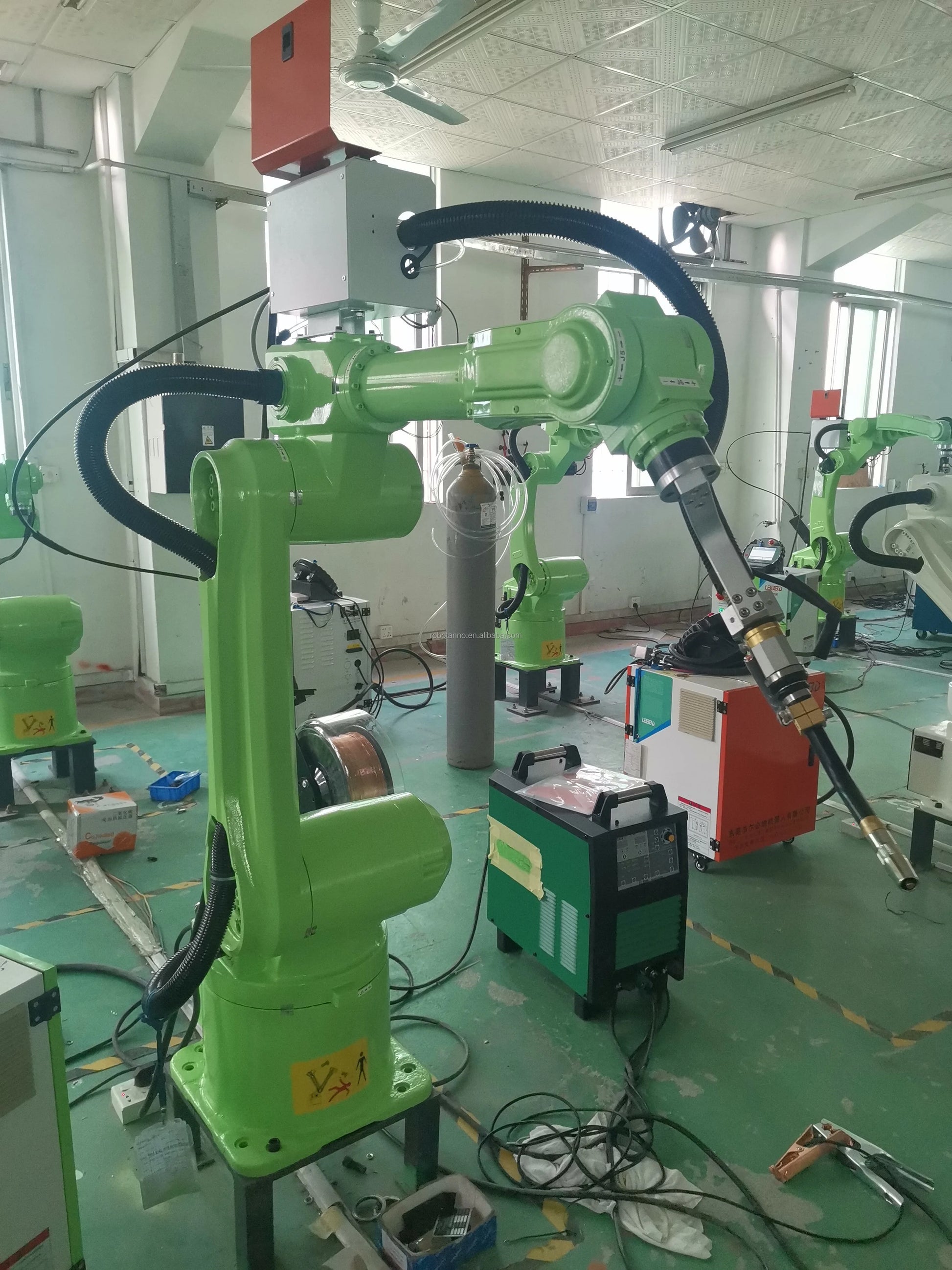

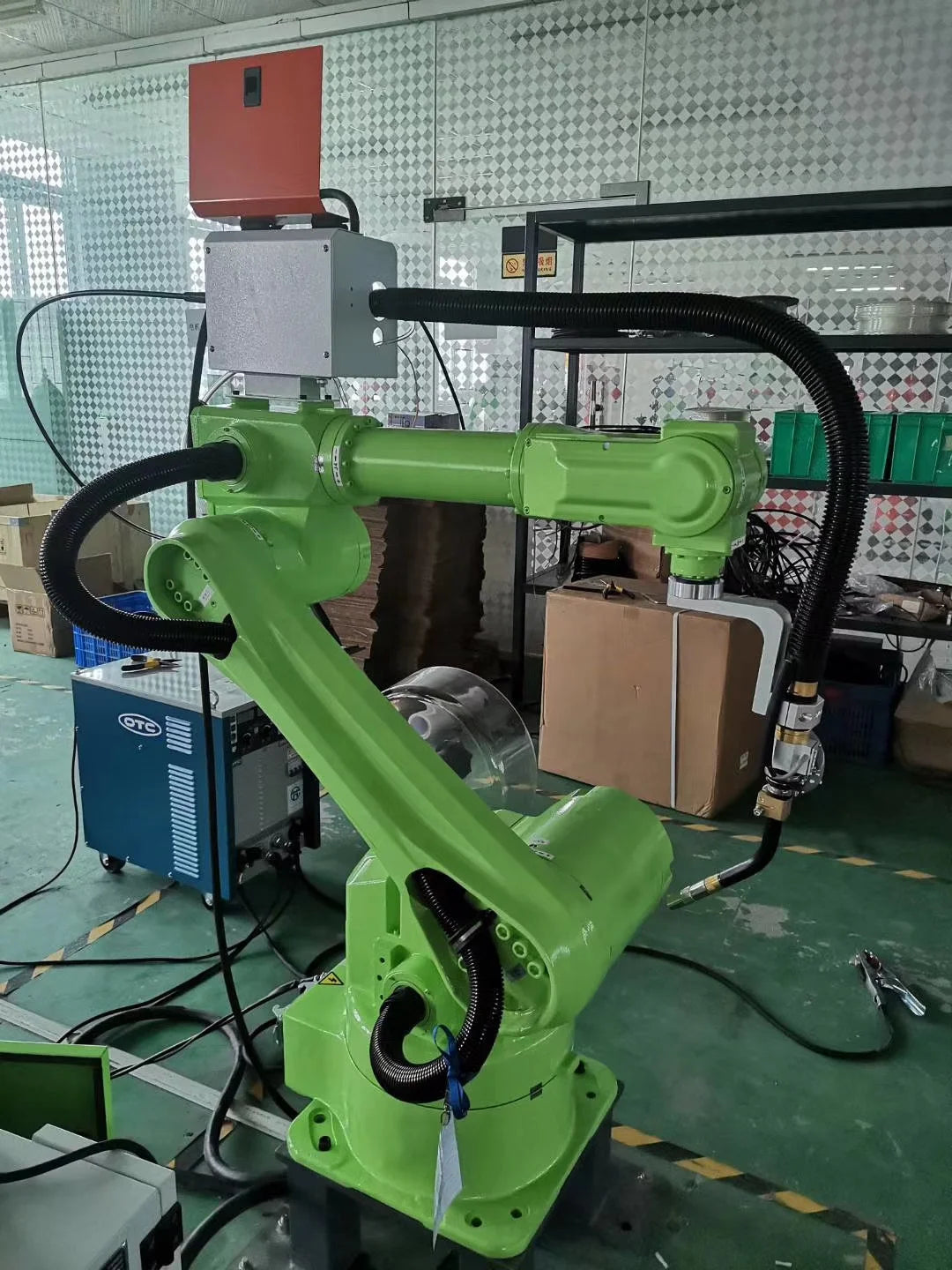

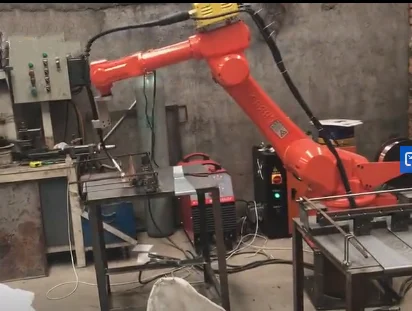

Materials handling, parts transfer, electric welding, machine management, palletizing, packaging, testing, deburring, grinding,
gluing, assembly &painting
Applicable Cases

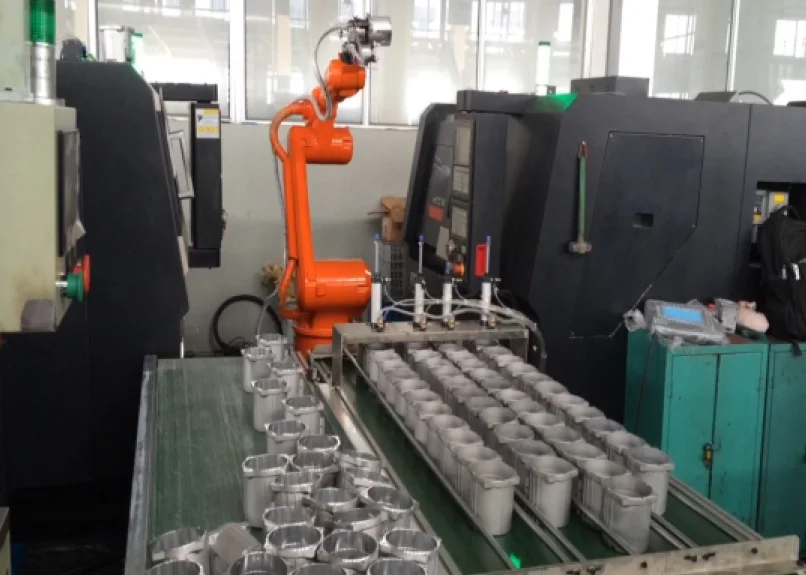

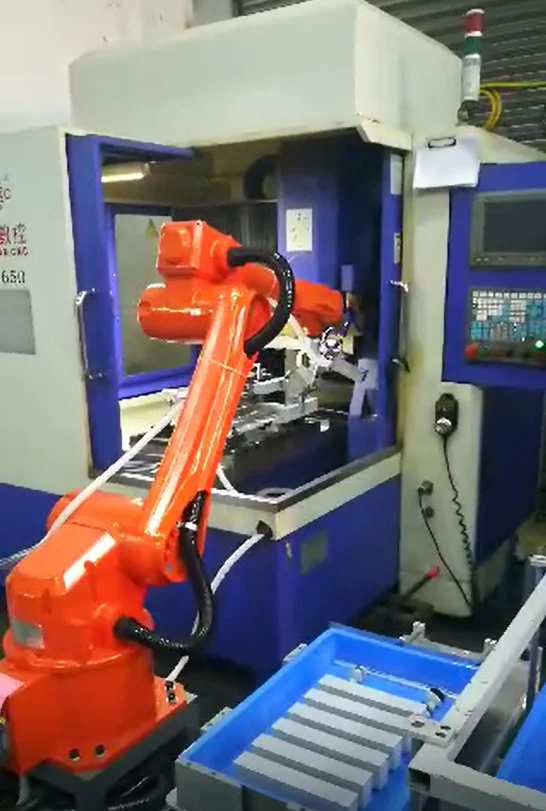

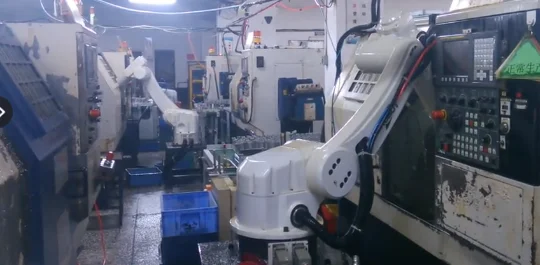

CNC lathe loading &unloading The figure shows a NC lathe automatic loading &unloading solution provided for a customer. Combined with the production line, one robot can manage two face-to-face NC machines, thereby significantly reducing labor cost and time cost and enhancing productivity of the customer.
Why Choose Us
Detailed Images

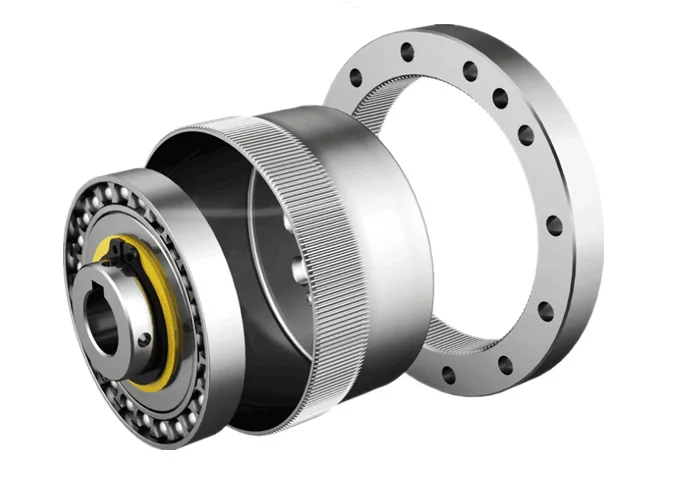

Harmonic reducer

Control the servo motor by three methods: position, speed and torque

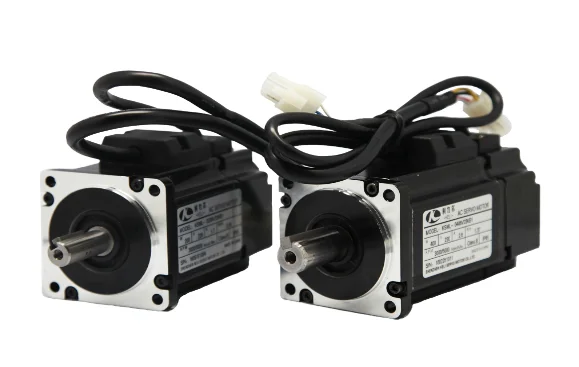

Servo Motor

High-precision control, good high-speed performance and strong anti-overload capability

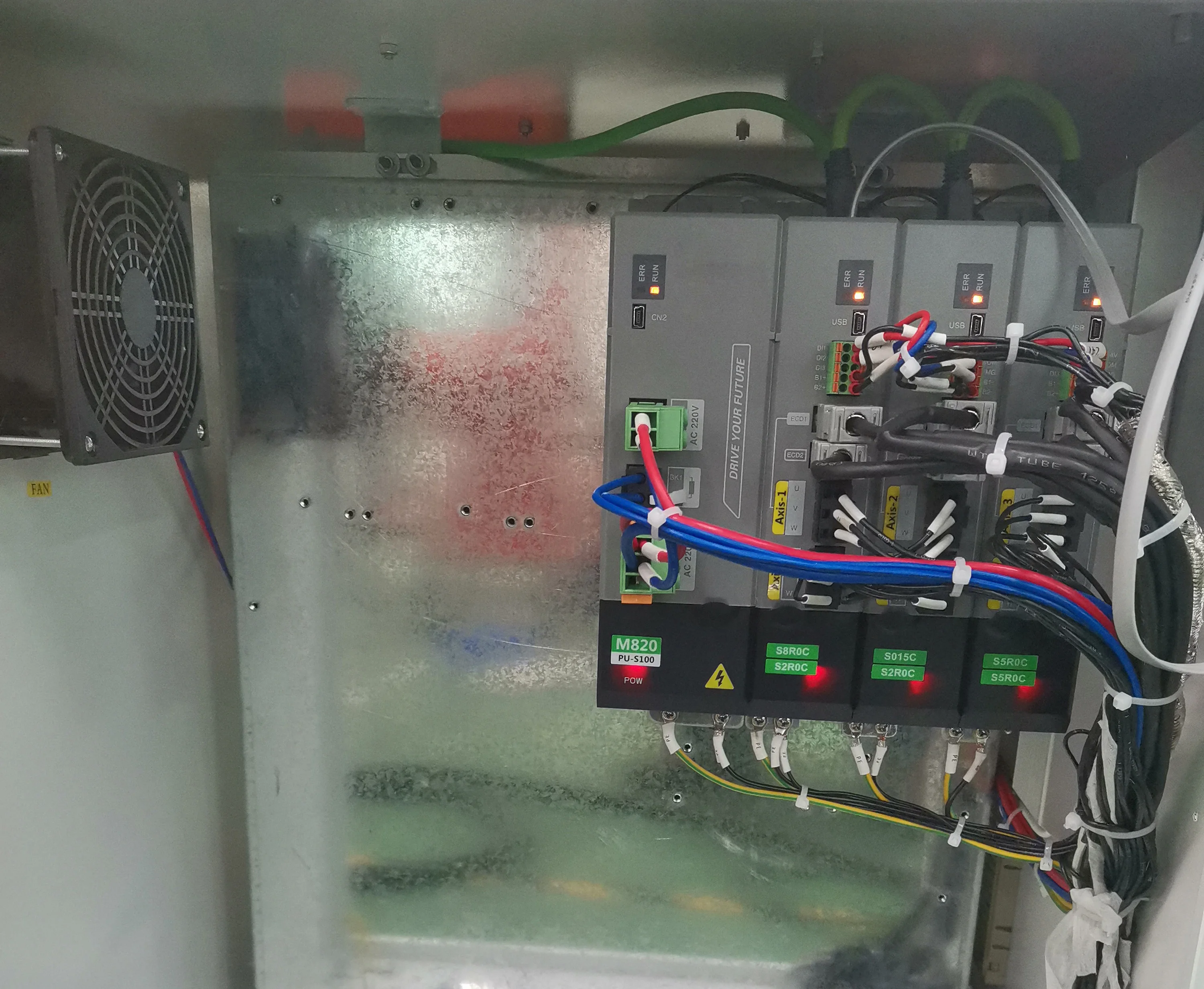

Servo Motor Driver

Control the servo motor by three methods: position, speed and torque

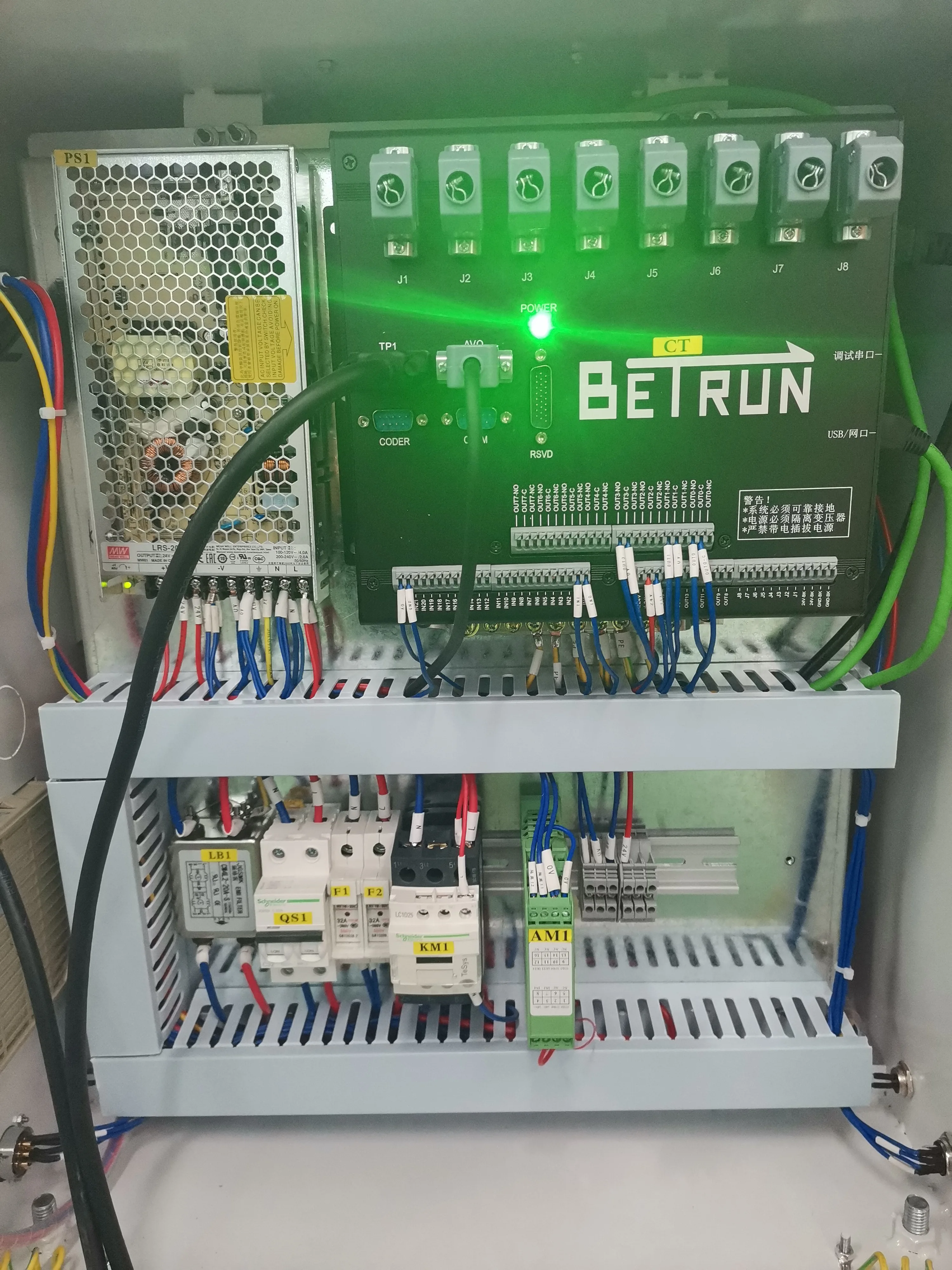

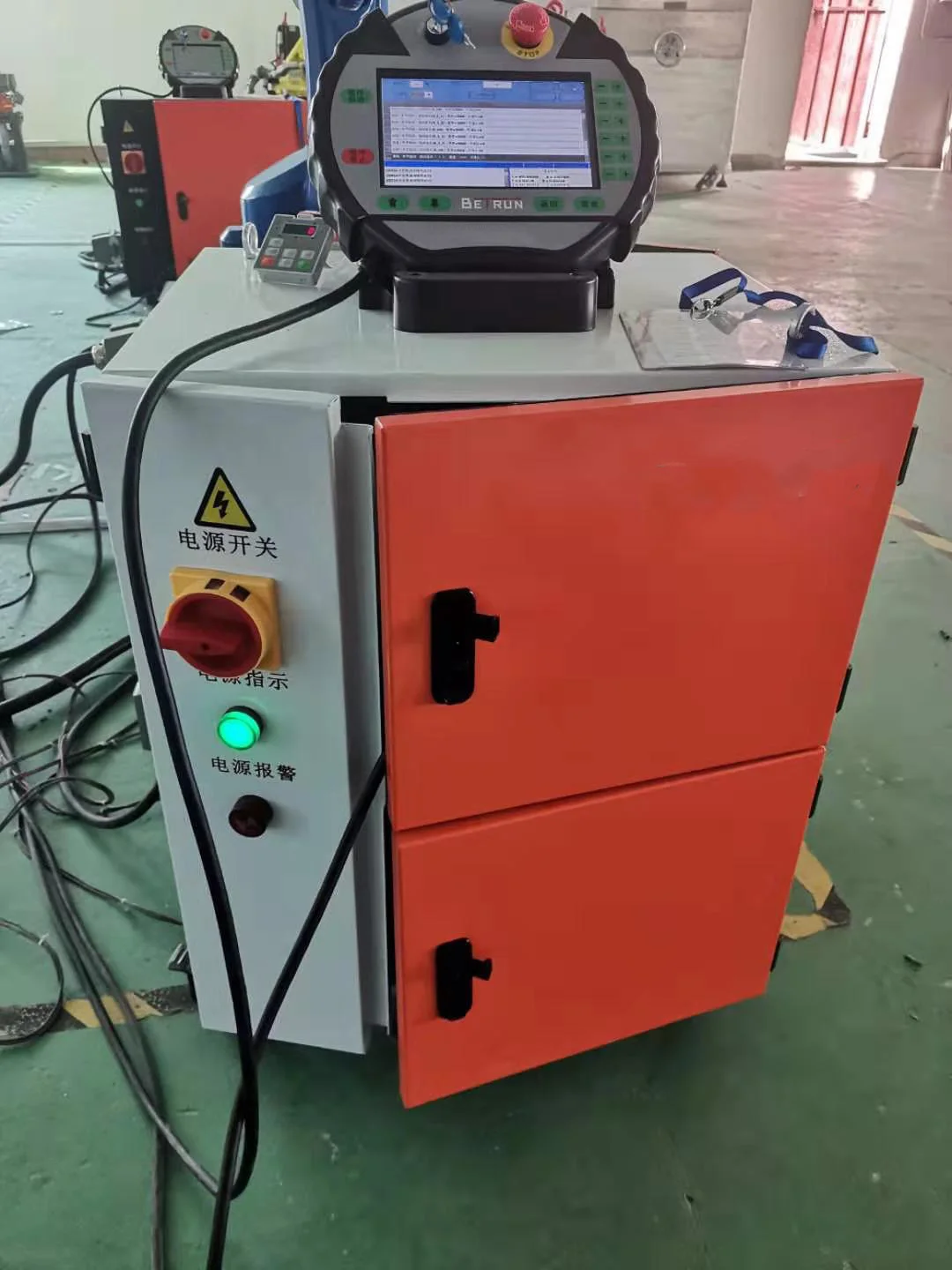

Controller board

Including various interfaces such as IO module, safety module, A / V analog module

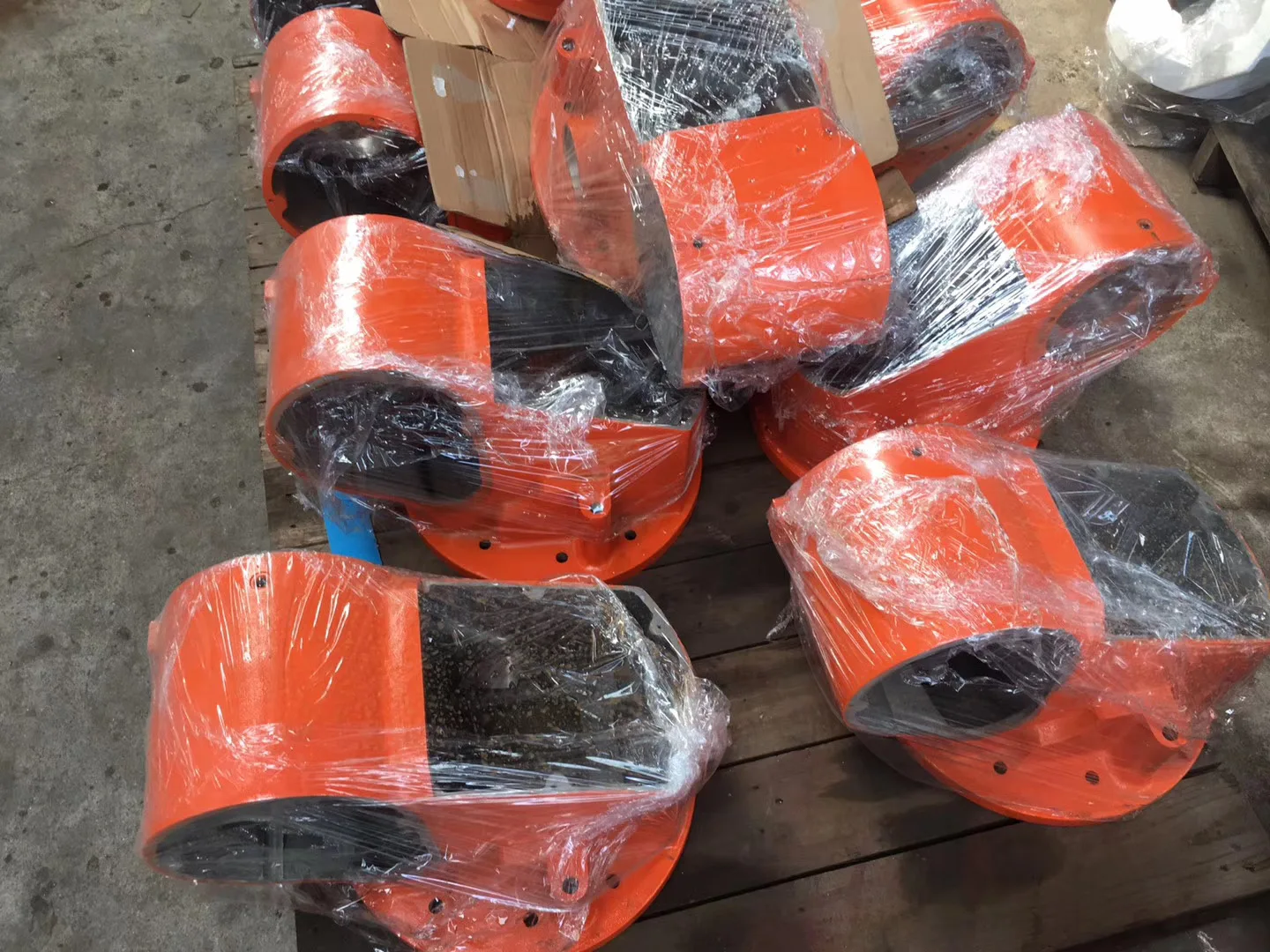

Aluminum Alloy Shell

Independent design, exquisite appearance, CNC machining and casting
Features of Robot Control System
●Structural optimization algorithm suitable for the body control of various types of structure.
●Modular setting of functions
suitable for diverse applications.
●8-axis control realizes the control of external axes (traveling axes and positioner).
●Suitable for multiple increments; absolute servo.
●Open structure for synchronization of international technology and extension
of functions.
●Software PLC functions facilitate logic control.
●Process functions make programming easy. ●Improved computer bus
connection ensures reliability and practicability.
●Safety module ensures safe production of the robots.
●Support change in Chinese, English, Russian, Vietnamese and Korean.
Packing&Shipping
Package: Normally we use the standard exporting packaging. We also can according to clients' request .
Shipping :
1. By Couriers: DHL, UPS, FEDEX, TNT are the main courier we are co-operating at present.
2. By Air: Delivery from the Shenzhen airport to customers' destination city air port.
3. By Sea: Delivery from the Shenzhen sea port .
Related Products

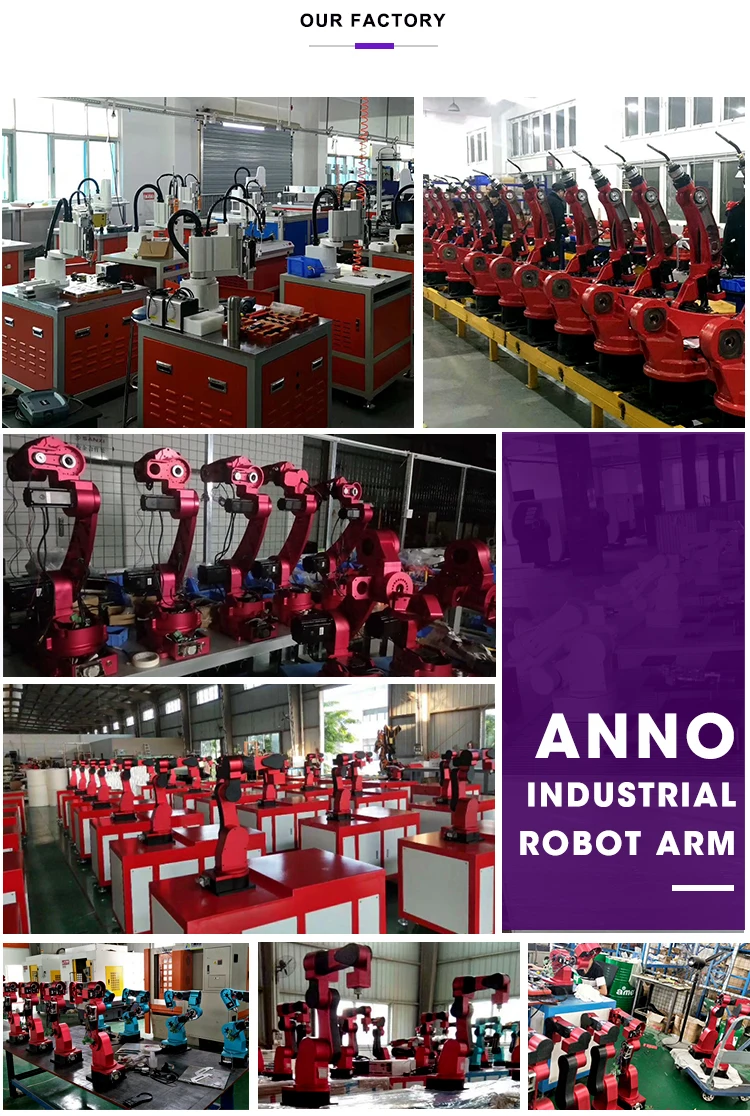

Company Introduction
FAQ
Q1. Are you a trading company or manufacturer?
A: We 're manufacturer.

Q2. What is your MOQ?
A: 1 set.

Q3. How long about your lead time?
A: Our product preparation time is about 7-15 days. If we have robot in stock, we can send out immediately.

Q4. What is your terms of payment?
A: Payment <= 5000USD, 100% in advance. Payment >10000USD, 50% T/T in advance, balance before shippment.
Q5. Can we add our logo on the goods?
A: Yes, we offer OEM service.

Q6:Any warranty for the goods?
A: Normally one year warranty after delivery except artificial damage.

Q7. How to proceed an order?
A: Initially, let us know your requirements or application. Besides, We quote according to your requirements or our suggestions.
Thirdly, customers confirms the samples and places deposit for formal order. Finally, We arrange the production.
