Hot Air Welding Tool Of Seamless Banner Welding Equipments With CE Certificate

Hot Air Welding Tool Of Seamless Banner Welding Equipments With CE Certificate

$5,420.70 USD
$6,775.88 USD $5,420.70 USD
Sale Sold out
Shipping calculated at checkout.
Working Area

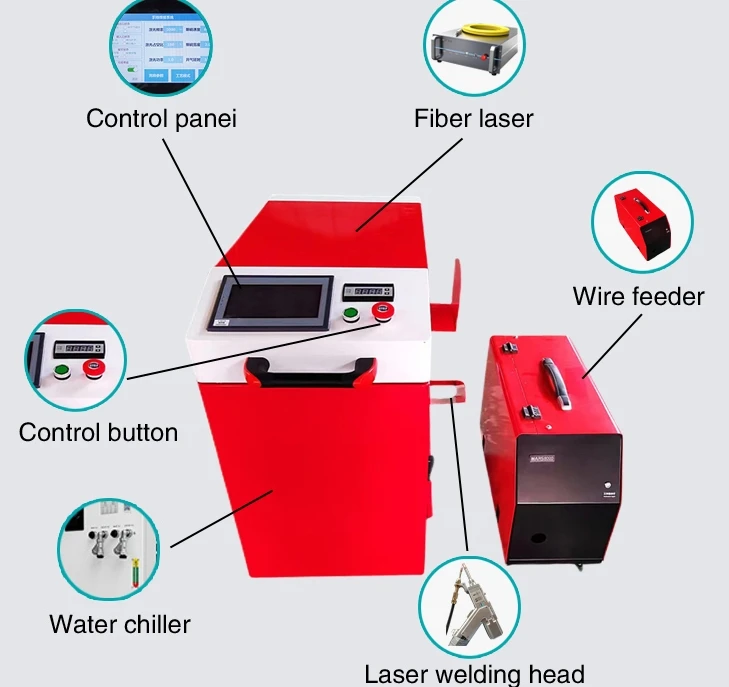

Feature of Machine

1. Nozzle

Customer can change the corresponding nozzle according to different welding processes, and can twist the copper nozzle to adjust the focal length, and the adjustable range of the focal position is ±15mm.


2. Wire Feeding Device:

Lightweight bend wire feeding structure, wire feeding Angle position can be adjusted conveniently.


3. Trachea Interface

Protective gas inlet.


4. Lead Signal Line

It is communicated with copper nozzles. When welding, contact with iron plate ground wire will produce a circuit, which plays a role of safety protection.


5. Protective Lens Mounting Port

The protective lens is equipped with water-cooled structure, so the protective lens can last longer. It is recommended to wipe the dust of protective lens once a day with alcohol-free cotton swab.


6. Circulating Water Channel

Cold water circulating structure is used to cool the reflector and gun body.


7. LCD

Used to show whether the parameters and signal state set by the system are normal.


8. Gun Handle

Aluminum a process, light and light grip comfortable.

After changing the structure of head and the position of the trigger button, it can be  used for both left and right hands.


9. QBH Protective Cover

Connect with the laser end, pay attention to cleaning during installation to avoid dust entering the gun body.


Specification:


Applicable Industries

Sheet metal processing

Railway transportation

Automobiles

Construction machinery

Agricultural and forestry machinery

Electrical manufacturing

Elevator manufacturing

Household appliances

Food machinery

Textile machinery

Tools Processing

Petroleum machinery

Food machinery

Kitchen and bathroom

Decorative advertising

Laser external processing service

Our Service:

  1. 1.5 years warranty for the whole machine. Within 18 months under normal use and maintenance, if something is wrong with the machine, you will get spare part for free. Out of 18 months, you will get spare parts at cost price. You will also get technical support and service all the lifetime.

    Technical support:
    1. Technical support by phone, email or WhatsApp/Skype around the clock
    2. Friendly English version manual and operation video CD disk
    3. Engineer available to service machinery overseas

    After sales services:
    Normal machine is properly adjusted before dispatch. You will be able to use the machine immediately after received machine.
    Besides, you will be able to get free training advice towards our machine in our factory. You will also get free suggestion and consultation, technical support and service by email/WhatsApp/tel etc    .

Package

1.Outside package: Strong wooden case.
2.Inner package: Water-proof plastic film package with foam protection in each corner Solid Seaworthy Wood Box Package.
Fumigation-free packaging size:103*65*126cm (could ship via air)
Total weight:175KG

FAQ

1. What's material can fiber laser weld?
All kinds of metal, such as Stainless Steel,Carbon Steel, Mild Steel, Galvanized Steel, Aluminum, copper, etc.

2.Which fiber source does we applied
Raycus- Made in China;
RECI - Made in China;

3.What's the thickness of a laser Welding Machine could weld?

1000W could weld Stainless Steel and Carbon Steel Up to 3mm, Aluminum and Brass to 1.5mm.
1500W could weld Stainless Steel and Carbon Steel Up to 5mm, Aluminum and Brass to 2mm.
2000W could weld Stainless Steel and Carbon Steel Up to 7mm, Aluminum and Brass to 4mm.

How to place a order:

contact me for more details thanks.
