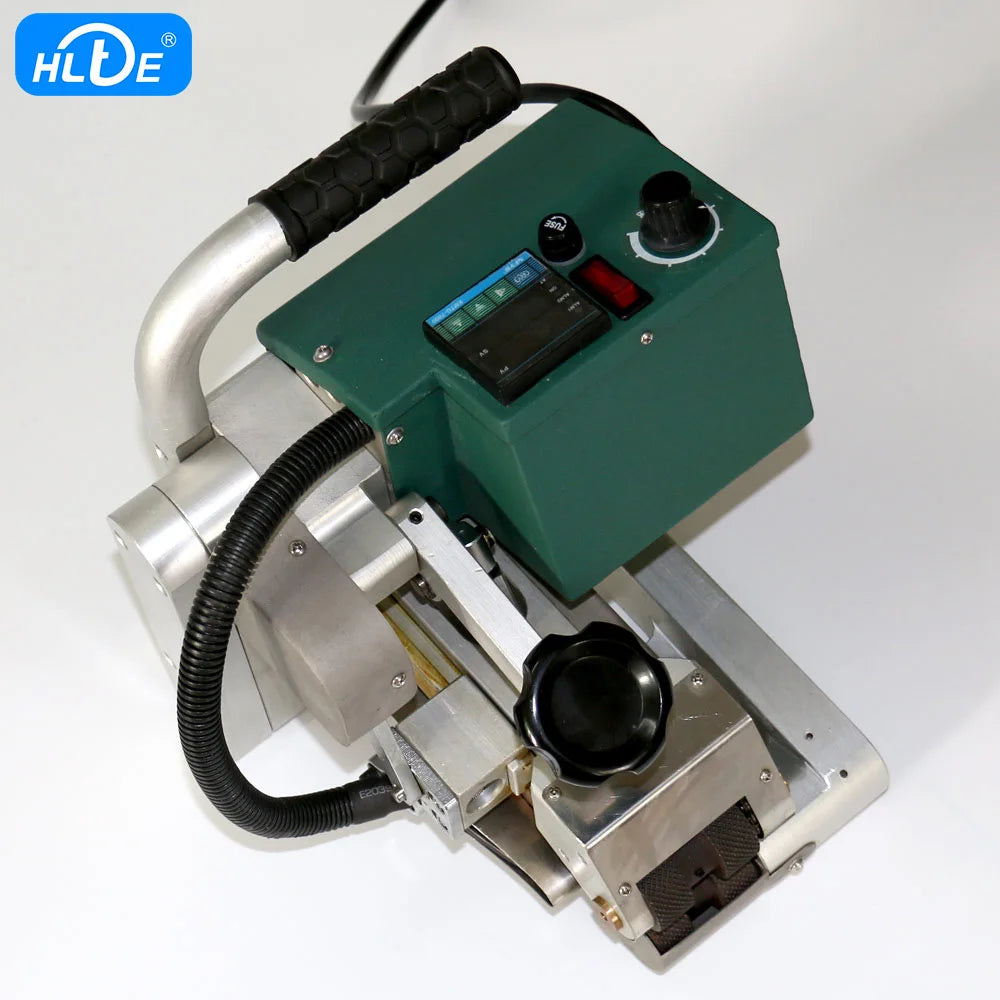

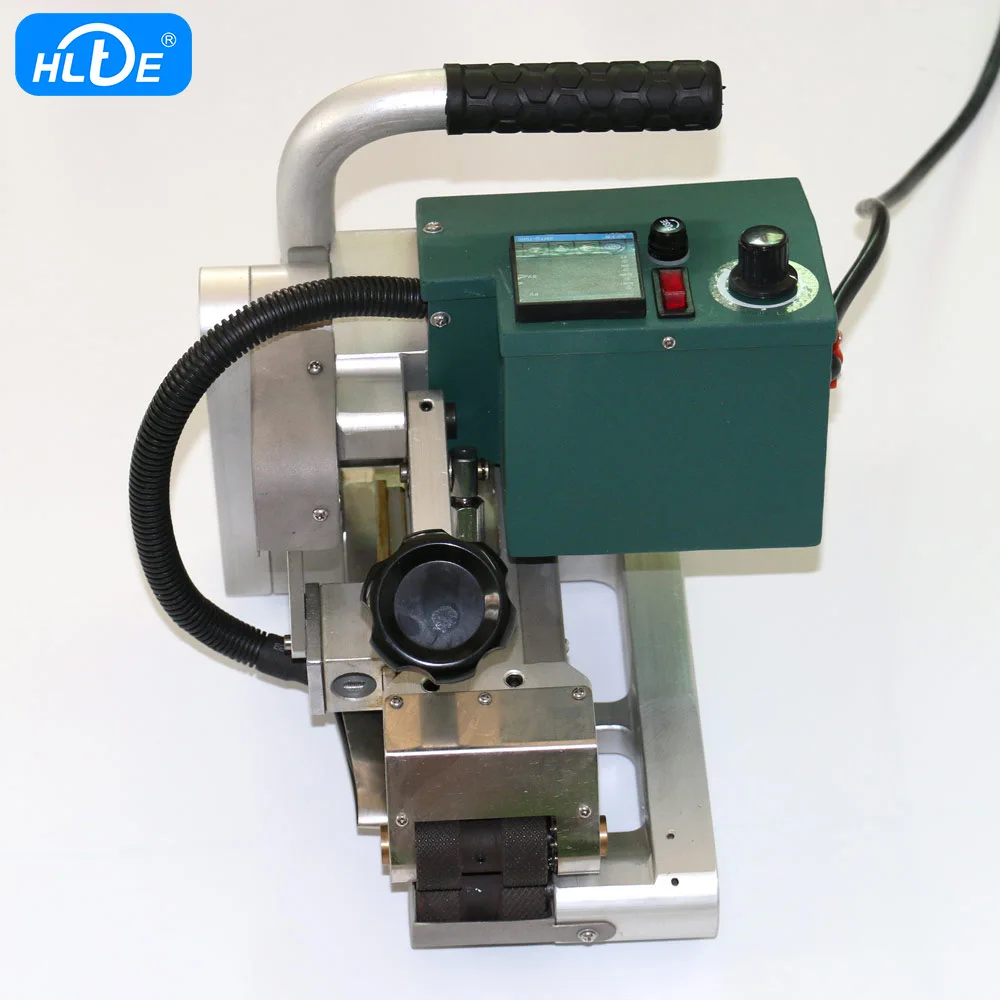

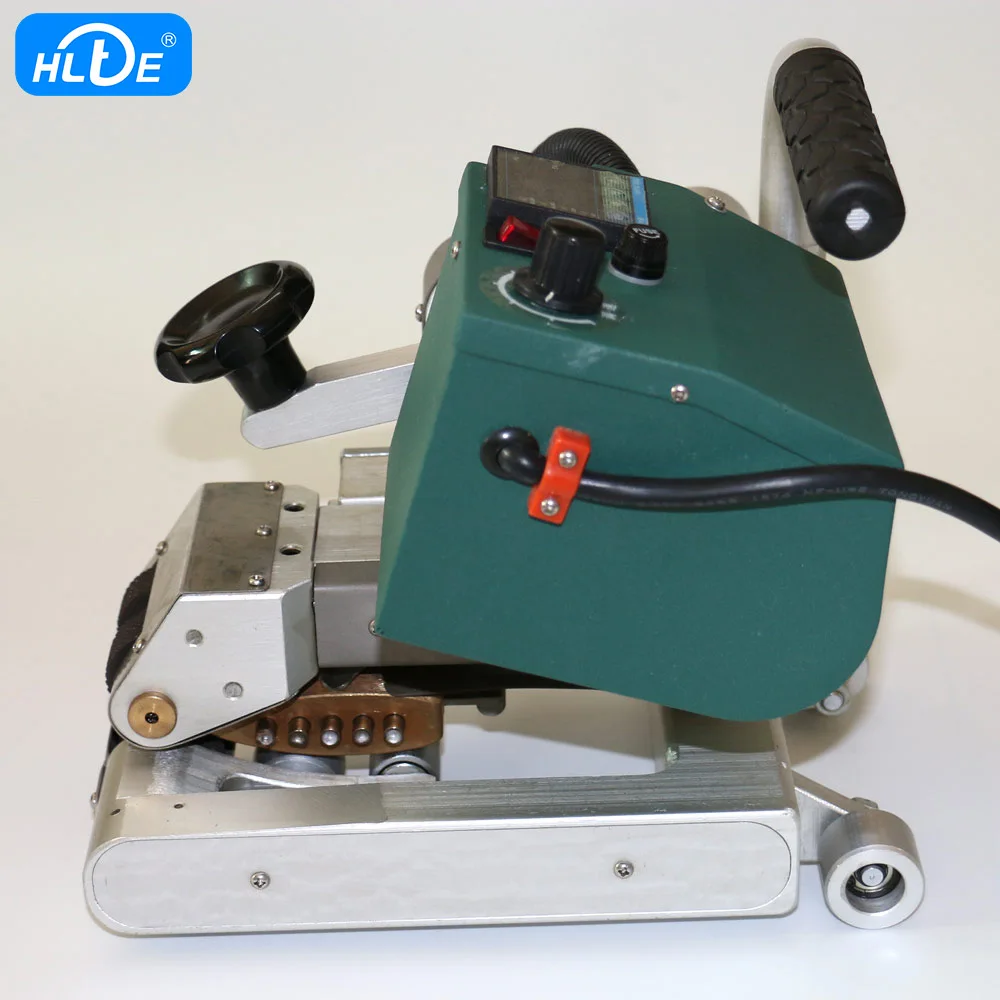

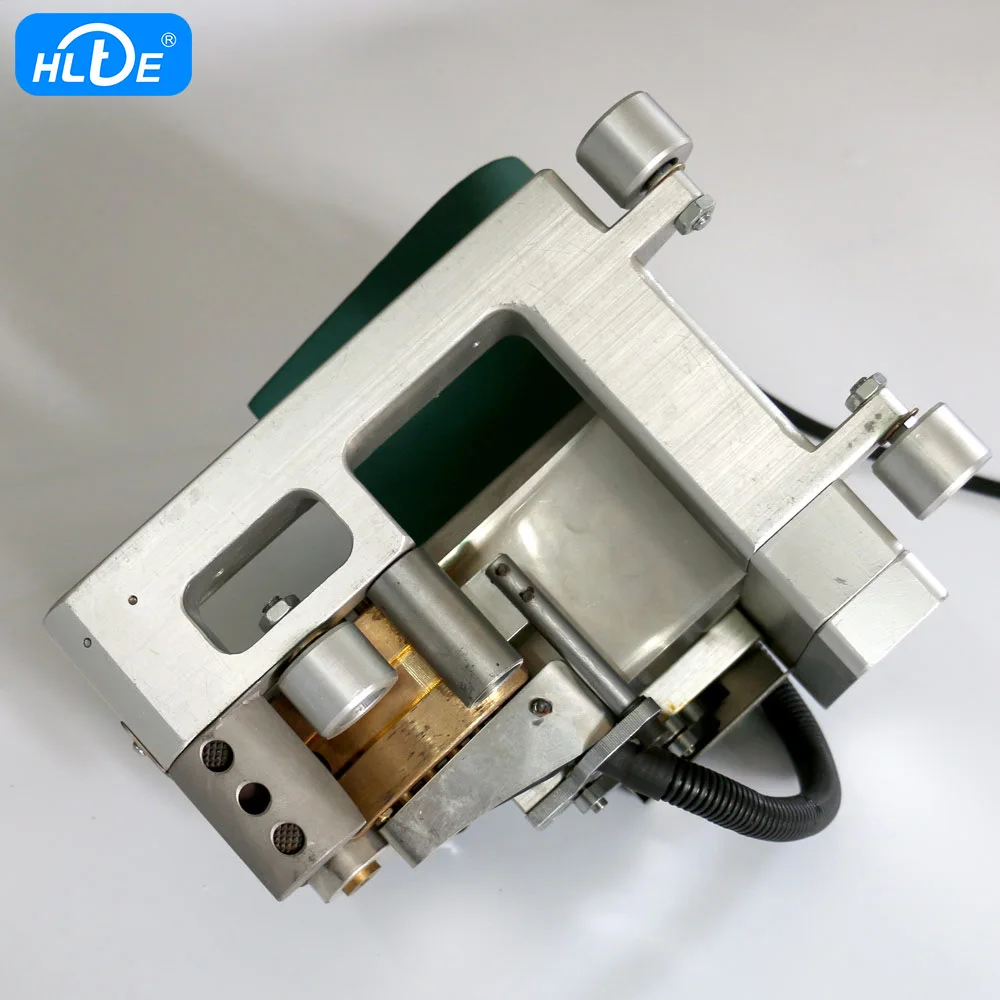

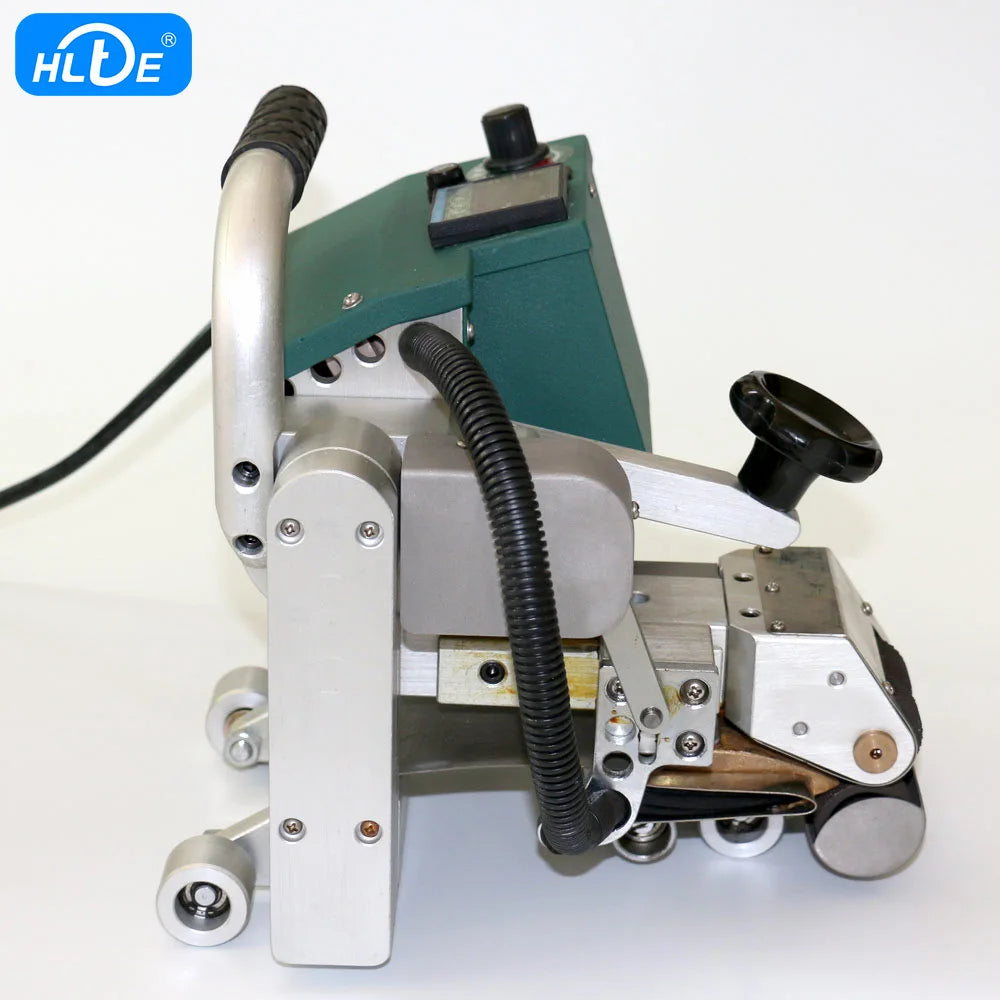

HLTE 1800W Dual Digital display geomembrane plastic welding machine equipment hot wedge welder

HLTE-1800 Geomembrane welding machine/Hot wedge welder/Automatical overlap membrane welder

High Power ! Special for thick membrane 1mm-3mm !

Wedge Welder uses a heated platen inserted between 2 or more thermoplastic materials to fuse or heat seal the plastics. Movement is translational. Heat sealing is caused by following the heated platen (or heated wedge) with a roller pressure means.

Simple, reliable operation and field tested electronic.

HLTE-1800 is designed for the most demanding jobsites in Landfill, Ponds-, Civil Engineering- and Tunnel constructions.Thermoplastic welding for the Geosynthetics Industry.The welder can weld geo-membrane of various thickness and are applicable for welding of all thermal-fused material such as LDPE, PVC,HDPE, EVA, PP.extensively used in engineering projects such as expressways, tunnels,reservoirs, waterproof of construction and so on

- wedge welding machine for HDPE Membranes
- welding HD-PE, LD-PE, PVC and TPO lining materials

Technical data:

Power (P): 1800W

Welding speed (V): 0--5m/min

Heating temperature (T): 0-500℃

Thickness of material to be welded: 1mm-3mm

Overlap width: 120mm

Welding width: 17mm×2, interior cavity 16mm

Seam strength: ≥85% base material (tensile resistant in shear direction),

Net Weight: 9Kgs

Insulation class: class II

Precautions

1). For correct operation, please carefully read this instruction.
2). Use with grounded 3-cords mains cable and socket (socket with 10A capacity. On the corresponding welder, phase L connected to live wire, N to zero line, phase =to grounded protection line), plug will not be modified without prior permission.
3). For good welding quality, please assign specified personnel for operation.
4). Pressure roller will not engage on free running.
5). Do not operate when it is exposed to water to prevent inferior quality.
6). The machine has been regulated before leaving factory. Please do not adjust it at will.
7). Circuit board in control box is live with electricity, do not remove it without prior notice to authorized personnel.
8). Preheat for 30 minutes before start up if machine has been long unused or exposed to moisture.
9). Modifications may be made for continuous improvement, without prior notice.
