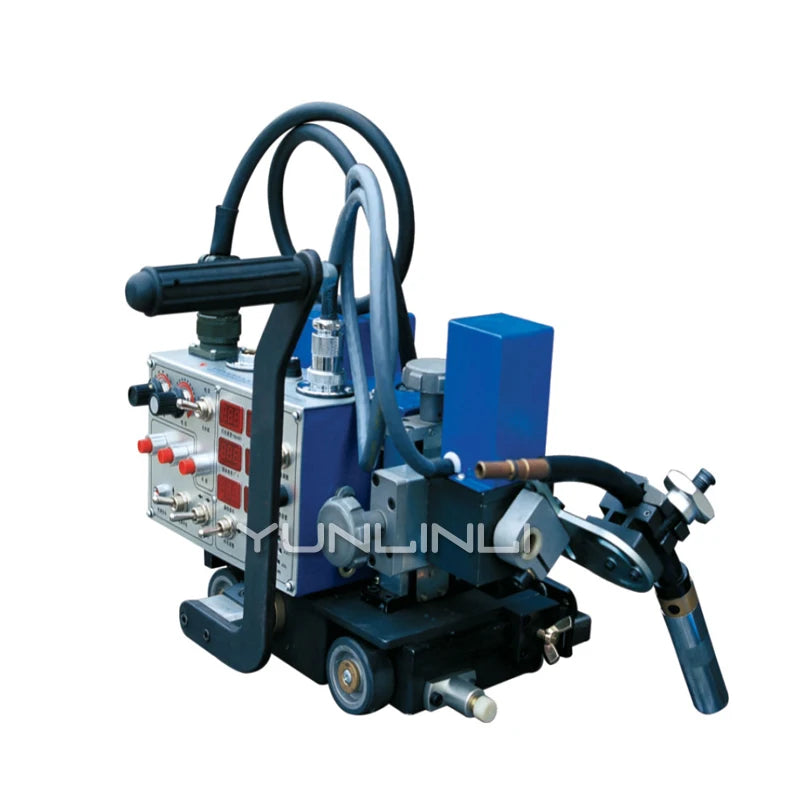

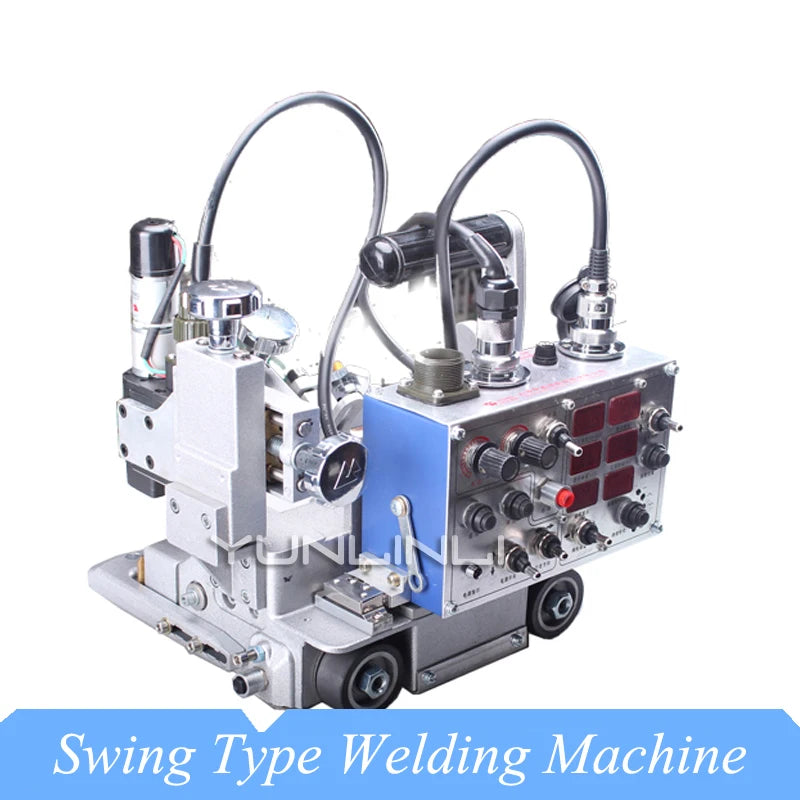

HK-5W Swing Automatic Welding Trolley 220V Rubber Wheel Four-wheel Drive Fillet Welding Machine Equipment

HK-5W Swing Automatic Welding Trolley 220V Rubber Wheel Four-wheel Drive Fillet Welding Machine Equipment

$1,722.60 USD
$2,153.25 USD $1,722.60 USD
Sale Sold out
Shipping calculated at checkout.











The main technical parameters

1. Dimensions: 430 × 280 × 290 mm

2. Machine weight: 12Kg (including swinger)

3. Input voltage: AC220V 50HZ

4. Swing motor: DC24V

5. Drive mode: rubber wheel four-wheel drive

6. Welding speed: 150 ~ 1900mm / min

  7. Welding gun adjustment range
          Up and down: 40mm

          Front and rear: 40mm

          Working angle: ±45°

          Carry out angle: 10°

8. Swing parameters
         Left and right stay time: 0 ~ 2.5S

         Offset distance setting: 0 ~ ± 8 °

         Swing speed: 0 ~ 100

         Swing angle: ±15°



  Welding parameters/Wire diameter!  Φ1.2mm  Φ1.4mm  Φ1.6mm
   Current (A)   flat welding  120-300  150-380  180-430
  Flat fillet welding  120-280  150-320  180-380
 Horizontal welding  120-280  150-300  180-330
 Voltage (U)

1) U=14+0.051

2) U=0.041+16±1.50 when 300A or less

3) U=0.041+20±2.0 when 300A or more
 Distance between nozzle and workpiece (H)

1) When 200A or less H=10～15mm

2) When 200~350A, H=15~20mm

3) When 350~500A H=20~25mm
 Wire extension length (L)     Generally take about 10 times the diameter of the wire, that is, L=10d
