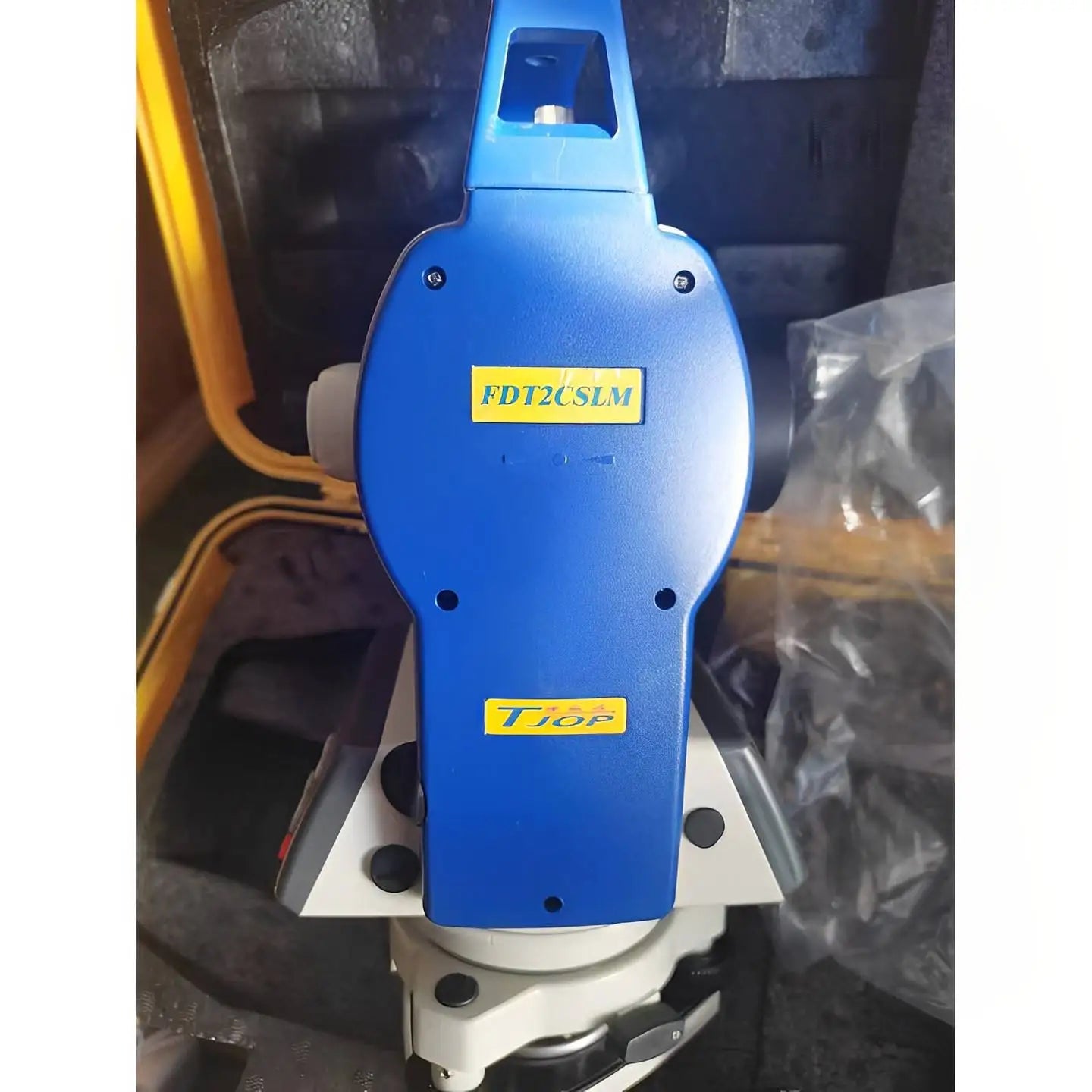

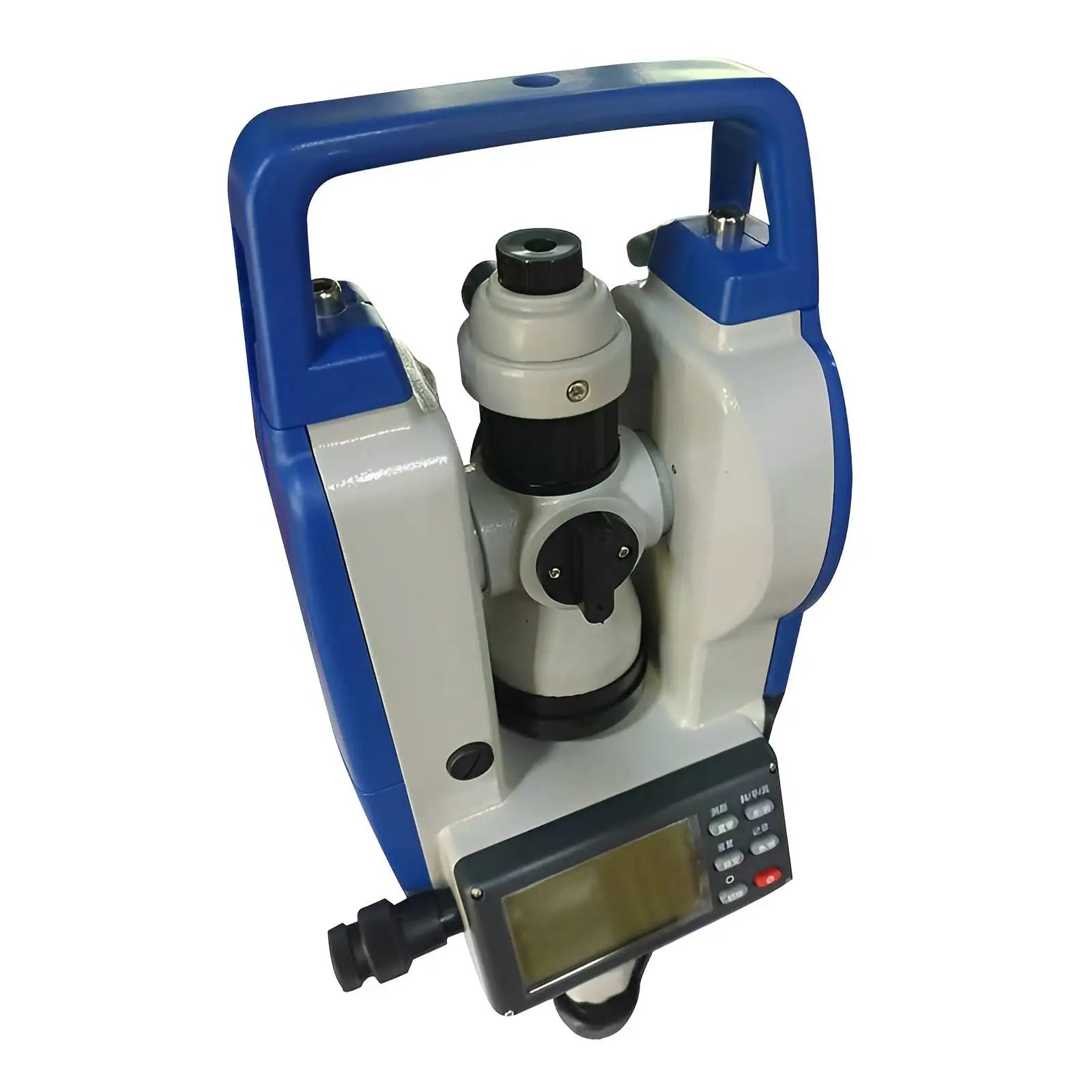

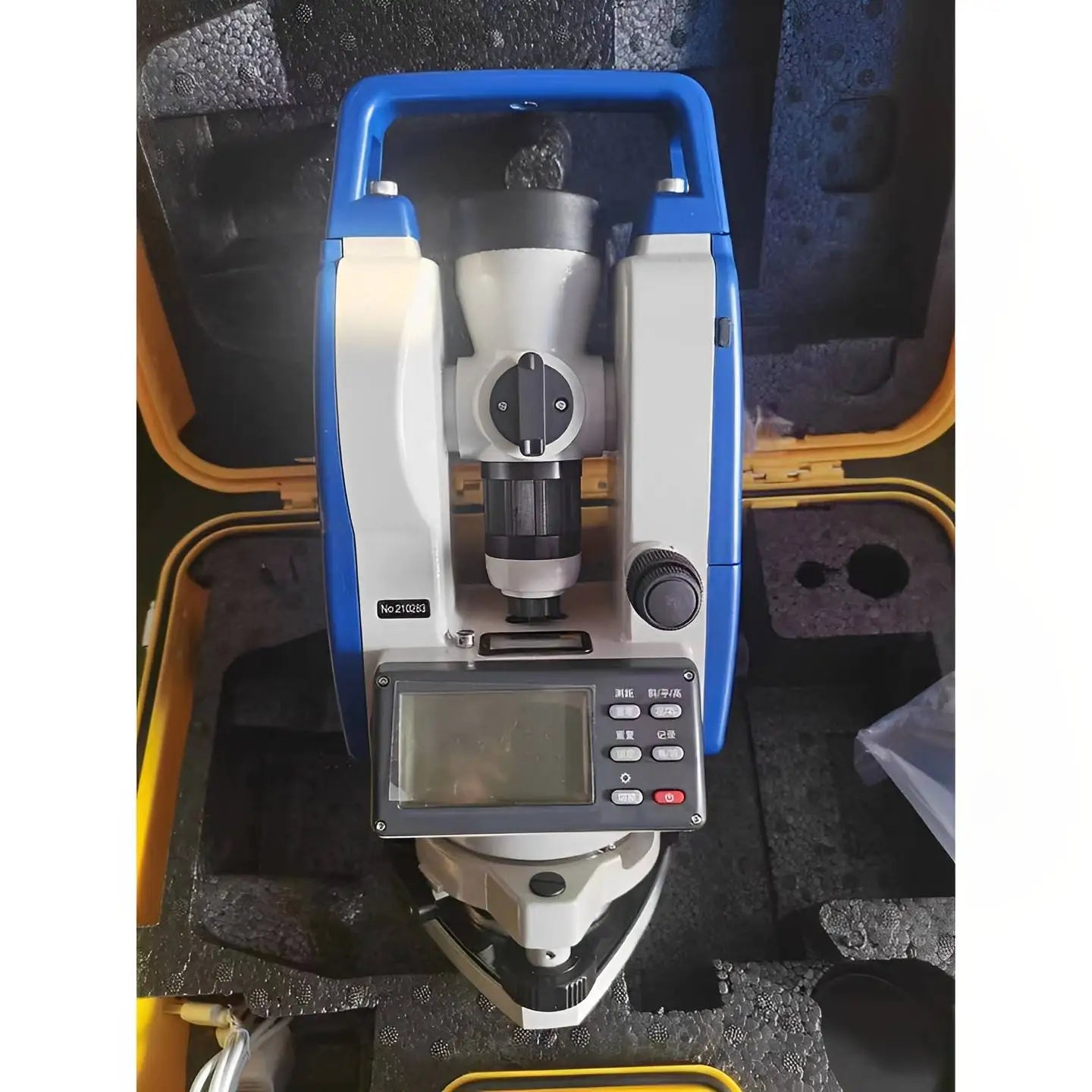

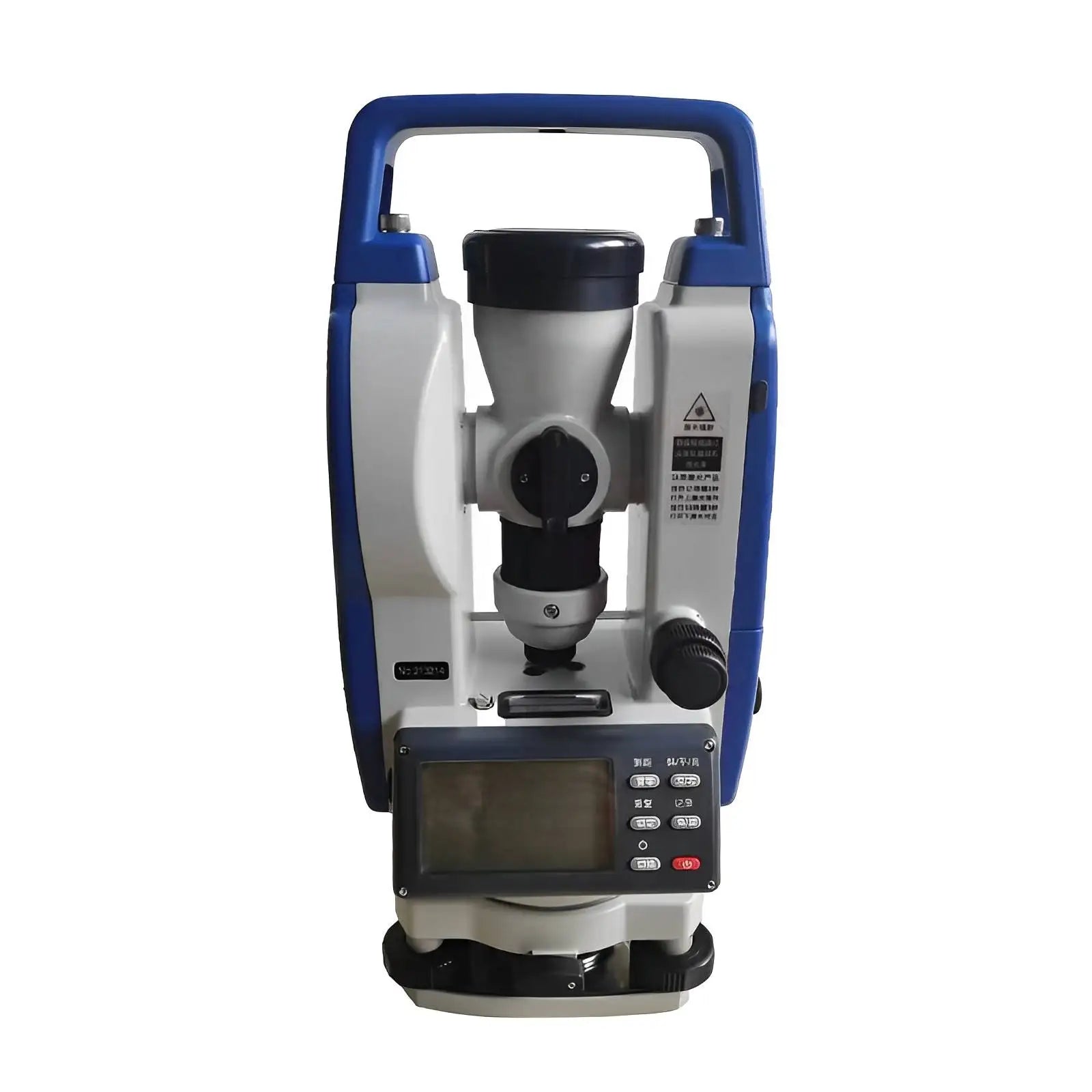

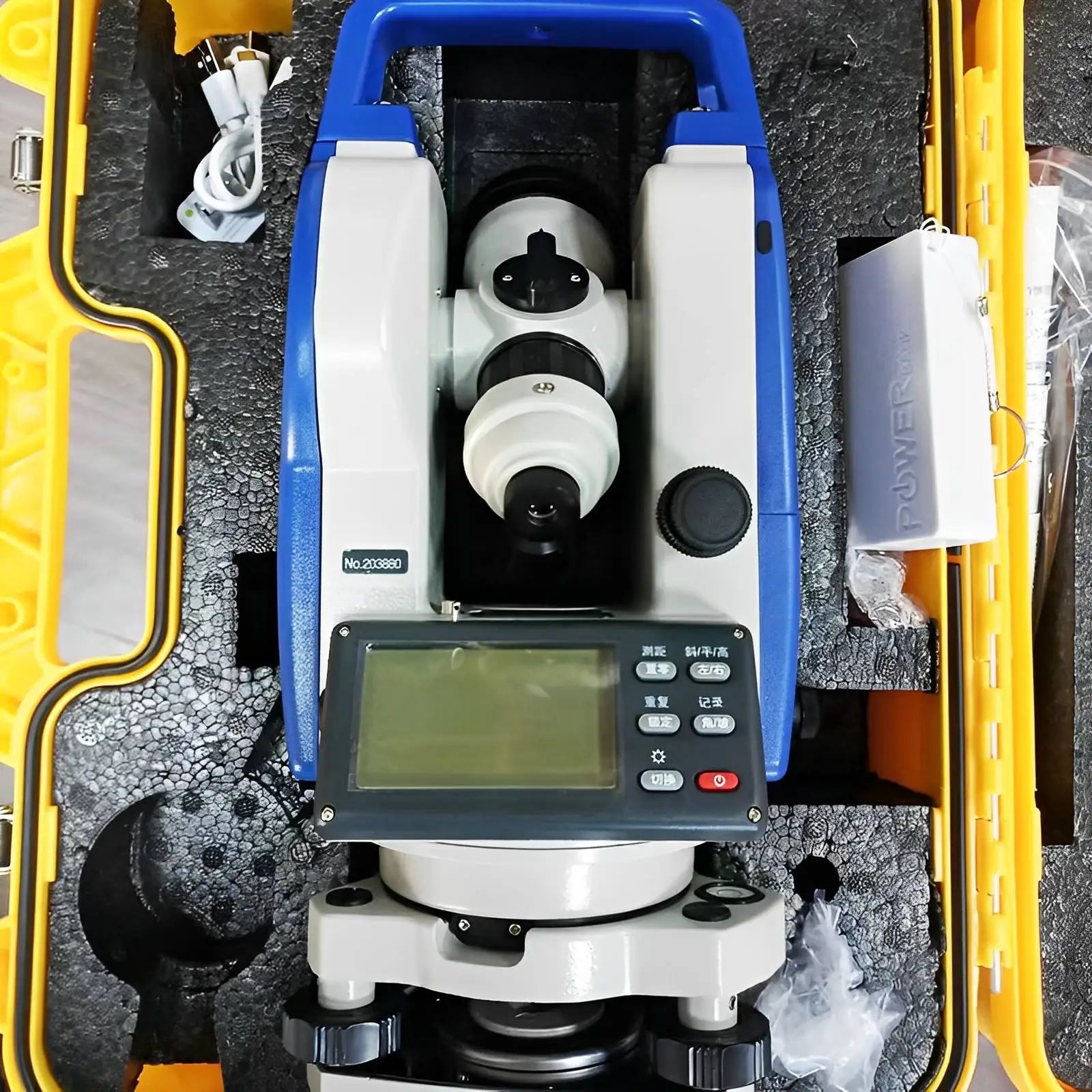

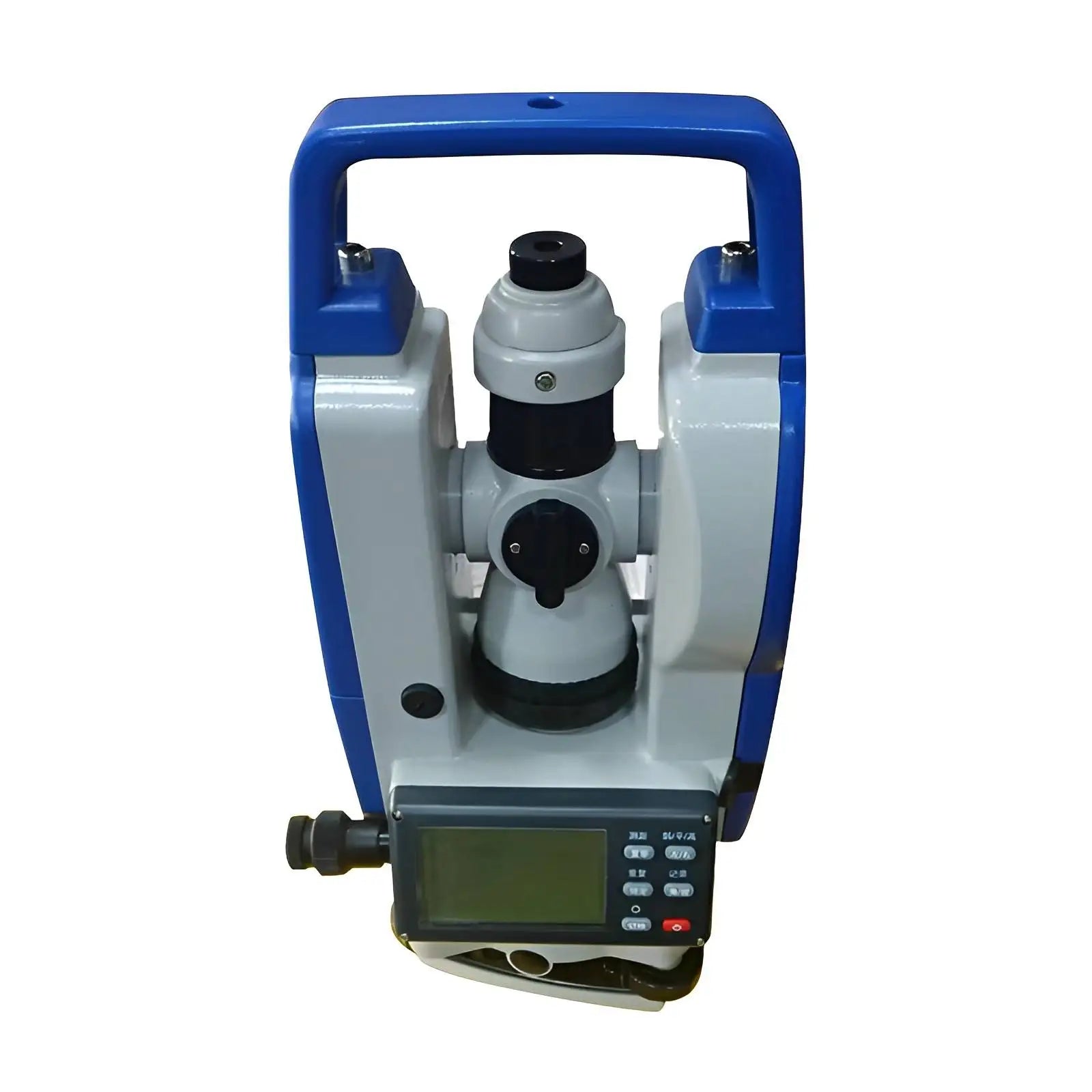

High precision measuring tool surveying instrument laser digital cheap optical theodolite

High precision measuring tool surveying instrument laser digital cheap optical theodolite

$1,309.54 USD
$1,611.74 USD $1,309.54 USD
Sale Sold out
Shipping calculated at checkout.
Products Description
Product Paramenters
Model
FDT2CAM
Telescope

Barrel length
156mm
Imaging
Front view
Objective lens aperture
45mm
Magnification
30X
Resolution
3.5''
Field of view
1°30''
Minimum Distance of View
1.3m
Distance multiplied by a constant
100
Sight distance plus constant
0
Goniometric section

Measurement method
Absolute code
Reading method
Horizontal dial: opposite diameter
Vertical dial: single sided
Minimum reading
1"/5"
Accuracy
2"
Display screen
Double-sided display
Compensator

Tilt sensor
Available
Compensation range
±3'
Communication port

Communication standards
RS232C
EDM communication interface
Yes
Data output interface
Yes
Memory points
500 points
Counterpoint

Imaging
Positive Image
Magnification
3X
Field of view
5°
Focusing range
0.5~
Spotter accuracy
±1mm
Base

Base Type
Removable base
Power supply

Battery
Rechargeable / AA alkaline batteries 4 pcs
Operating time
Approx. 20 hours
New features
Laser Vision
Built-in battery
Other

Operating temperature
-20°C~+50°C
Net weight of the instrument
4.8kg
Note: Each Set Includes $428/Mainframe, $29/Stand
