Specification
Name: Medium and high frequency induction heating machine
Model: ZDBT-2/1500W; ZDBT-4/2500W; ZDBT-6/3000W; ZDBT-8/6000W
Voltage: 220V
Ultimate power: 1500W/2500W/3000W/6000W/2000W/4000W

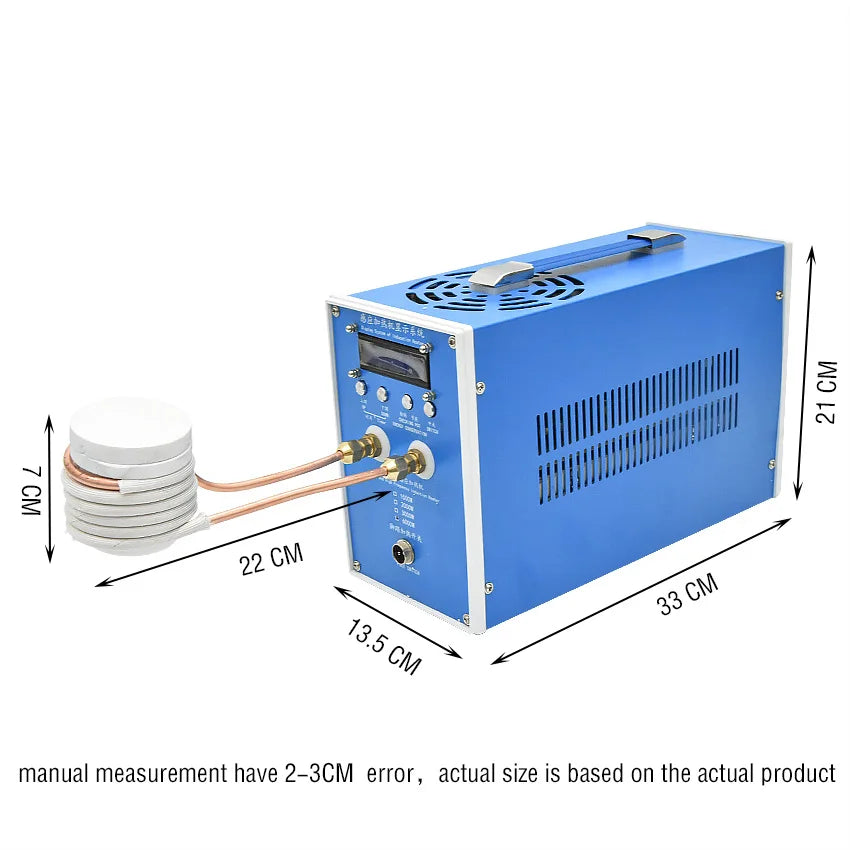

Product size: 330*140*210mm
Function :
With short circuit and overload protection
Water shortage and water temperature protection
Adjustable cycle heating time
Energy saving function with pot inspection
With foot pedal and button heating switch

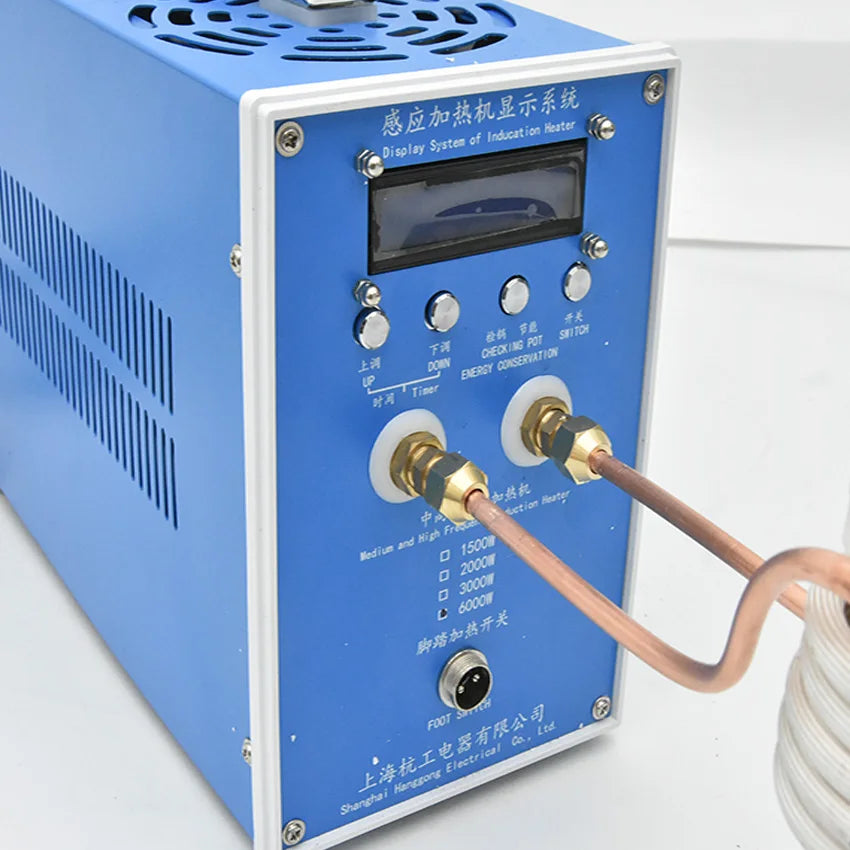

Voltage, current and power display
Crucible and tongs for smelting metal
Advantage:
Complete accessories, ready to use!
Various heating coils can be customized
One-click inspection of the pot, no heating without putting things.
Automatic power adjustment can make the temperature of the heated object higher
and automatic adjustment.
Small size, easy to carry, strong heart, first-class efficiency

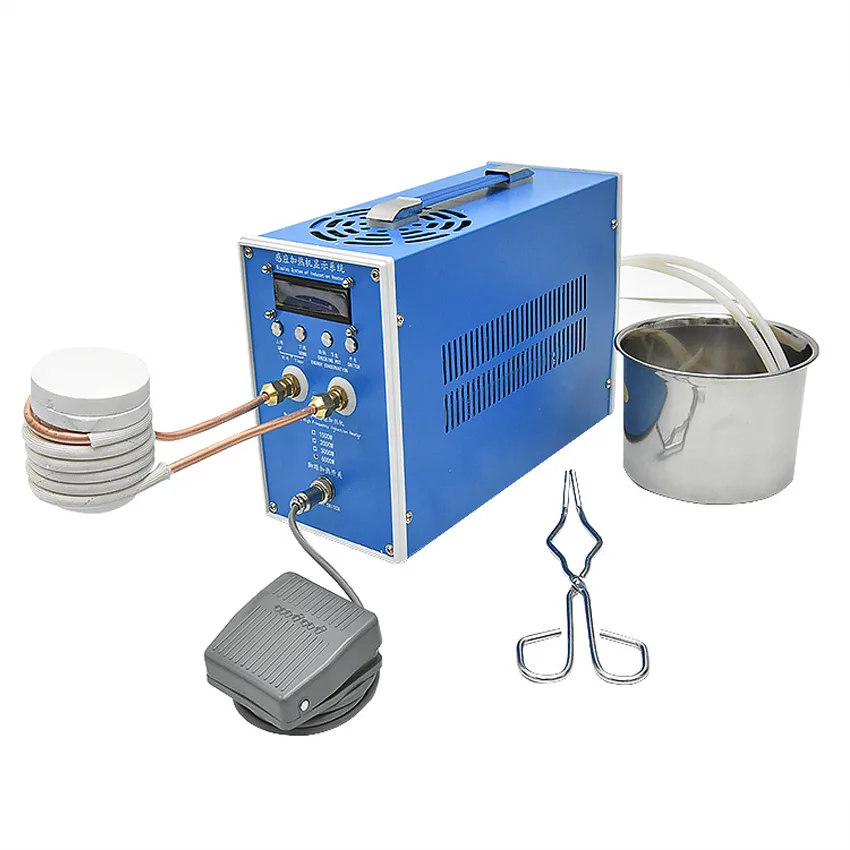

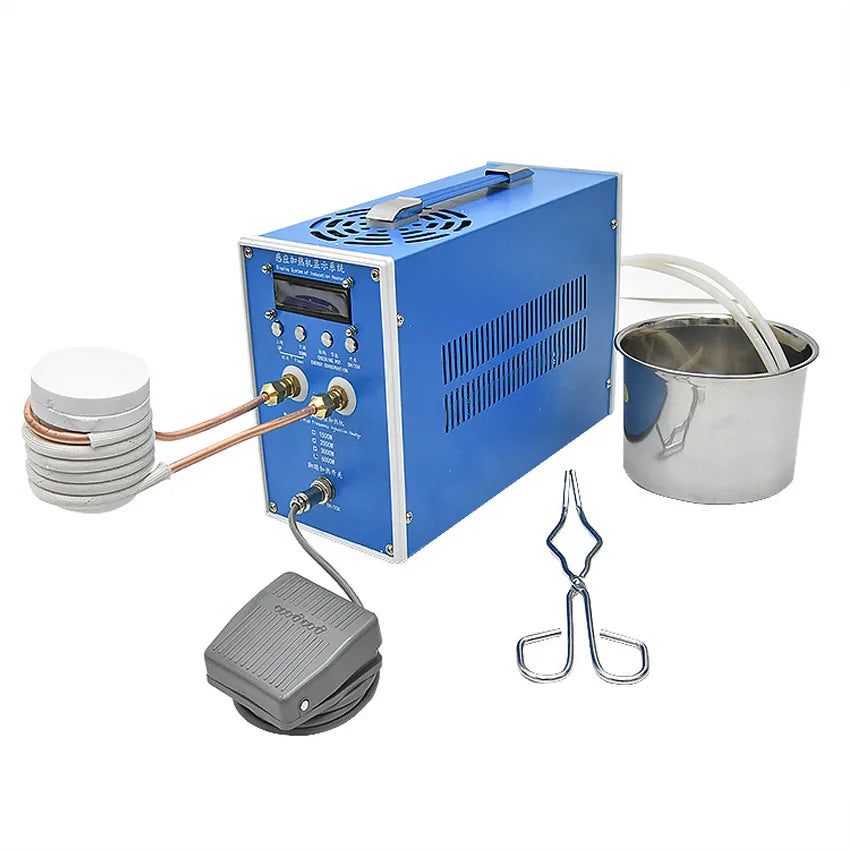

Accessories:
Host*1

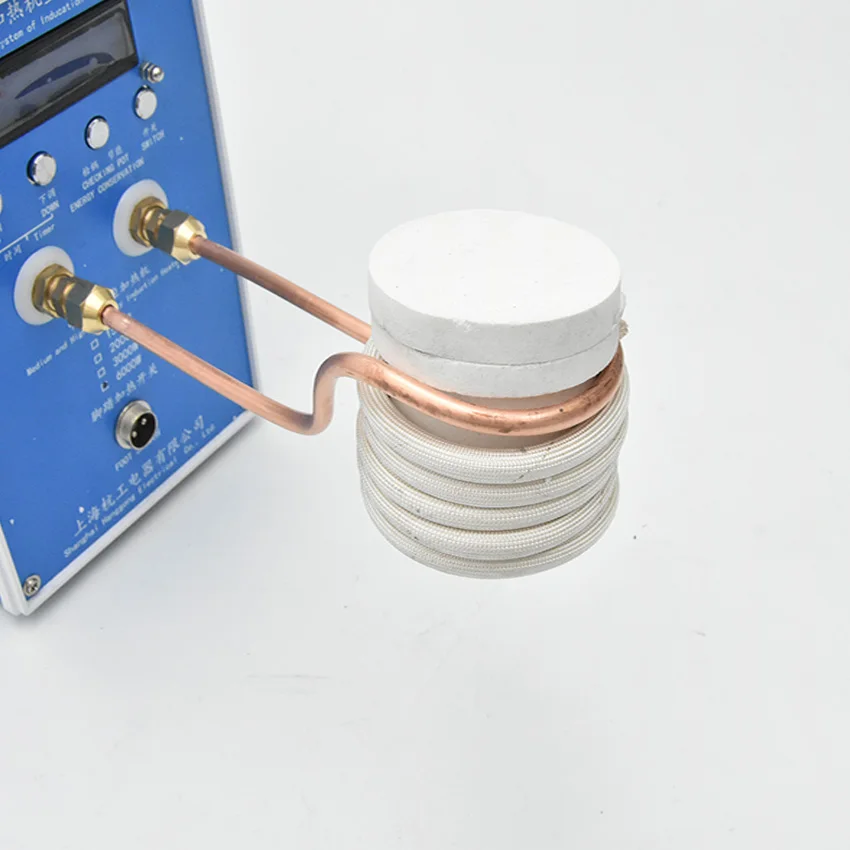

Copper ring*1
Foot switch*1
Cooling cylinder*1
Graphite quartz crucible*1
Clamp*1

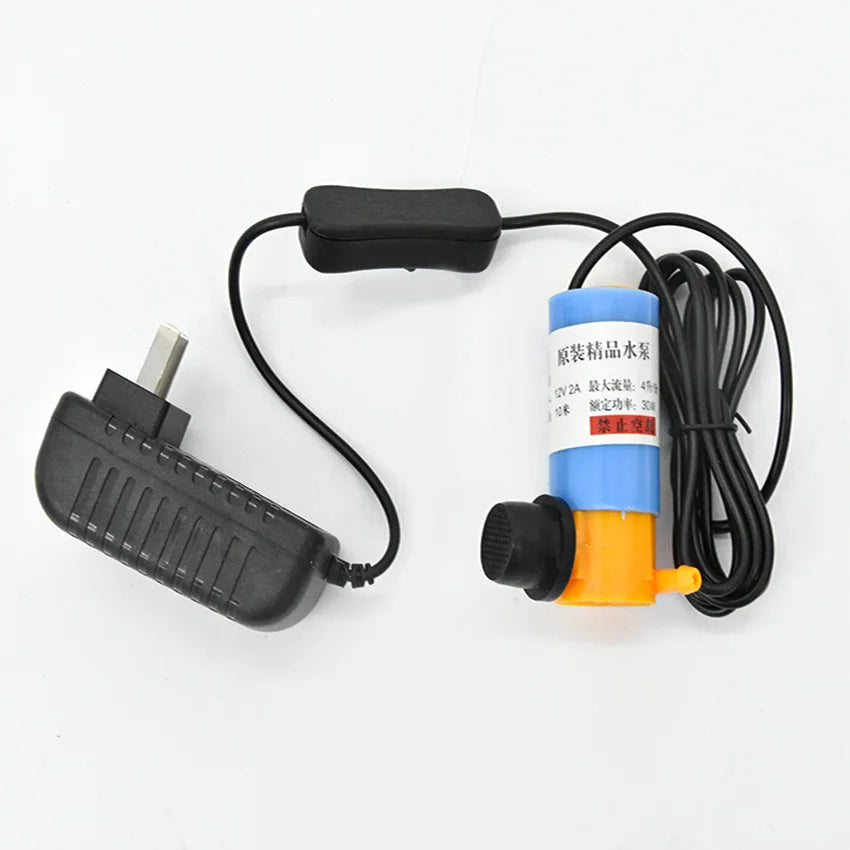

Water pump*1
Note:
The video shows the operation of the old model,

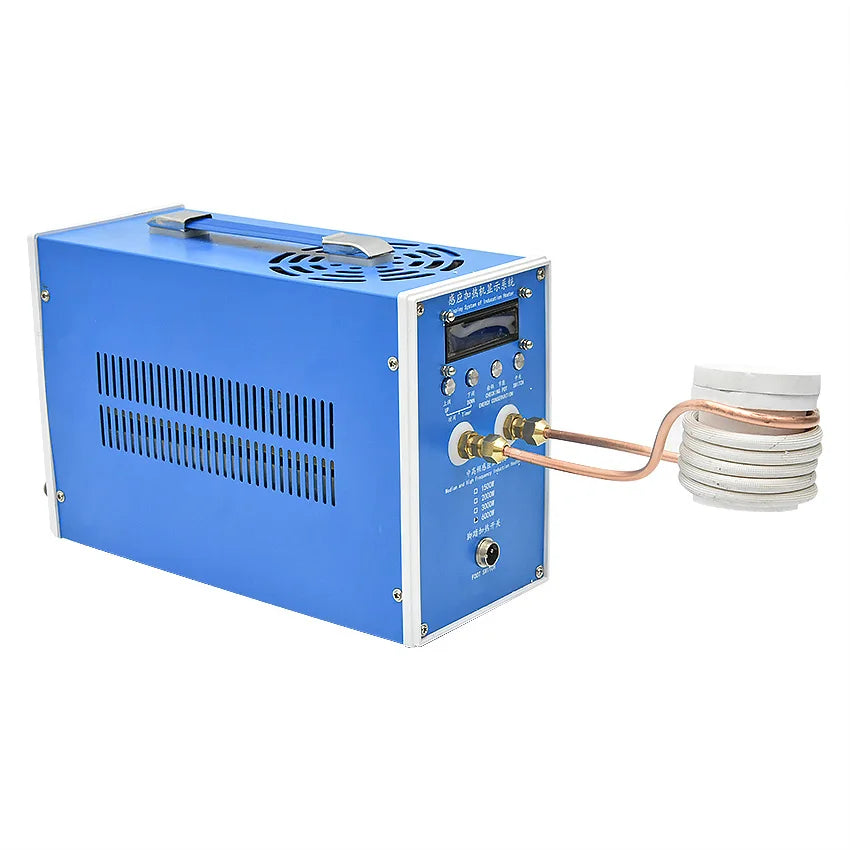

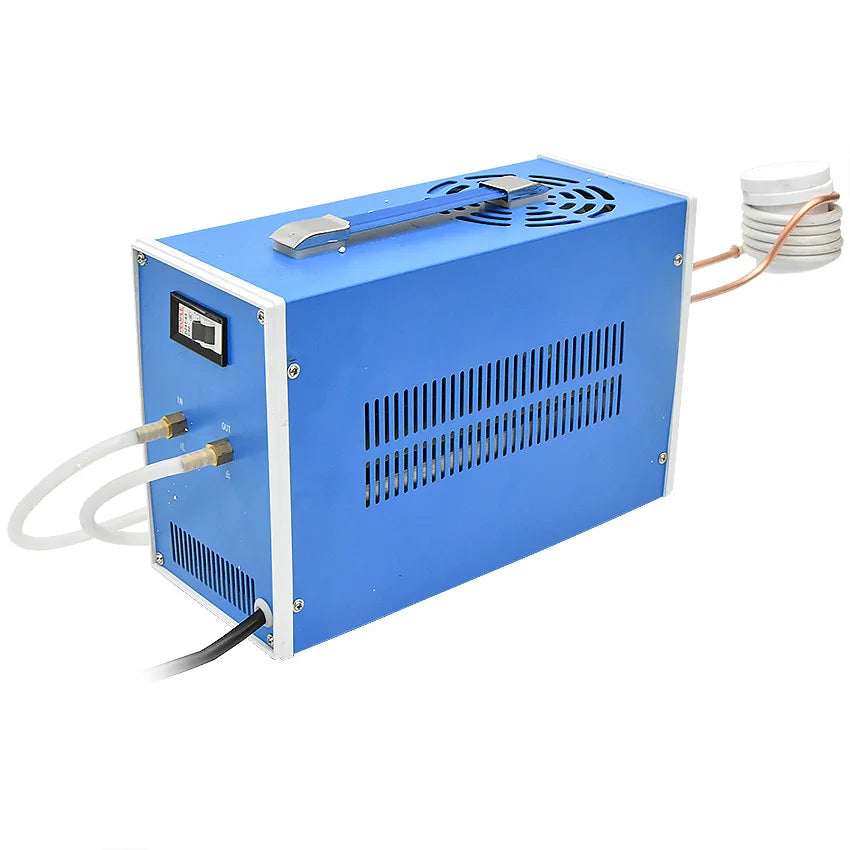

we are selling the new model (Appearance as the picture shows),
but the working principle of the two is the same
Picture showing
Operation steps
1. Tighten the induction copper ring with a wrench and adjust the direction.
2. Pour 3/4 of clean water into the stainless steel water tank, and install the silicone tube to the
water inletand outlet on the host, and then put it into the stainless steel water tank.

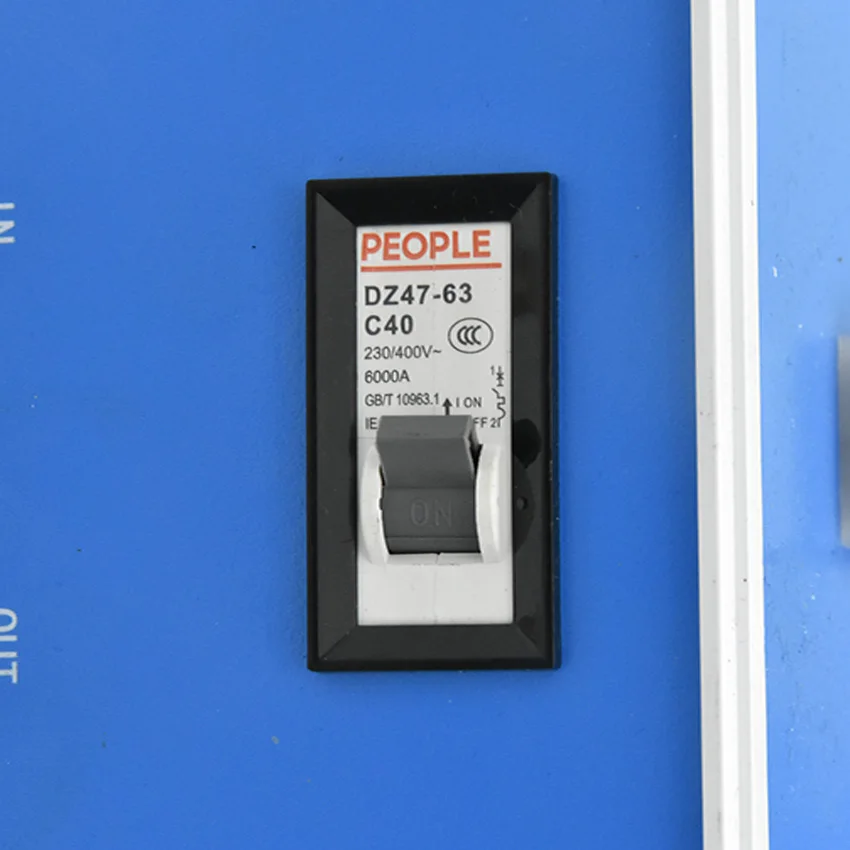

3. Connect to 220V household electricity, push on the circuit breaker switch and the internal fan
is working.After the water pump is pumped, check whether there is water leakage at the interface.
If there is waterleakage, use a wrench to tighten (not too much attention).
4. If it is with a crucible, put the crucible into the copper ring and push on the automatic heating
switch orfoot switch to start heating. Note that after heating is completed, use crucible tongs to
clamp out the cruciblebefore turning off the power. If it is a heating iron, you can first press the
automatic heating switch or the footswitch and then put the iron into the copper ring to heat it.
5. After the heating is completed, remove the crucible or heating object first, then take out the water
pipeto drain the water inside the copper pipe, disconnect the circuit breaker, and finally unplug
the power supply.
