HDPE PFE315B Automatic Electro Fusion Welding Machine For Electrofusion Fittings Welding Equipment

HDPE PFE315B Automatic Electro Fusion Welding Machine For Electrofusion Fittings Welding Equipment

$1,151.78 USD
$1,441.98 USD $1,151.78 USD
Sale Sold out
Shipping calculated at checkout.

HDPE PFE315B Automatic Electro Fusion Welding Machine For Electrofusion Fittings Welding Equipment
Product Description



Thermofusion Welding Machine PFE315B Electrofusion Machine HDPE Pipe Fusion Machine

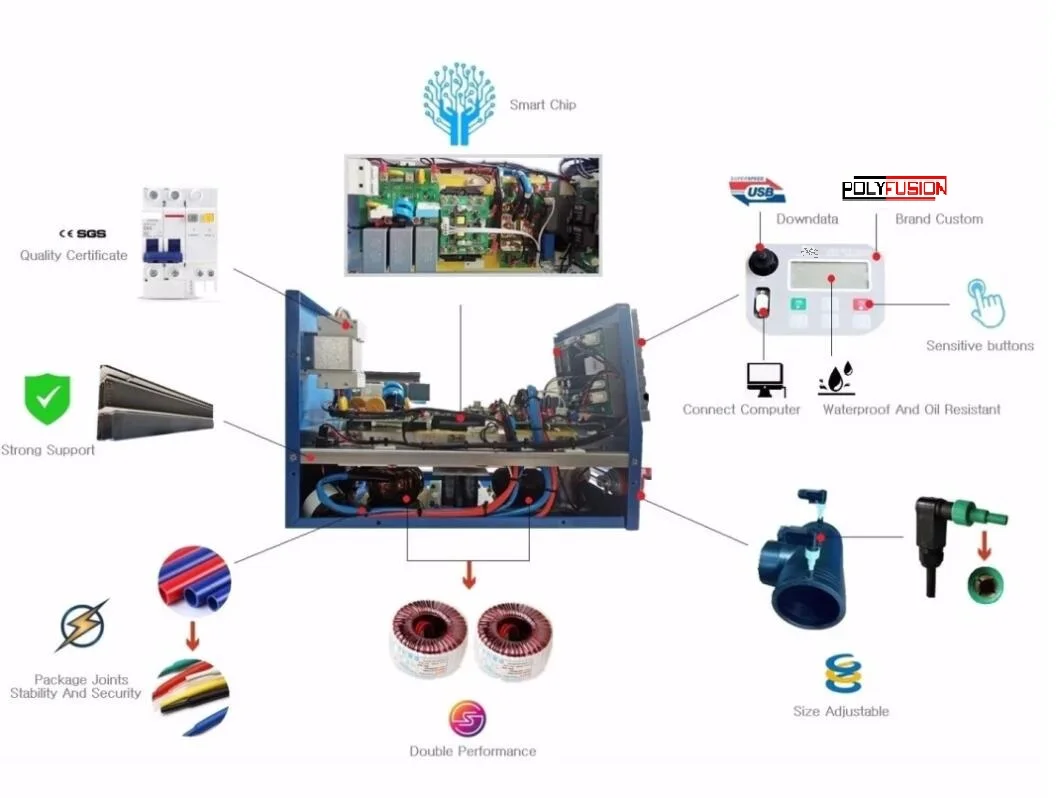

1. Advanced digital MCU as control core, with abundant parameter setting, detection and perfect protection functions.
2. High brightness LCD, multi language operation, friendly human-machine interface.

3. 20% wide supply voltage input, fully adapted to complex construction site specific power environment.
4. Swiftly output response time when power supply breaks, high stability.

5. 0.5% high precision power, time control, ensure welding quality.
6. USB read, import welding records storage function.
7. Keyboard manual input or bar code scan input.
8. Automatic retrieval of pipe fittings for welding.
9.Good doubling protection function.
10. English, Spanish, Russian, Polish and Chinese languages inside.
Model
PFE315B
PFE500B
PFE630B
PFE1000B
Welding Range(mm)
DN20~315MM
DN20~500MM
DN20~630MM
DN20~1000MM
Rated Power(Kw)
3.5KW
12KW
15KW
18KW
Input Voltage(V)
AC220V±20%
AC380V±20%


Input Frequency(Hz)
40~65Hz



Rated Current(A)
55A
60A
80A
80A
Output Voltage(V)
75V
150V
170V
280V
Ambient Temperature
﹣20℃~50℃



Control Mode
Constant Voltage/Constant Current



Store Data Number
270 Times



Constant Accuracy
≤±0.5%



Data Output Port
USB Port &Scanner



Package Weight (KG)
18kg
21kg
25kg
35kg
Package Size(MM)
460X300X430mm
467x204x335mm
515x204x386mm
515x204x386mm
Packing and delivery

Electrofusion machine -PFE315B

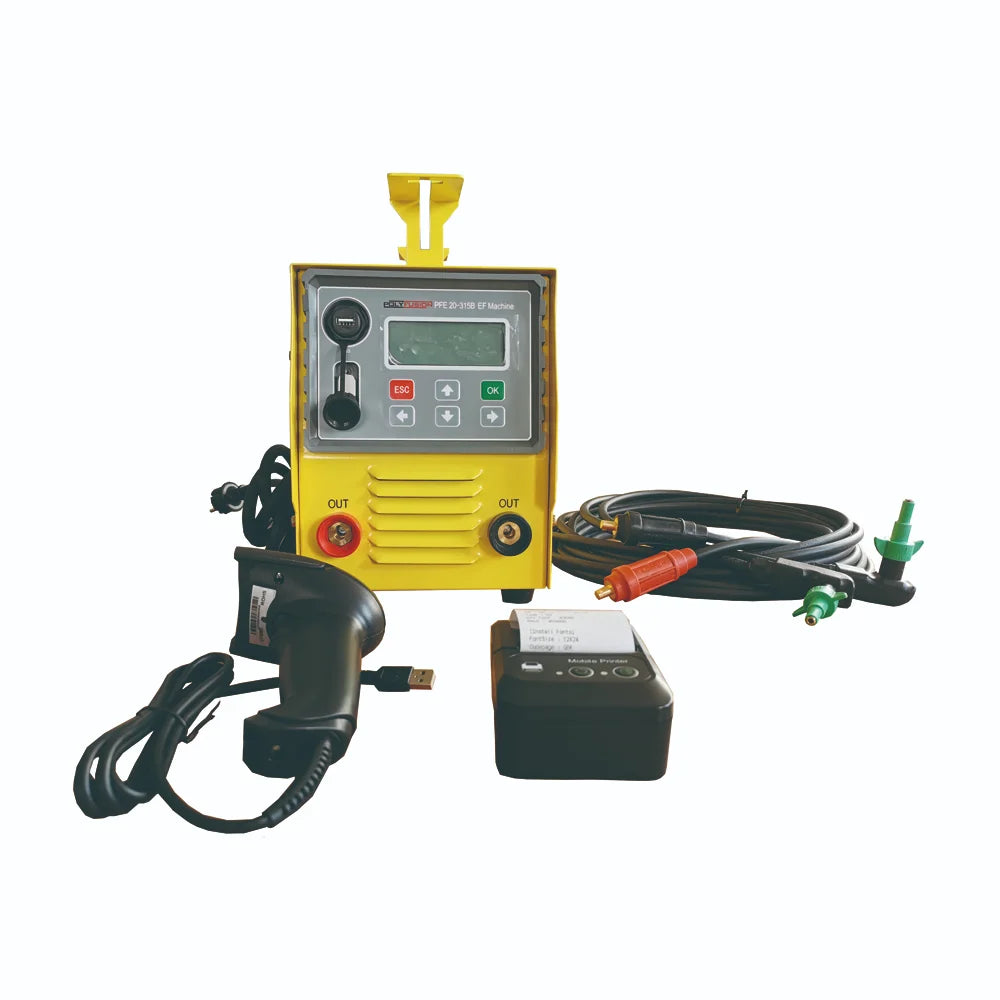

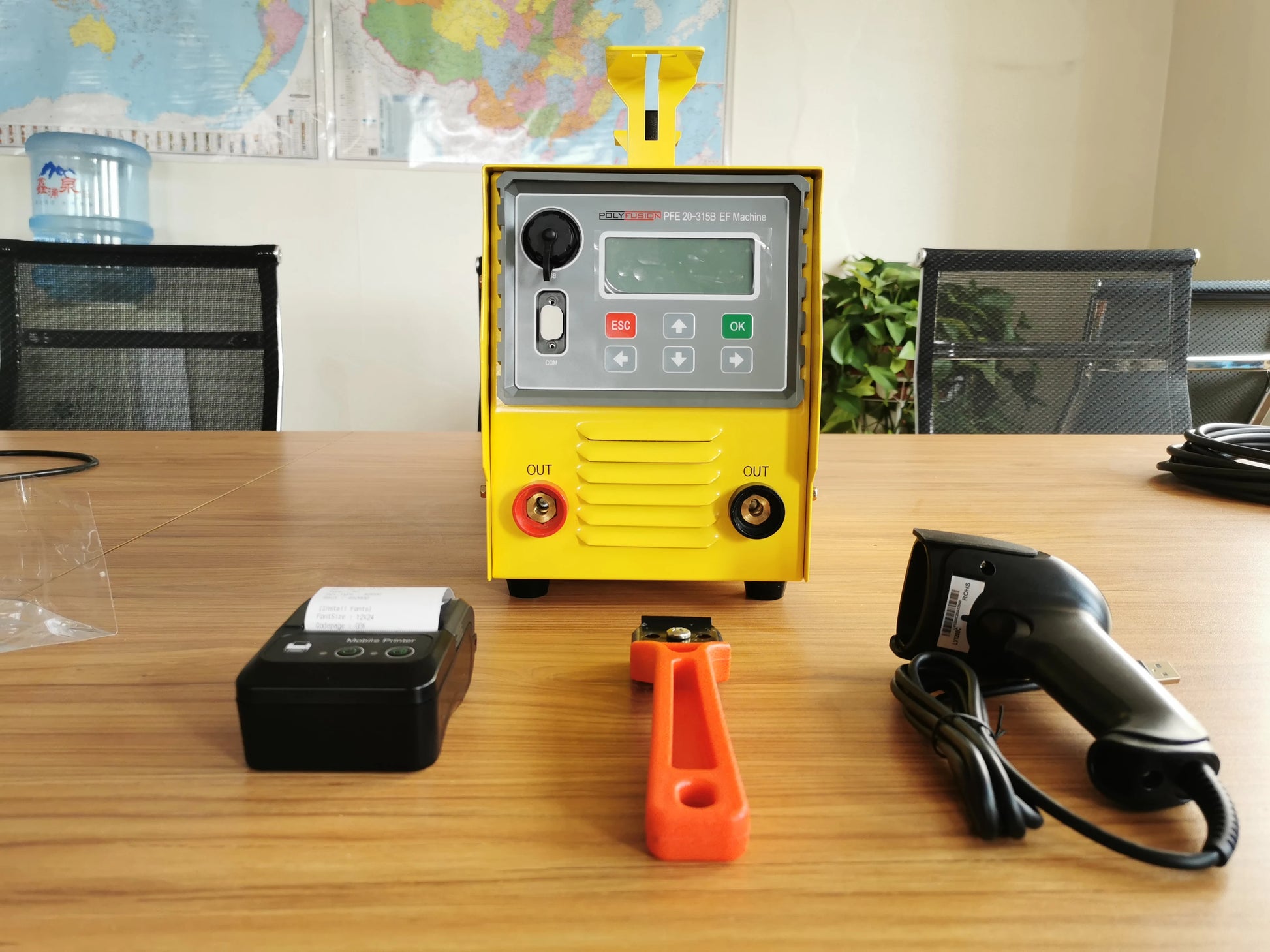

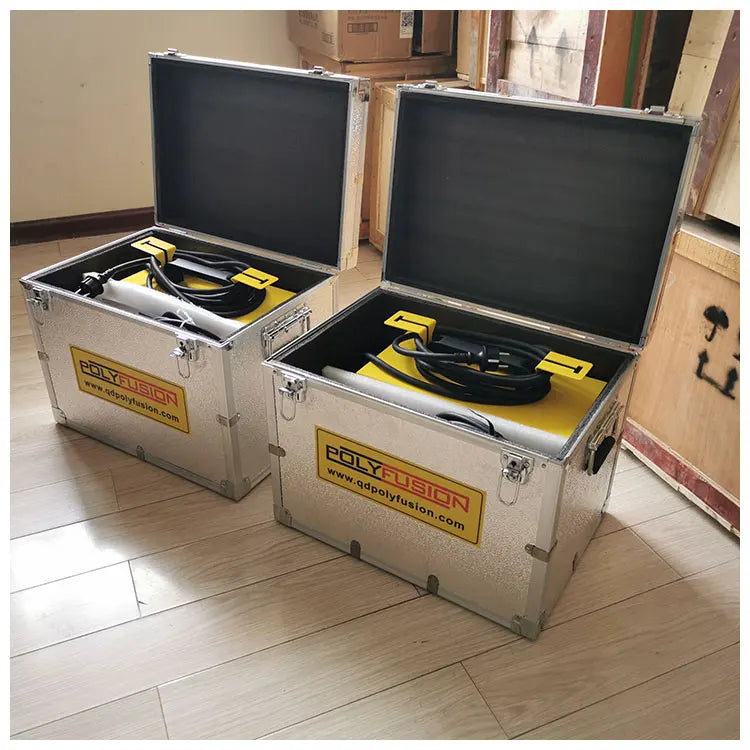

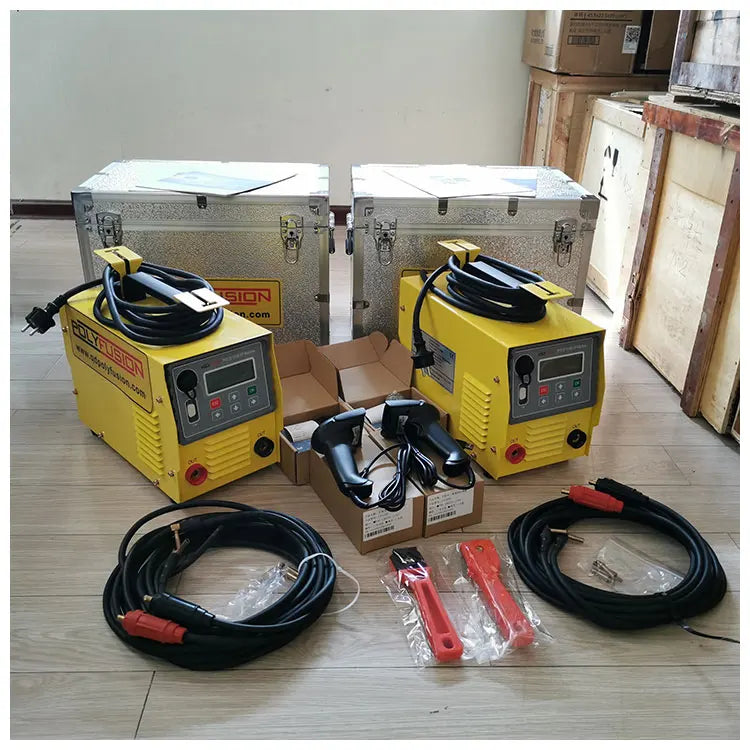

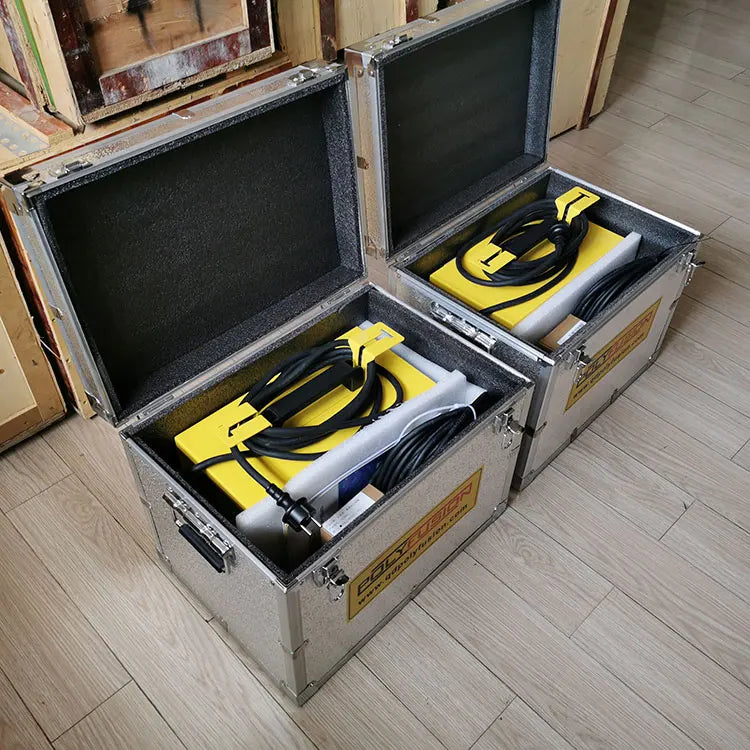

Standard Configuration: electrofusion machine body 1set, Cable 1pc, Scraper 1pc, Scanner 1pc, Pins 3 sets-4.0mm,4.7mm and 5.0mm. By cartons package. Of course, you also can choose the Aluminum box and cartons to package and easy to storage.

If package by carton, package weight is 13kg, easy to transport by DHL,FEDEX,TNT and other Express.
Application



scrape off the oxide layer on the surface of the pipe




scrape off the oxide layer on the surface of the pipe




Socket the pipe(scrape off the oxide layer) to the electrofusion coupler

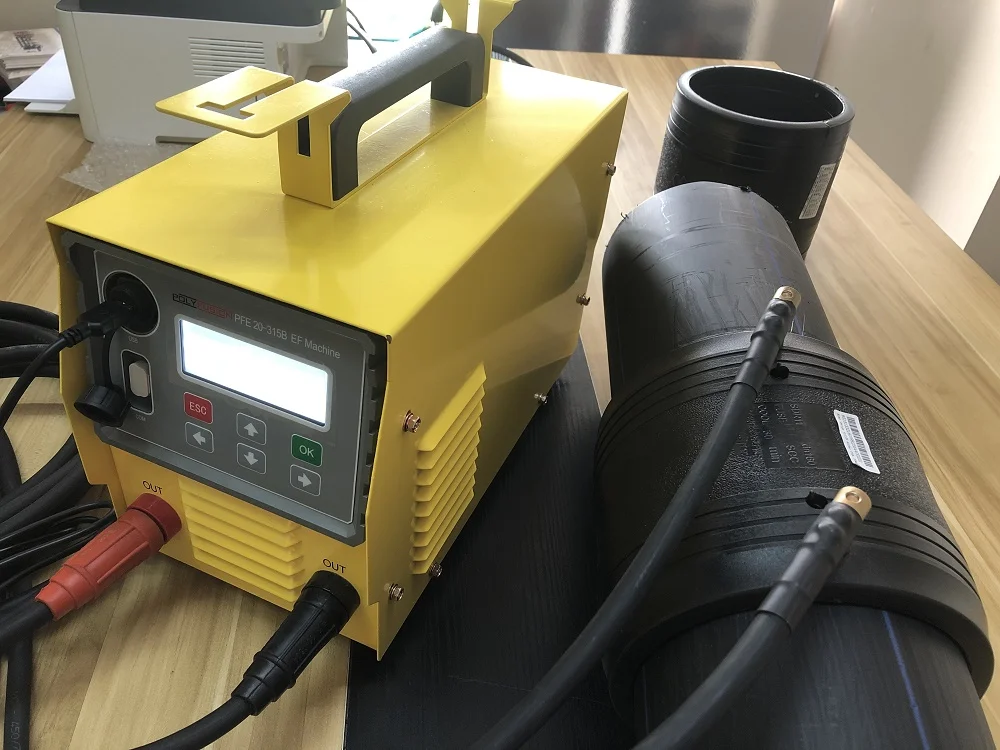

Connect the electrofusion coupler to machine




Scan the bar code on the EF coupler surface


Start to weld after read the data by scan


Recommend Products

PF-TC Series Scraper

By adjusting the telescopic fixture, it can effectively adapt to the scraping of different pipe diameters by the scraper. The scraping is continuous, even if the pipe is deformed, the scraping effect can still meet the desired needs. At the same time, the position of the surface to be scraped can be adjusted according to the welding depth of the electrofusion coupler.
Model
Working Range (out Diameter)
Working Range (inner Diameter)
Maximum scraping depth(mm)
Diamension(mm)
Weight(kg)
PF-TC200
63~200MM
55~192MM
129MM
425x305x125MM
3.8kg
PF-TC400
63~400MM
55~365MM
150MM
425x305x125MM
3.8kg
PF-TC800
200~800MM
182~728MM
225MM
430x340x130MM
5.2kg
PFS Series Scraper

Professional rotary scrapers, essential to prepare the plastic pipes and fittings before electrofusion welding.The tools has an
adjustable chuck covering all the diameter of the working range, and a blade holders orbital arm.The PFS series guarantees a
constant and regular removal of the shaving. The scrapers blade holder permits the scraping of the entire electrical sleeve's
lenght, most useful when doing on site repairs.

Company Profile
Qingdao Polyfusion Machinery Co., Ltd. is a company integrating production, research and development and sales for plastic welding technology since 2010. After the development of over 12 years, Polyfusion is capable of producing a full range of butt fusion welding machines, electrofusion machines, workshop fitting machines, saddle fusion machines, pipe saws for pipes up to 3000mm, CNC plastic sheet welding machines, hand extruders, geomembrane welding machine, hdpe fittings, accessories and spare parts for plastic pipes, sockets, sheets and boards. The machines are widely used in PE pipe manufacturer and engineer installing, mining industry and building construction.
Qingdao Polyfusion combines high productivity, certainty and ecology in each and every plastic welding technology and in every service feature- all over the world. Successfully deliver high quality plastic welding machines and technology to every customers who need them by succeeded in passing assessment of ISO9001 and CE certificate.
Pipes are the lifeline of human beings, used to transport energy and water, are closely related to people’s lives. The plastic welding machines produced by Qingdao Polyfusion connect people with water, energy, and safely and sustainably.
Certifications
Exhibitions
FAQ
01 Payment Term
T/T, Western Union, D/P, Credit card payment, etc. If your purchase demand is large, then we support 30% prepayment and 70% pre-shipment payment.
02 Production Lead Time
There are a large number of products in stock, so generally we can ship goods in about 3-5 days.
03 Customized Design
Our machines and tools accept customizing requirement, such as voltage, color, different parts combination, even minor structure modifications. Our sales representatives and experienced engineers can help you decide the optimized options.
04 Product Warranty
We provide 12 months warranty for all products. Any parts broken or does not work under normal operating, we are free to provide.
05 About Agency
To further service our customers and provide more value to clients, we are very willing to establish agency with influential distributors. As polyfusion’s agent, you can get more favorable cooperation terms and service.
