Handheld Laser Welder Machine Price Fiber Laser Welding Machine Cost Laser Welding Equipment For Sell

Handheld Laser Welder Machine Price Fiber Laser Welding Machine Cost Laser Welding Equipment For Sell

$5,280.00 USD
$6,600.00 USD $5,280.00 USD
Sale Sold out
Shipping calculated at checkout.
Working Area

Please contact us before you pay, as different price based on different configuration:

Peter Cheng

whatsapp/wechat:+86 15020014819

Email:export03@acctekcnc.com

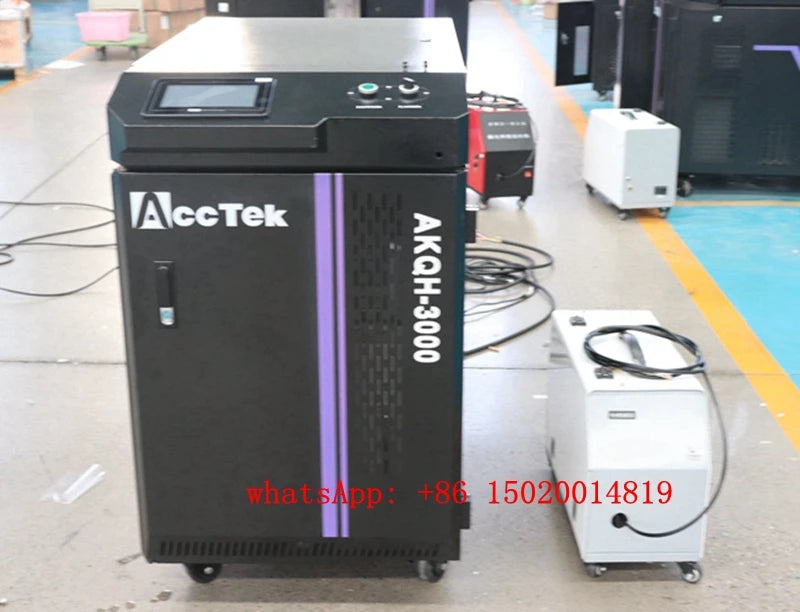

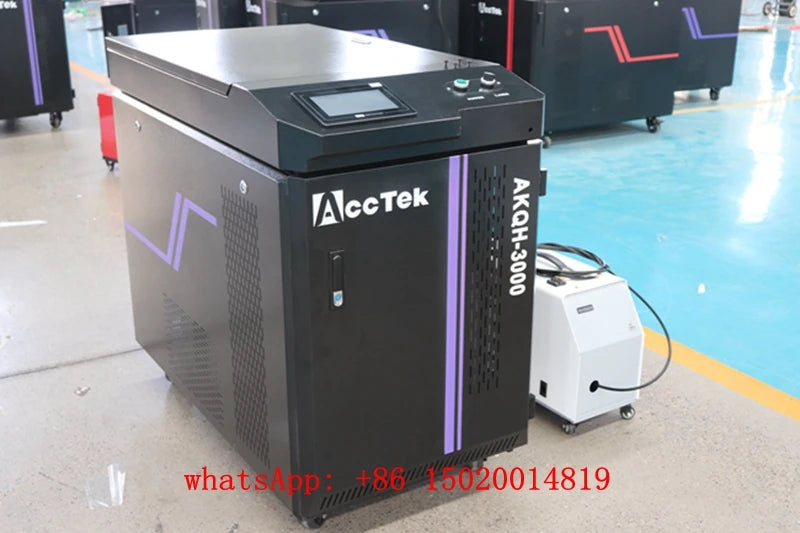

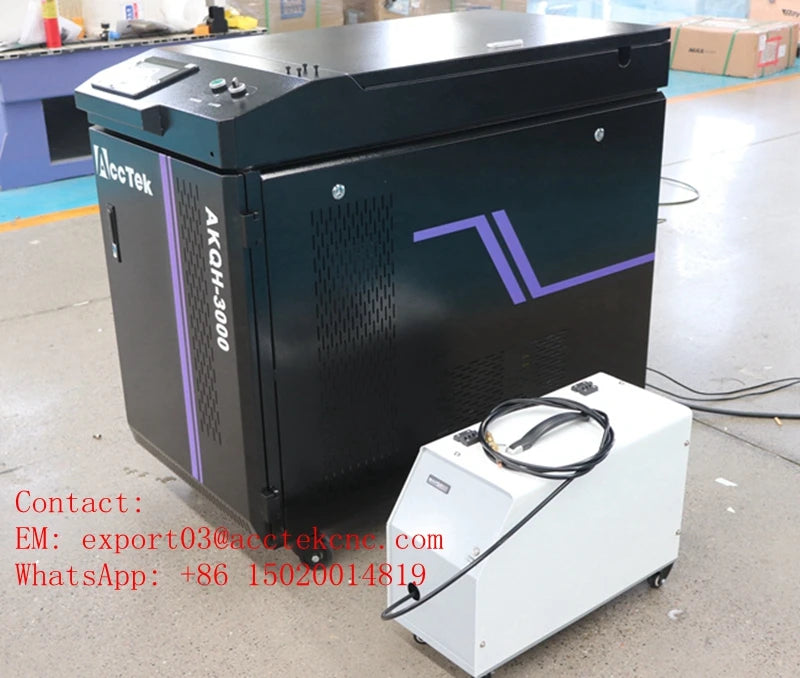

Handheld Fiber Laser Cleaning&Welding&Cutting Machine Description


The laser cleaning and welding machine can not only clean the metal surface contaminants, but also weld and combine various metal materials.
It is a mlti-functinal laser equipment. Equipped with Ruida system, it has two modes of cleaning and welding, which can be flexibly switched.

1. Fast and concentrated pulses with enormous power impact and gasification of residues on the surface;
2. Laser pulses are verysuitable for the removal of organic matter, such as residues in the tire mold fouling;
3. The impact of a short period of timewill not cause metal surface heating, no damage to the substrate.
4. Clean or remove the surface paint layer quickly and cleanly;
5. Accurate cleaning and paint removal effect;
6. No damage to the base material.


Technical Parameter

Model
AKQH-
Fiber Interface
QBH
output mode
Continuous
wavelength coverage
1070±20nm
Welding focus length
150mm
Clean the focus length
500mm
Laser head weight
0.8kg
Welding spot diameter
0.5-5mm
Clean spot diameter
0.5-5mm
Length of cable
10m（Standard）
language
Chinese simplified, Chinese traditional, English, German, Russian etc can be customized
·


Machine details

Controller system

Au3tech cotroller system has multi languages and can be customized.


Cleaning
Fiber laser cleaning head has a good cleaning effect on iron, carbon steel plate, stainless steel plate, mold steel gear, aluminum plate, paint layer and other materials. The laser cleaning mode can clean the oxide layer, remove the paint on the surface, clean the surface oil, stains and dit, clean the rubber mold residue.
Meet the requirements for equipment cleaning in the shipbuilding industry, auto parts, rubber molds, machine tools, environmental protection industries and other fields.
Welding
Fiber laser welding head is suitable for stainless steel, copper, aluminum, gold, chromium, nickel and other metals or alloys It can also be used for a varies of welding between different material, such as copper - brass,titanium gold, nickel - copper and so on. Meet the welding needs of kitchen cabinets, stair elevators, shelves, ovens, stainless steel door and window guardrails, craft gifts, home furnishing and other industries.
Industry application
The hand-held laser welding machine can be widely used in complex and irregular welding processes in cabinet, kitchen and toilet supplies, stairs, elevators, shelves, ovens, stainless steel doors, and windows, guardrails, electric cabinet, stainless steel furniture and other industries.

Samples of Fiber Cutting Welding Cleaning Model:

Fiber laser cleaning head has a good cleaning effect on iron, carbon steel plate, stainless steel plate, mold steel gear, aluminum plate, paint layer and other materials. The laser cleaning mode can clean the oxide layer, remove the paint on thesurface, clean the surface oil, stains and dit, clean the rubber mold residue.

Meet the requirements for equipment cleaning in the shipbuilding industry, auto parts, rubber molds, machine tools, environmental protection industries and other fields.



Feedback


Please contact us before you pay, as different price based on different configuration:

Peter Cheng

whatsapp/wechat:+86 15020014819

Email:export03@acctekcnc.com
