Geomembrane Welding Leak Test Equipment

Geomembrane Welding Leak Test Equipment

$1,200.00 USD
$1,502.25 USD $1,200.00 USD
Sale Sold out
Shipping calculated at checkout.
Voltage

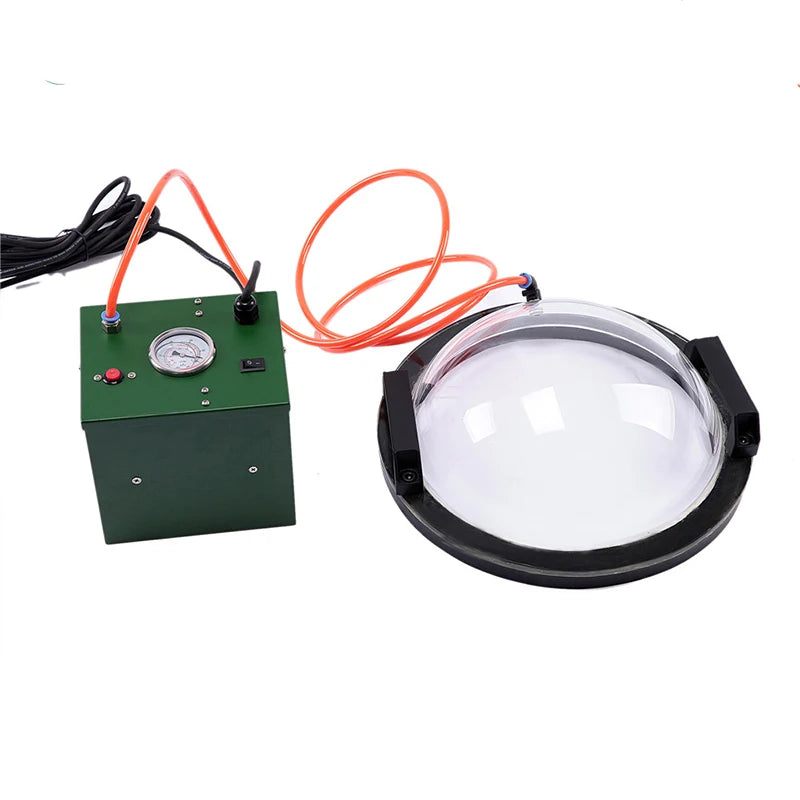

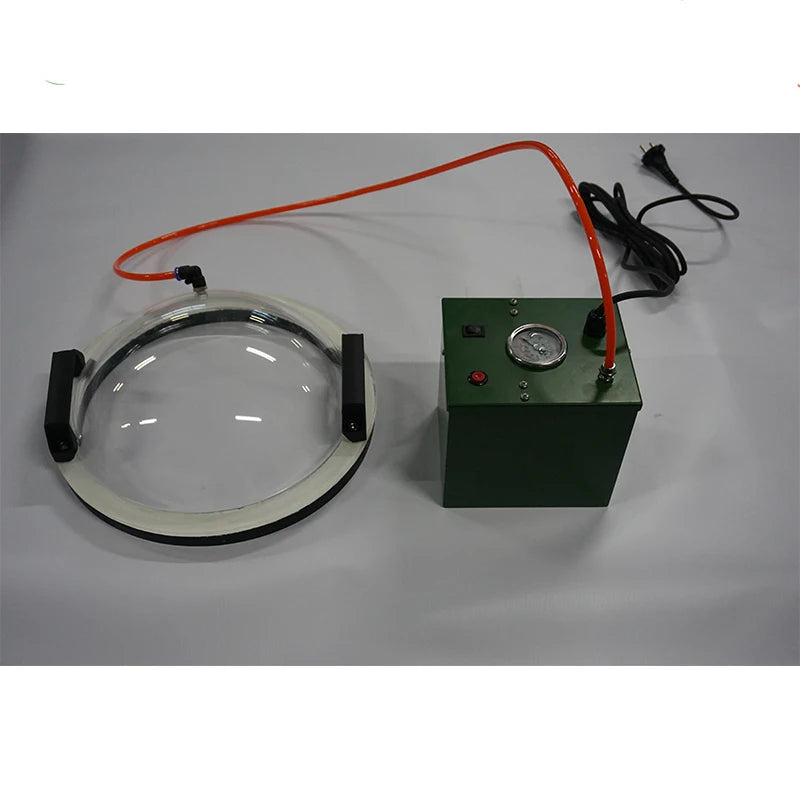

Vaccum leak tester is designed as CJJ113-2007 standard from National construction department,which is small body and strong negative pressure.The vaccum part is of blow moulding acrylic.The whole vaccum is clean and  strong resistant,connected with special strip seal.It is used in disposal landfill project and roof waterproofing check.


Basic parameter:

Voltage:                                    230V
 Frequency:  50/60HZ
 Max. negative pressure:  84kpa
 Normal testing negative pressure:  20-40kpa
 Effective leak testing size:  Φ280mm
 Size of the vaccum:  Φ360mm
 Connecting way bewteen vaccum and pump:  quick connector
 Weight:  5.8kgs
 Shape:  Hemispherical



Working principles:

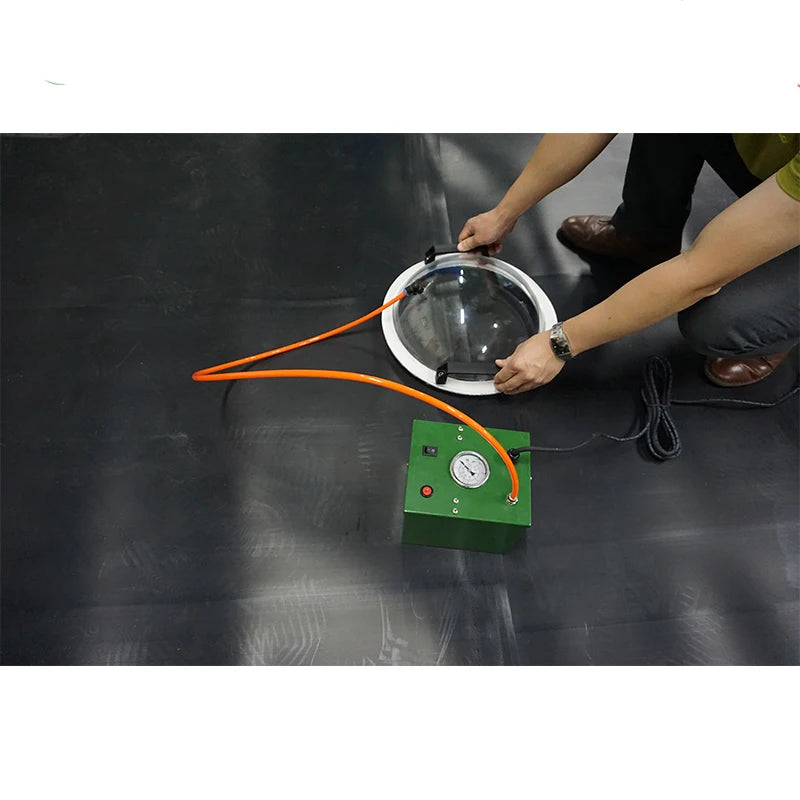

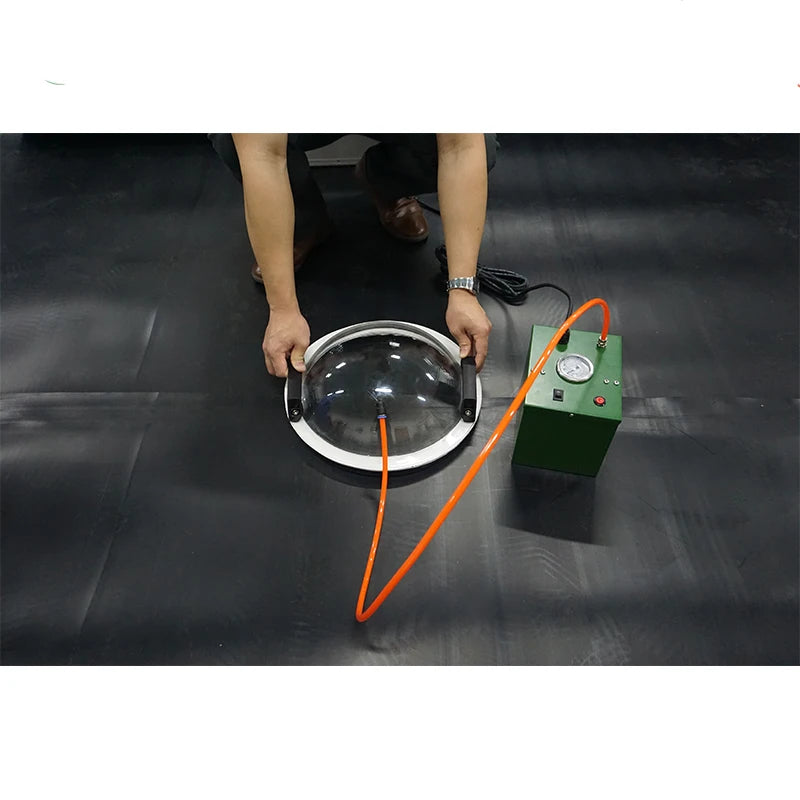

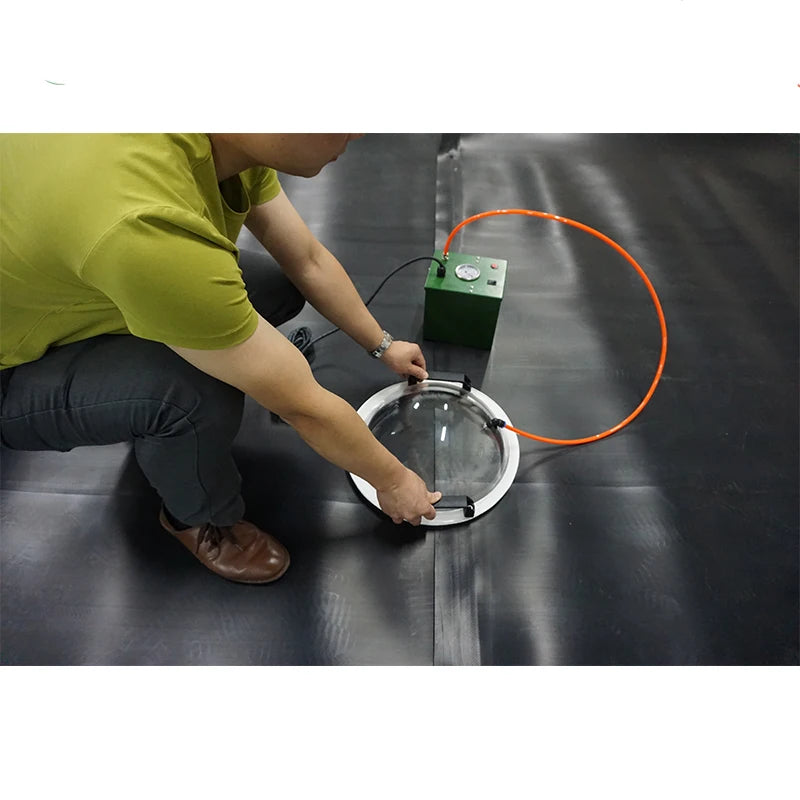

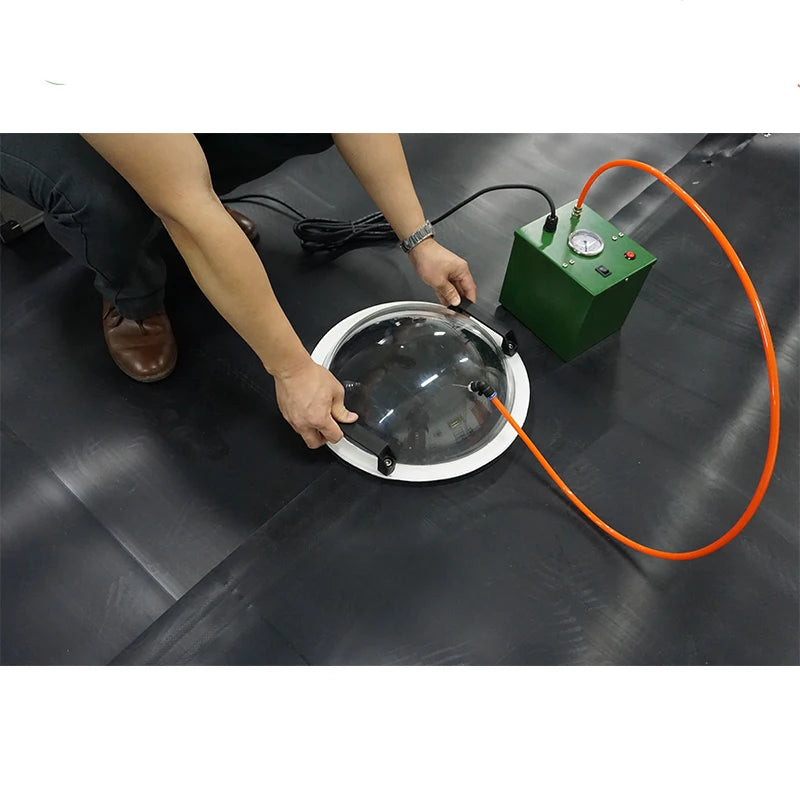

Start Vacuum pump and vacuumize the hood,then close the valve.After some minutes,if the pointer doesn't move that means the pressure don't change and leak.

Features:Vacuum quickly,high vacuum,carry coveniently,lightweight,durable,safe and reliable
