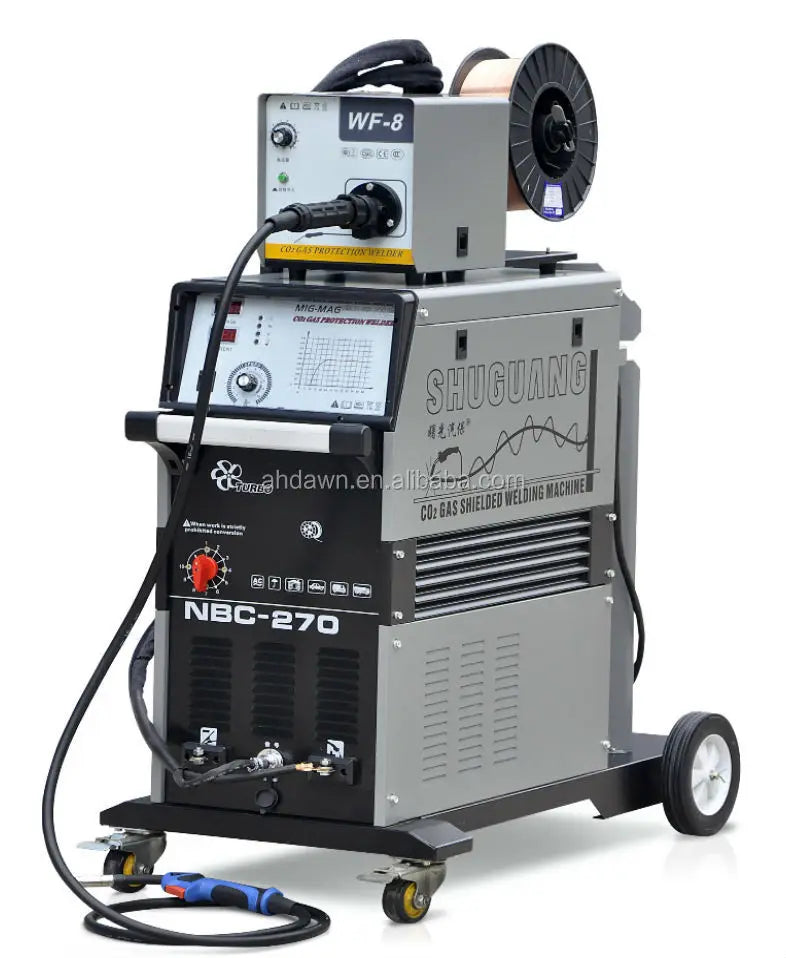

CE Approved Factory directly price MIG Welder CO2 MIG welding equipment

CE Approved Factory directly price  MIG Welder CO2  MIG welding equipment



Technical Parameters



TYPE	NBC-270S	NBC-350S
INPUT VOLTAGE	3PH380V/1PH220V	3PH380V/1PH220V
FREQUENCY	50Hz/60Hz	50Hz/60Hz
RATED POWER	9KVA	16KVA
FLOATING VOLTAGE	20-36V	18-42V
WELDING CURRENT	270-50A	315-50A
CURRENT RANGE	50-270	50-315
RATED GRADE	10F	10F
DUTY CYCLE	35%	35%
WELDING DIAMETER	0.8-1.0mm	0.8-1.2mm
WELDING THICKNESS	0.8-6mm	0.8-12mm
DIMENSIONS(LxWxH)	1050x590x1440mm	1050x590x1440mm
WEIGHT	130KG	130KG





















































Standard Accessories





CO2 ALU. WELDING GUN	1	PC	AIR PIPE	1	PC
CO2 HEATING REGULATOR	1	PC	IRON CHAIN	1	PC
PROTECTION TUBE	1	PC	HOST	1	PC
TRIANGLE WASHER PULLER	1	PC	INSTRUCTIONS	1	PC
CONTACT TUBE	1	PC	WARRANTY CARD	1	PC
EARTH WIRE	1	PC









Functions And Features



1.With an Using advanced integrated circuit, functional modules , the new technology of high-performance switch with  convenient adjustments,even  easy  for the beginner
2.Self-development,mature technology ,high reliability, easy operation and high efficiency.
3.The microprocessor control system optimizes the welding parameters. Using advanced digital control technology and user friendly design, all you have to do is select the welding current corresponding to the work piece thickness to achieve the best welding results.

unique voltage automatic self testing function  ,Multi-bridge rectifier with  High precision two-way time adjustment system and Dual Drive wire feeder.
4.Using the Practical, reliable and advanced technology ;Equipped with high energy-efficient

 main transformer and switch of  gun testing . Welding torch from worldwide band with Complete with tool box and anti-blocking agent;Separated wire feeder and welding gun with extended cable are optional



Constructed Specification



The new decompressor installed the  sintered bronze filter effectively prevents impurity from entering the gas regulator to ensure the use and service life of the pressure valve .Square Outer tube is made of composite materials with safe and durable .

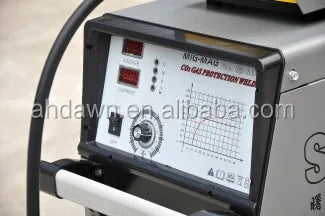

Displaying digitization current and  voltage ,monitoring 3 phase network voltage, marked Welding characteristic curve

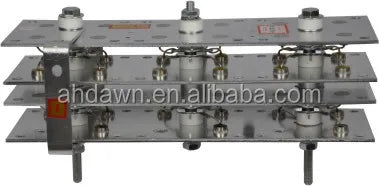

Multilayer silicon rectifier bridge ,fast heat dissipation,stable welding current,easy to install and maintain.

Material of the host:aluminum

Wire diameter :0.8-1.0mm

Rating power :80W

Rated voltage :24V

Duty Cycle:60%

Solid Wire diameter :30mm

wire feed rolls  diameter:30mm

Wire Feeding Speed : 3-18m/min

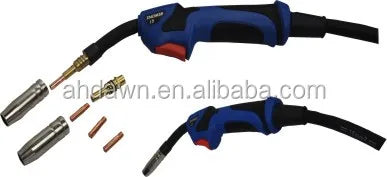

CO2 Welding torch with a thickened copper pipe from European premium brands  is easy to disassemble,maintain,adjust  and flexibly  to use  with  perfect welding performance .

Using high standard mains lead and cable with International CE and Chinese CCC .
