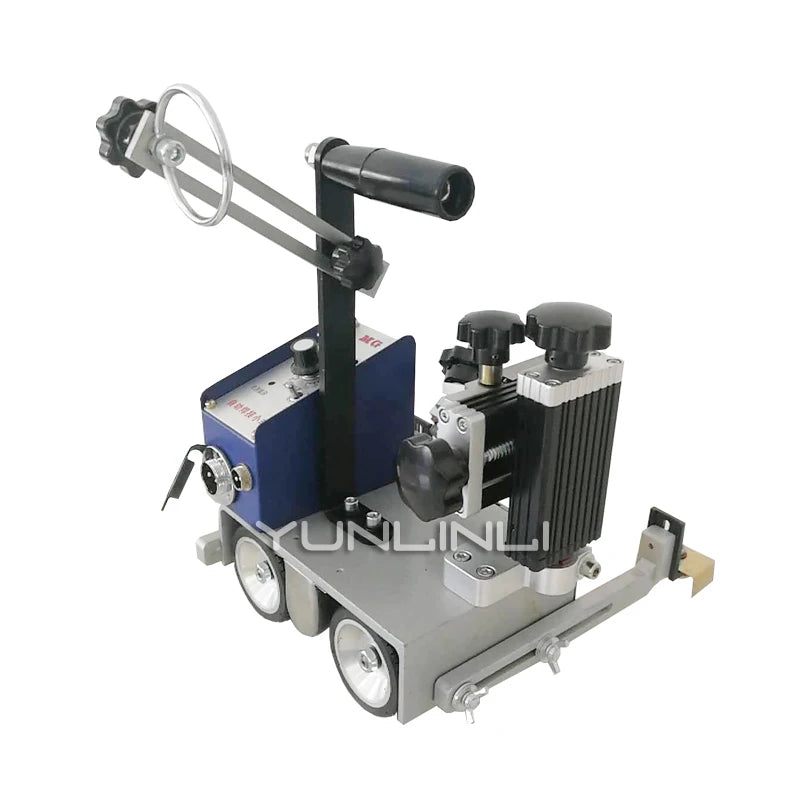

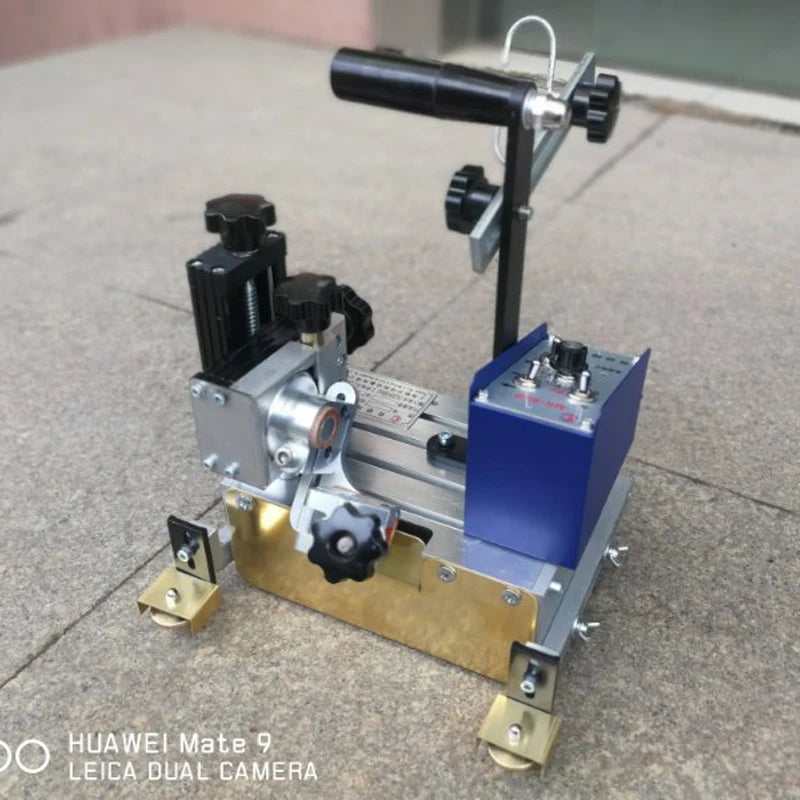

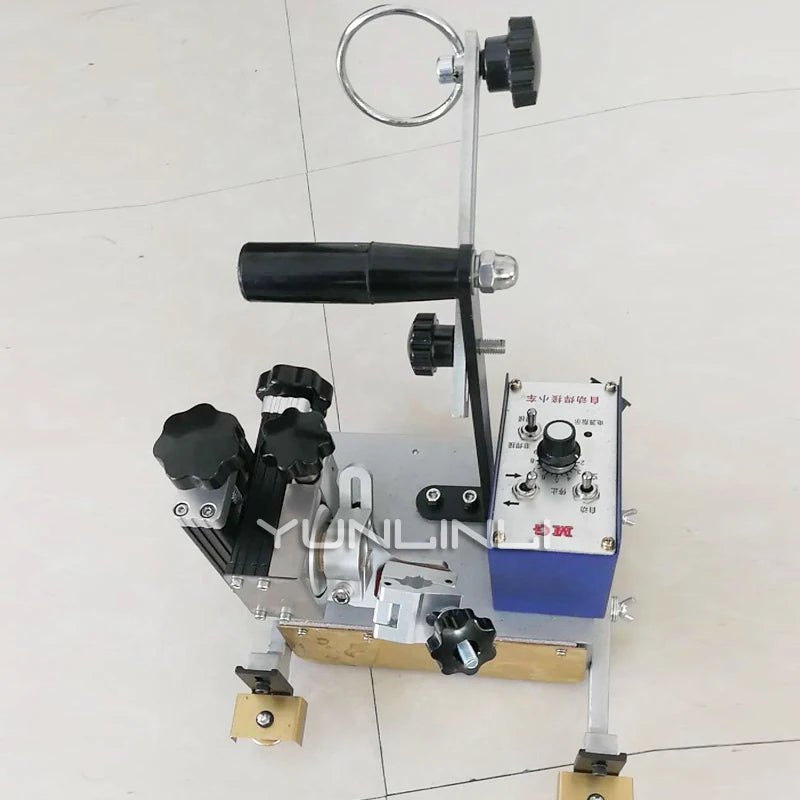

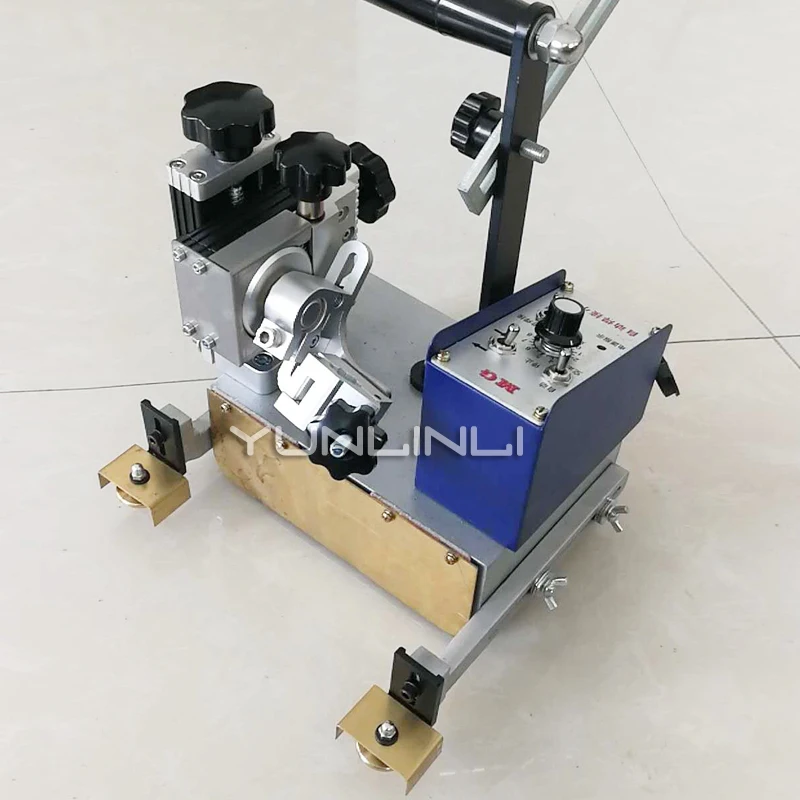

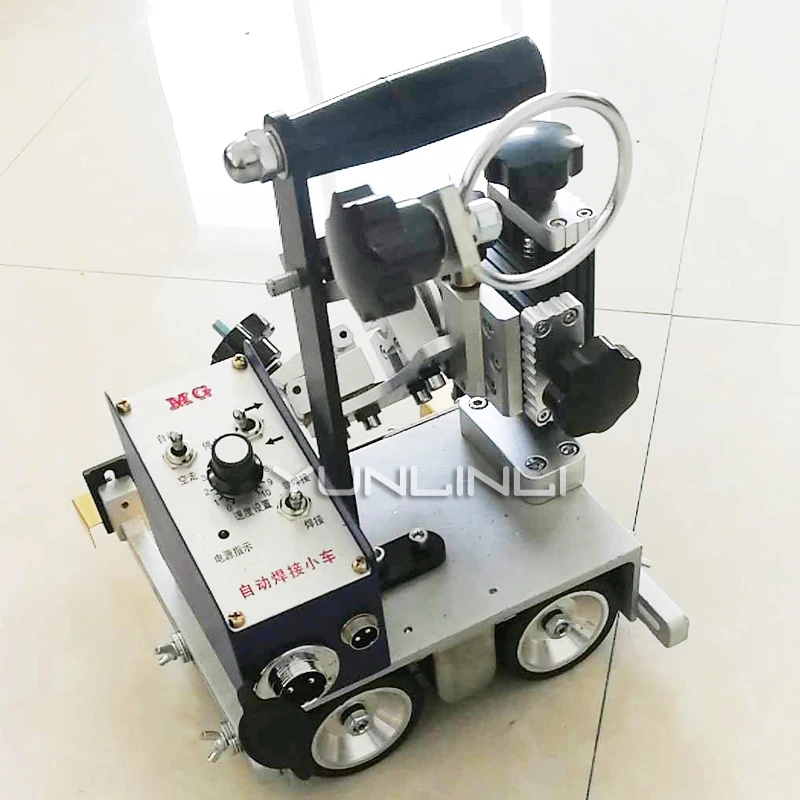

Automatic Welding Carriage Professional Straight Angle Welding Tractor Welding Equipment Steel Structure MK-8ss

Automatic Welding Carriage Professional Straight Angle Welding Tractor Welding Equipment Steel Structure MK-8ss

$512.64 USD
$643.05 USD $512.64 USD
Sale Sold out
Shipping calculated at checkout.



150-900mm/Min Automatic Welding Carriage Professional Straight Angle Welding Tractor Welding Equipment For Angle Welded Steel Structure MK-8ss







Product technical parameter:





Outer Size:290*230*335mm

Weight:8.8kg

Voltage:AC220V(Input) / DC24V(Output)

Power:22W

Adsorption force:10-25kg

Welding speed:150-900mm/min

Welding gun adjustment range:  Up/Down:50mm    Left/Right:50mm

                                              Rotate angle:360



Welding Parameter:





Welding wire diameter:

1.2mm

1.4mm

1.6mm



Current(A)

Flat welding

120-300

150-380

180-430

Horizontal fillet welding



120-280

150-320

180-380

horizontal position welding

120-280

150-300

180-330

Voltage(V)

1) .u=14+0.051

2) Below 300A,U=0.041+16±1.50

3) Above 300A,U=0.041+20±2.0



wire extension(L)

Usually about 10 times the diameter of the wire,that's mean L=10d







---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
