4 in 1 fast speed continuous laser welding equipment Fiber Laser Cleaning machine Fiber Lazser welder cleaner with cutting

4 in 1 fast speed continuous laser welding equipment Fiber Laser Cleaning machine Fiber Lazser welder cleaner with cutting

$1,176.00 USD
$1,472.25 USD $1,176.00 USD
Sale Sold out
Shipping calculated at checkout.
Working Area

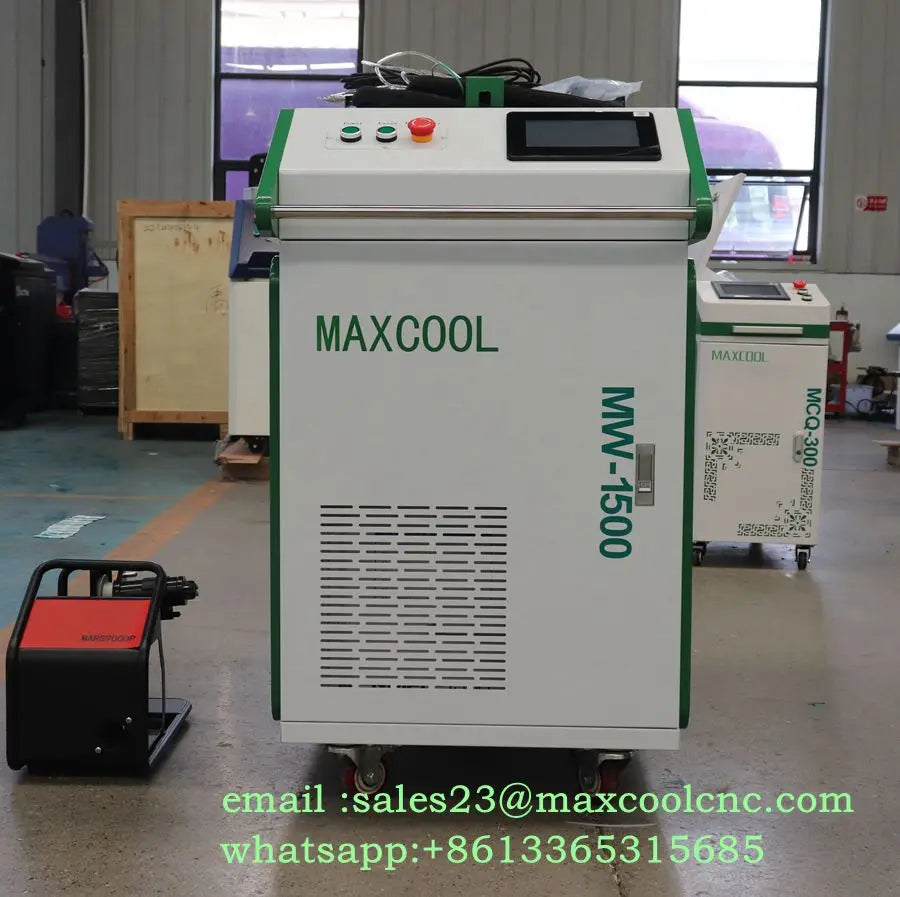

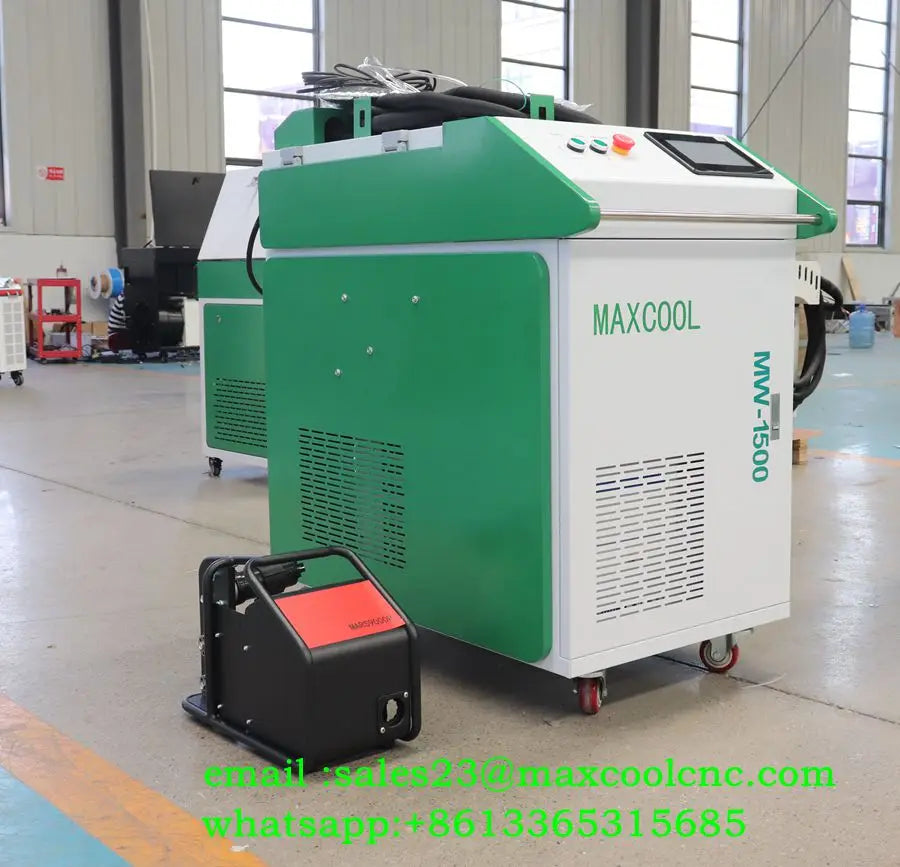

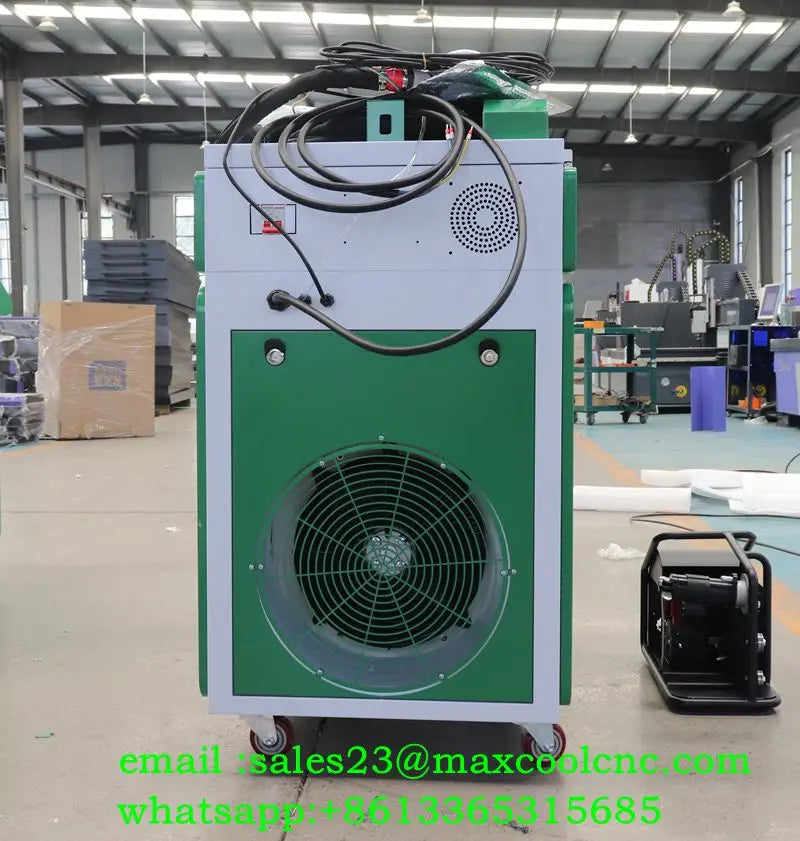

4 in 1 fast speed continuous laser welding equipment Fiber Laser Cleaning machine Fiber Lazser welder cleaner with cutting

Lily Dong

email :sales23@maxcoolcnc.com

whatsapp:+8613365315685

Welding machine working principle
Laser welding uses high-energy laser pulses to locally heat a material in a small area. The energy of laser radiation diffuses into the material through heat conduction, and the material is melted to form a specific molten pool.


Laser welding can be used in welding stainless steel, aluminum, copper, gold, silver, chromium, nickel, titanium and other metals or alloys, can also be used for a variety of welding between different materials, such as: copper – brass, titanium –gold,Titanium – molybdenum, nickel – copper and so on. Welding range: 0.5~8mm carbon steel,0.5~4mm stainless steel, aluminium alloy0.5~6mm, brass 0.5~4mm.


FEATURE:
·Simple & easy to learn, flexible and convenient: The machine adopts an integrated structure. There is no high requirements for welder, after short training, they can get started using the machine.·
Low machine cost and maintenance cost: Hand-held laser welding machine, no need a fine welding working-table when operate. It’s also less consumables, low running costs and maintenance costs. It’s high cost performance;
·Save welder: Welding speed is fast, 5-10 times faster than traditional welding, and one machine can save at least 2 welders a year; the welded seam after welding is smooth and beautiful, reducing the subsequent polishing process, saving time and cost;
·Good quality: The laser welding workpiece has no deformation, no welding scar, and the welding is firm and stable;
·Safety protection: It has a contact type safety protection function to avoid accidental laser emission and ensure that laser can only be welded after contact with metal. Equipped with laser protective glasses, which need to be worn when welding to ensure safety.

Product Paramenters
NO
Description
Parameter
1
Model
/MW-1500 / MW-2000 /MW-3000
2
Laser Power
1500W / 2000W/3000W
3
Range of adjustable power
1-100%
4
Central wavelength
1064nm
5
Line length
Standard 10m, maximum support 20m
6
Way of working
Continuous/modulation
7
Speed range
0-120mm/s
8
Repeat precision
±0.01mm
9
Welding gap requirements
≤0.5mm
10
Cooling water
Industrial thermostatic water tank
11
Laser Type
JPT / Raycus / Reci
12
Working humidity
<70% no condensation
13
Focal Spot Diameter
0.2-2mm
14
Welding depth
0.1 - 4mm
15
Pulse Frequency
0.1-100Hz
16
Voltage
220/380V

Working Samples

Fiber Laser welding machine is suitable for welding gold, silver, titanium, nickel, tin, copper, aluminum and other metals and their alloy materials. It can achieve the same precision welding between metals and dissimilar metals. It has been widely used in aerospace, shipbuilding, and instrumentation. , Mechanical and electrical products, automobiles and other industries.
