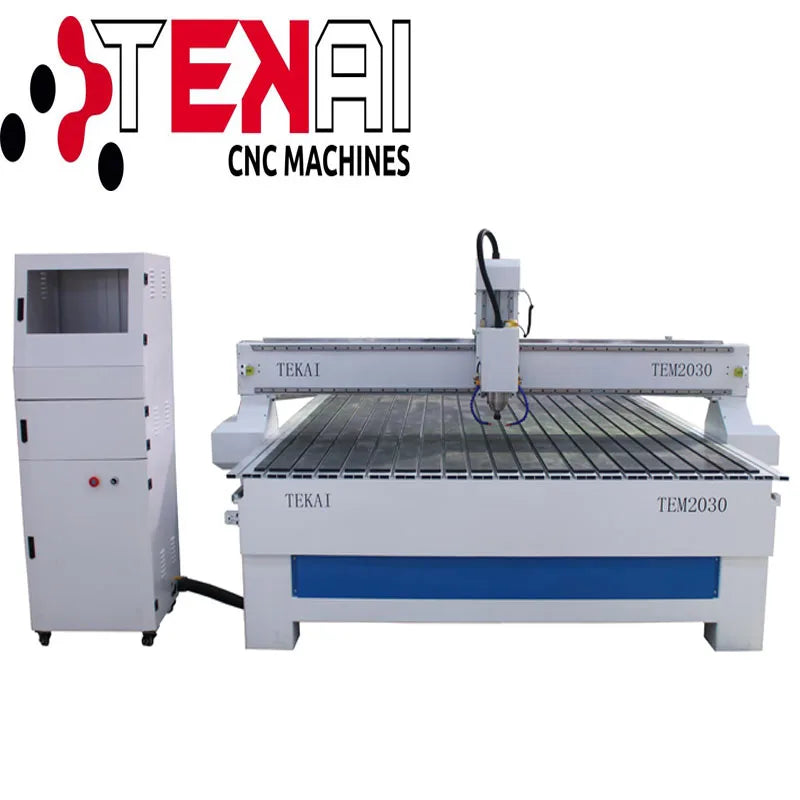

4 axis cnc router engraver 2030 cnc wood lathe 3d wood carving machines electric carving tools table top cnc machine

4 axis cnc router engraver 2030 cnc wood lathe 3d wood carving machines electric carving tools table top cnc machine

$6,500.00 USD
$8,000.00 USD $6,500.00 USD
Sale Sold out
Shipping calculated at checkout.
color

4 axis cnc router engraver 2030 cnc wood lathe 3d wood carving machines electric carving tools table top cnc machine

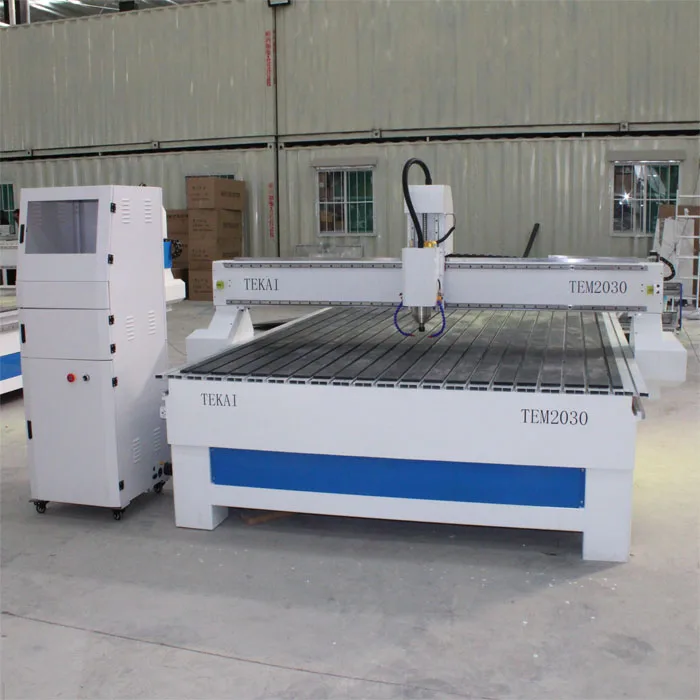

TEM2030 cnc machine 详描图01

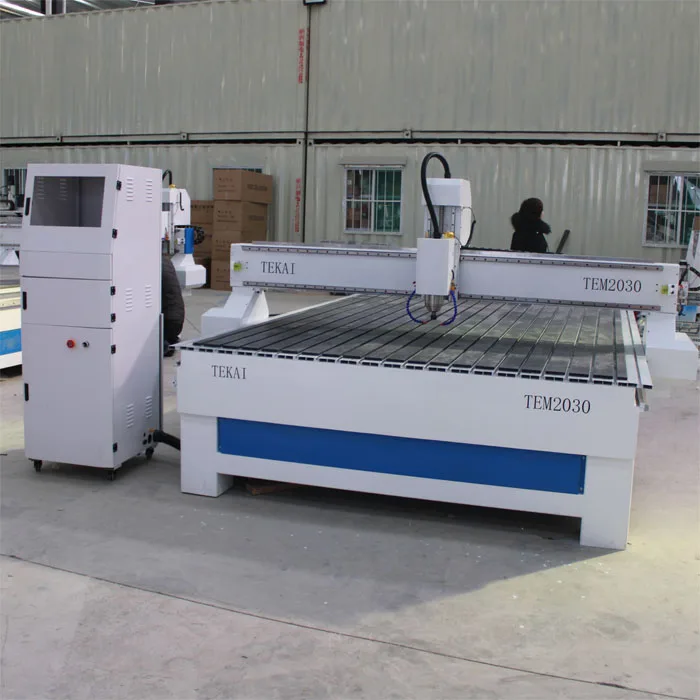

TEM2030 cnc machine 详描图02



Parameters of cnc machine TEM2030:

​

 Model

TEM2030

X Y Z working size

2000×3000×200mm

X Y axis transmission

Gear transmission

Z axis transmission

Taiwan TBI ball screw transmission

Body

Cast iron body

Spindle

3.0kw water cooling spindle

Spindle speed

24000rpm

Motor

450B stepper motor

Driver

Leadshine M860 driver

Inverter

Fuling inverter

Lubrication

Oil lubrication

Control system

Mach3 controller

Max. Speed

35m/min

Max. working speed

30m/min

Software

Artcam



Product features of 3d wood carving machine:



1. Versatile: routing, drilling, cutting, side milling, edge chamfering, etc. Boring unit optional.

2. Drilling head, pop-up position pins optional.
3. Our machines adopt the vacuum  or  T-slot dual-use table, you can use the clips to fix the small-scale materials, which can save the vacuum pump electricity, and you can adopt the vacuum adsorption to fix large-scale material.so the processing is convenient, simple and efficient.
4. High quality Taiwan imported guide has much longer life 10 times of life-time than round guide; It is stable and hard to distort.
5. 3KW top brand water cooling spindlehas much powerful strength; So for processing your softmetal it will have higher efficiency.It will have a better effect .
6. The Mach3 control system is a very popular control system with high quality. Its with USB port.



Detail drawing of 3d wood carving machine:

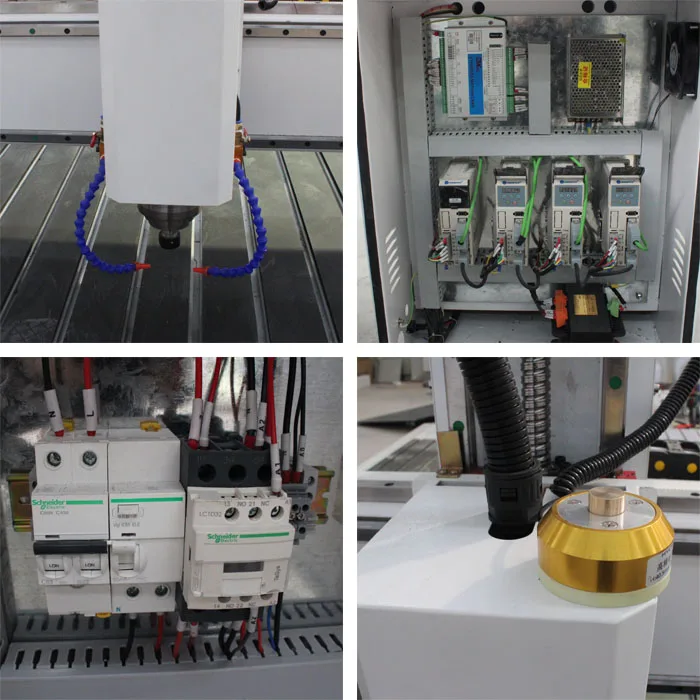

TEM2030 cnc machine 细节图01

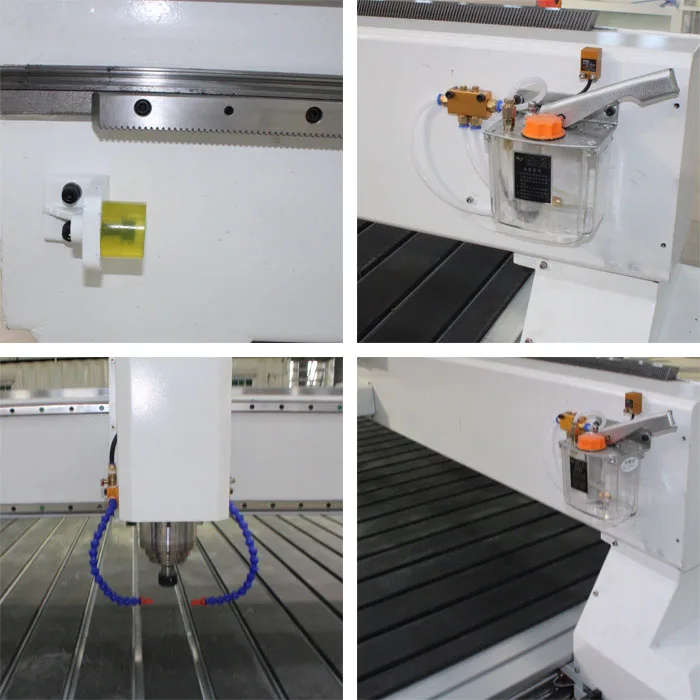

TEM2030 cnc machine 细节图02



Samples of cnc machine TEM2030:



TEN2030 cnc machine 样本图



Services for our customers:



   Pre-sale services

1) Provide the free consultation of the equipment.

2) Provide the standard device and the flow chart.

   Services during the sales

1) Inspect the machine before leaving the factory.

2) Oversea install and adjust the equipment.

3) Train the first-line operator.

   After sale services

1)  24 hours online service.

2) Provide technical exchanging.



Company introduction:



    Jinan Tekai Machinery Co., Ltd was located in high technology industry zone of Jinan,which  specializes in manufacturing CNC and laser machines since 2005.
    Our produces are wildely sold in many European and American countries. These products are very popular in these markets and have established a leading position in the carving machine field.

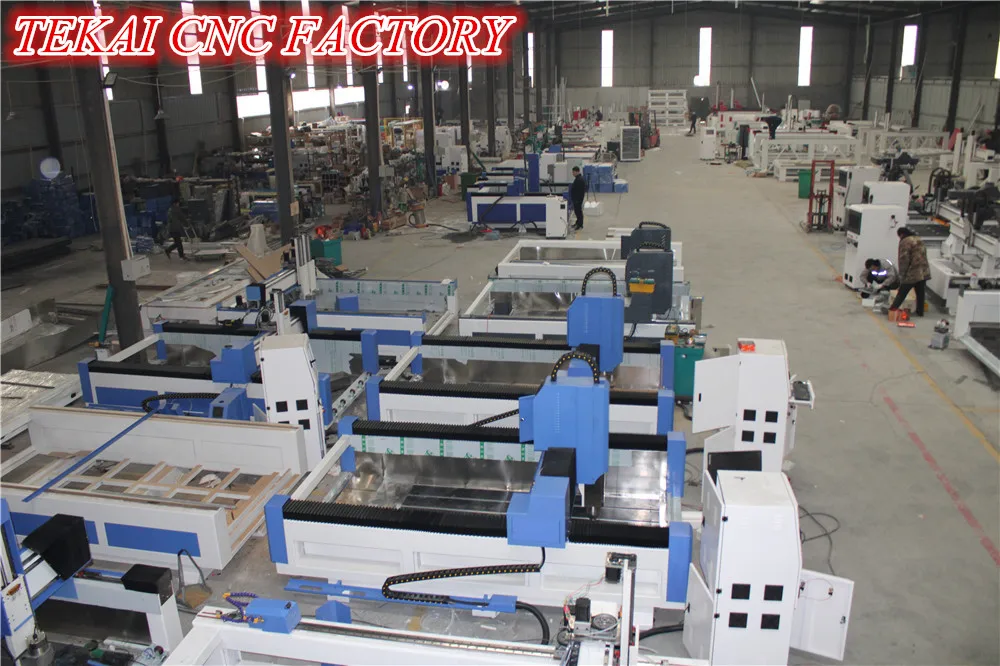

IMG_2342

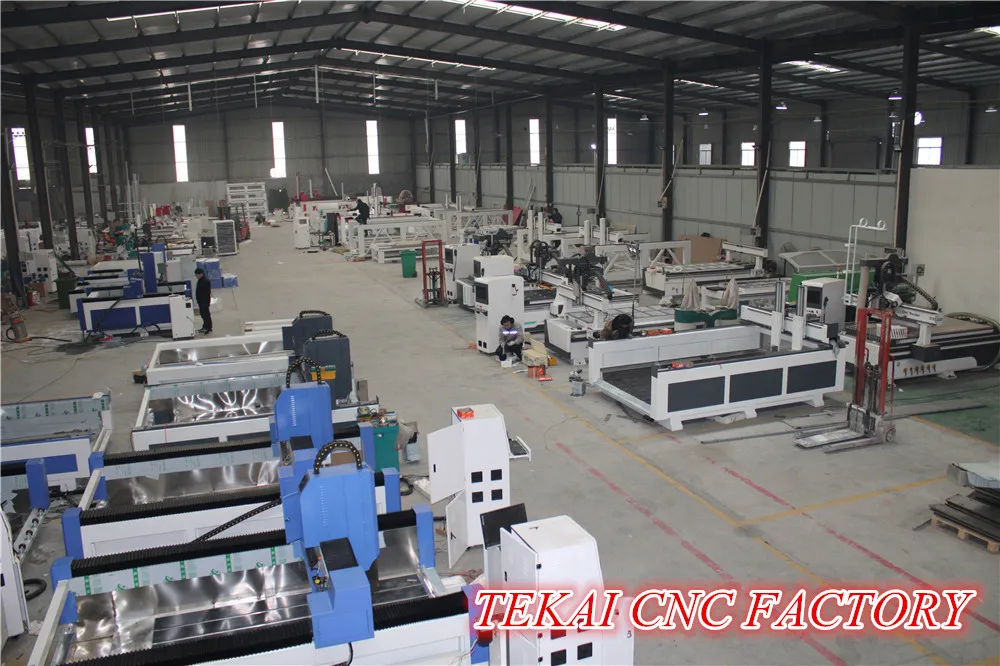

IMG_2344





Pay attention: Aliexpress just a show for our customer, before put your order, pleased kindly confirm with me for everything!!! Any questions, please fell free ask Dolph:

Whatsapp: +86 15953167370

Contact: Dolph Li

Email: export04/at/tekaicnc-laser.com

Skype: export04/at/tekaicnc-laser.com





...
