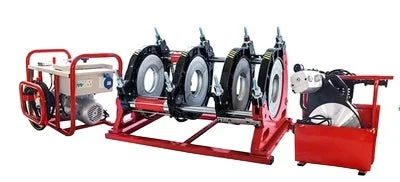

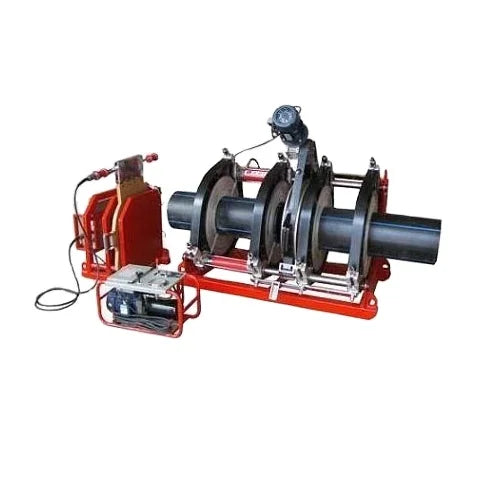

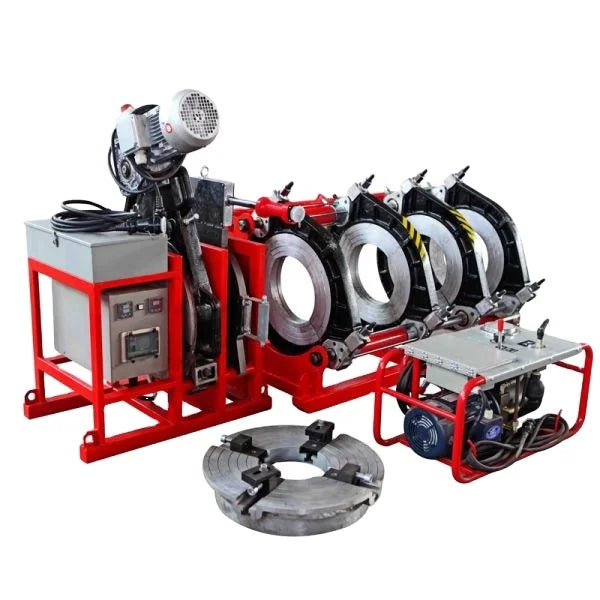

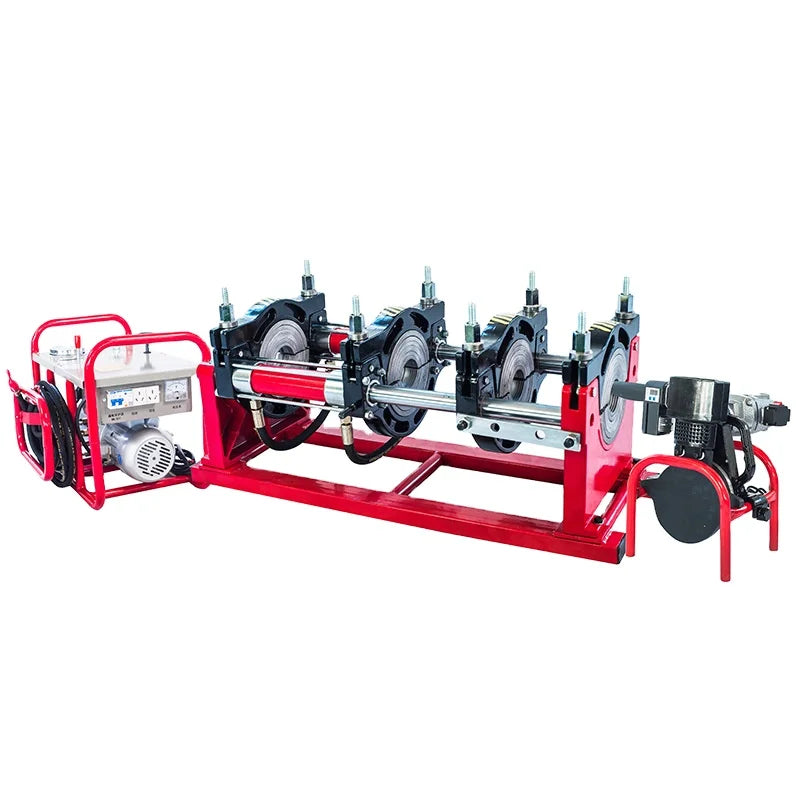

280-450mm Factory Price Semiautomatic Hydraulic Butt Fusion Welding Machine Equipment

280-450mm Factory Price Semiautomatic Hydraulic Butt Fusion Welding Machine Equipment

$4,432.46 USD
$5,540.58 USD $4,432.46 USD
Sale Sold out
Shipping calculated at checkout.

Model
JS450


pipe size (mm)
280-450mm


Heating plate Max temp
250℃


Temp deviation in surface (170-250)
±5℃


Max tolerence of welding joining
0.3mm


Max working pressure hydraulic station
6mpa


working voltage
380V


Working Frequency
50-60HZ


Motor power/voltage of hydraulic station
1.1KW/220V


Power/Voltage of heating plate
5.0KW/220V


Power/ voltage of milling cutter
1.5KW/220V


Total power
7.6KW


Gross Weight
380KG


Net Weight
327KG


Total Volume
1.8m³

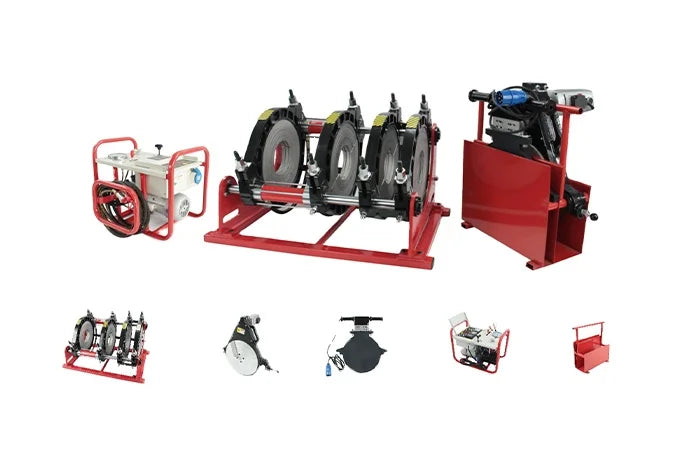

Main Body

The main body supports and centres the plastic pipes with two fixed and two movable clamps.

Using the hydraulic pressure on the system, the two pistons on the carrying metal bars move the clamps forward and backward and supply the necessary movement for the welding process.

Milling Cutter

The milling cutter is the tool which clean and smooth the both ends of the pipes before the heating process .

HDC160 butt welding machine is designed for self aligning facer always produces parallel pipe faces.

Heater



The pipe ends will be heated by this heater before the welding process. The setting of the heater will be done by the thermostat on the plates. HDC160 butt welding machine PTFE-coated heating element and uniform surface temperature.

Hydraulic Unit

The necessary electric will be transferee! to the heater and milling cutter by means of this unit and to the main machine by the hydraulic pressure.

Support



The protective casing prevents heat loss of the heater and protects the trimmer from external effects.

Application



Welding method

Henan Jiashang Plastic Industry Co., Ltd. We are one of the biggest butt fusion welding machine and electrofusion welding machine manufacturer in China. We can do the welding machine from 20mm diameter to 1200mm diameter. Our machine are widely used in welding HDPE/PP/PVDF/PPR pipe and fittings.
Our company strictly implements CE and ISO9001:2008 standards, the product is detected by the state authorities, and the mechanical properties and Physico-chemical, health indicators are up to the requirements of the relevant standards. The purpose of supporting services, and actively participating in the international and domestic competition, is to improve the living environment of mankind and work hard.

Q: What is your MOQ?
A: As customer's request.

Q: Why choose us?
A: We are a professional and leader of HDPE pipe factory, we offer pipeline system one stop services with competitive price and fast delivery time, and we insure our quality is the second to none.

Q: How to buy the product?
A: Contact with us by email or by Trade Manager, and inform us which product and quantity that you need, we will contact you immediately. More specify the information that you provided more faster and easier you will get the quotation.

Q: Can I make my own design and logo on the product?
A: Yes, we do OEM. Welcome partner from globally, we can make your product in China.

Q: What's the payment term?
A: Order amount <=1,000USD, 100% in advance.
Order amount>=1,000USD, 30% T/T in advance, balance before shipment.
Order amount>20,000USD, 30% T/T in advance, balance L/C at sight acceptable.
Order amount>100,000USD, 100% L/C at sight acceptable.


Q: Still have more questions?
A: Please use the table below and send your questions to us. Thank you.
