2023 New Pneumatic Controller 18650 Lithium Ion Automatic Battery Pack Weld Machine Equipment Professional Spot Welder

2023 New Pneumatic Controller 18650 Lithium Ion Automatic Battery Pack Weld Machine Equipment Professional Spot Welder

$14,616.36 USD
$18,270.45 USD $14,616.36 USD
Sale Sold out
Shipping calculated at checkout.
2023 New Pneumatic Controller 18650 Lithium Ion Automatic Battery Pack Weld Machine Equipment Professional Spot Welder
Product Description

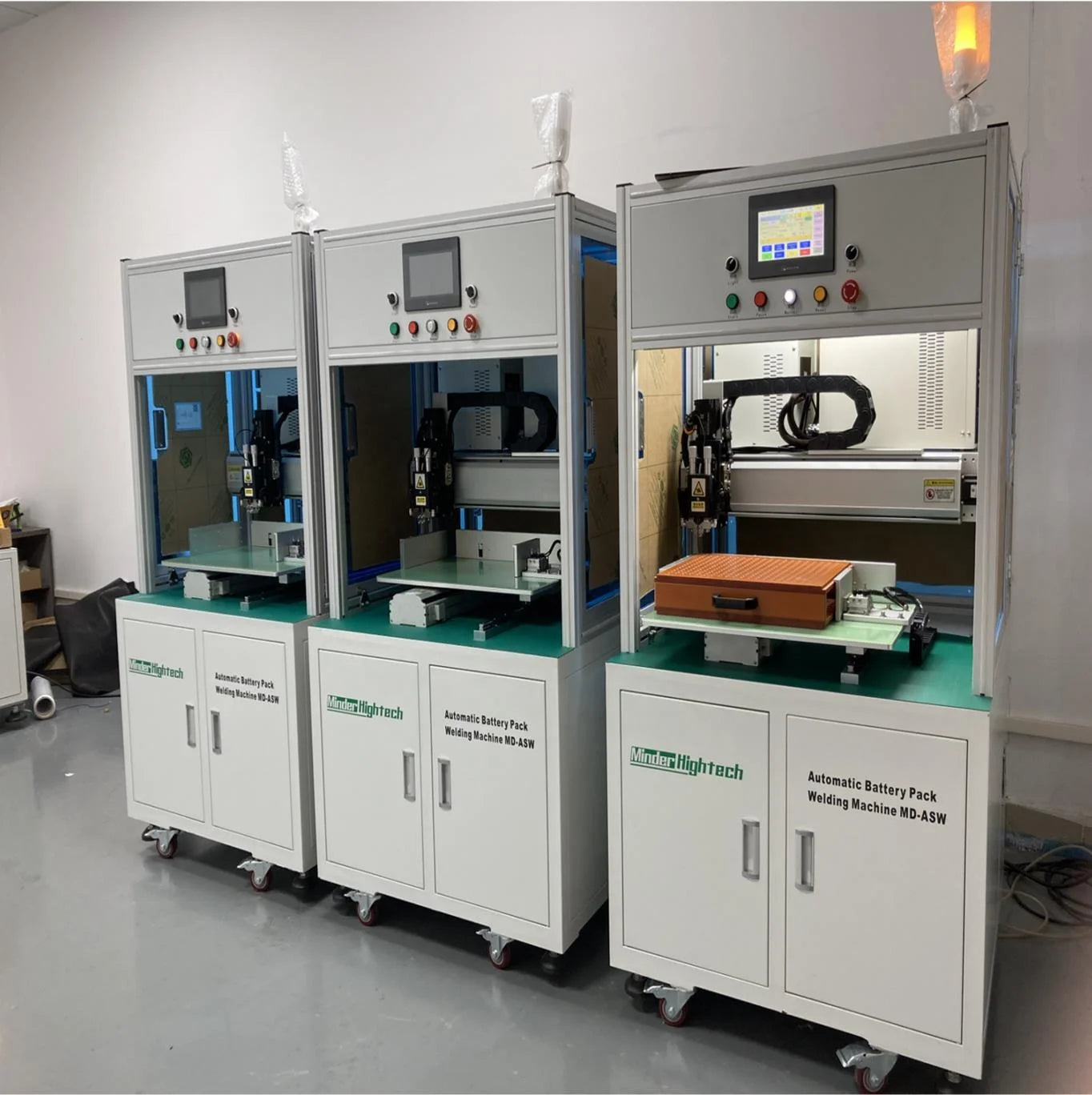

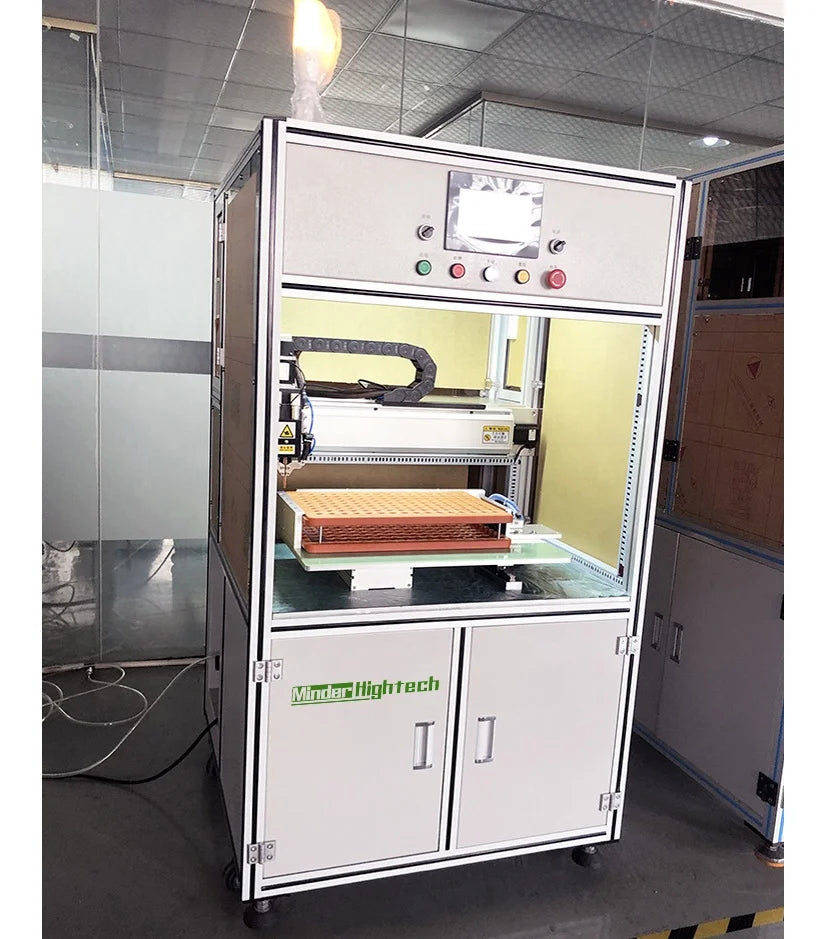

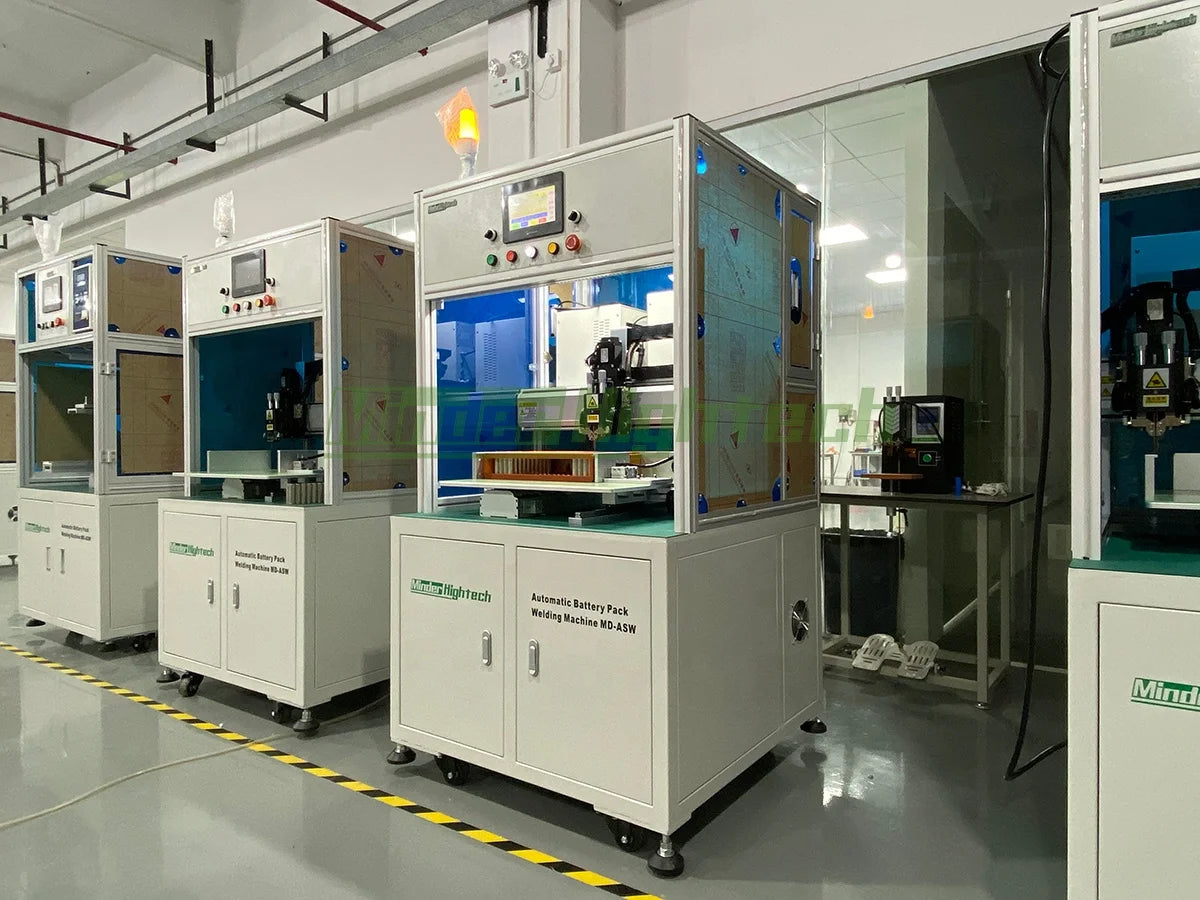

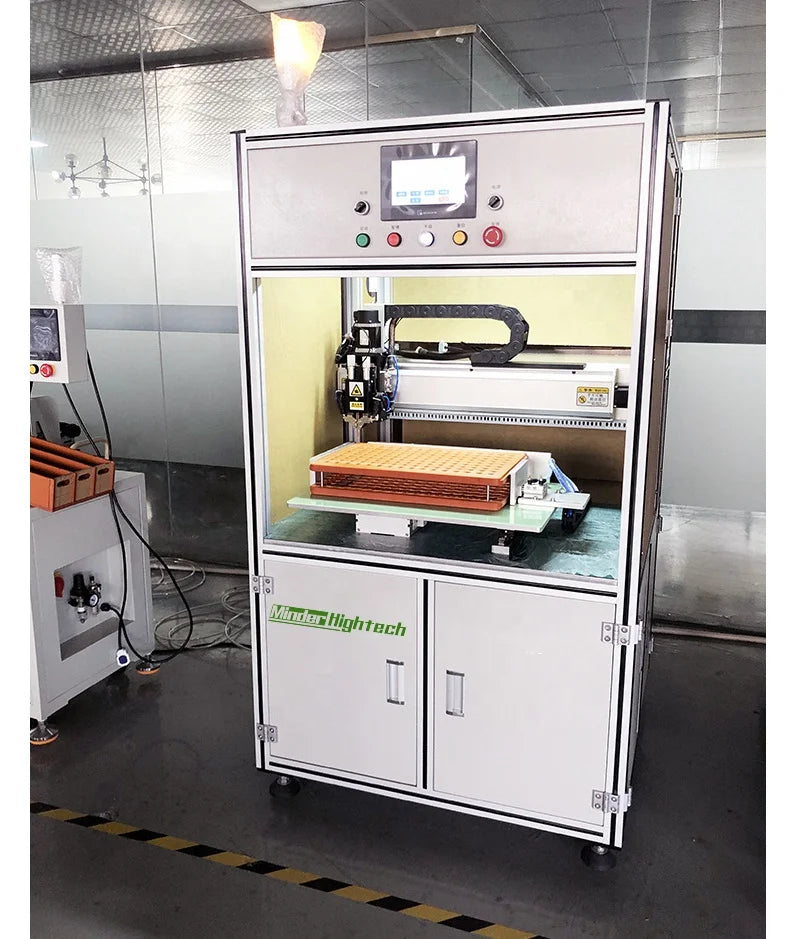

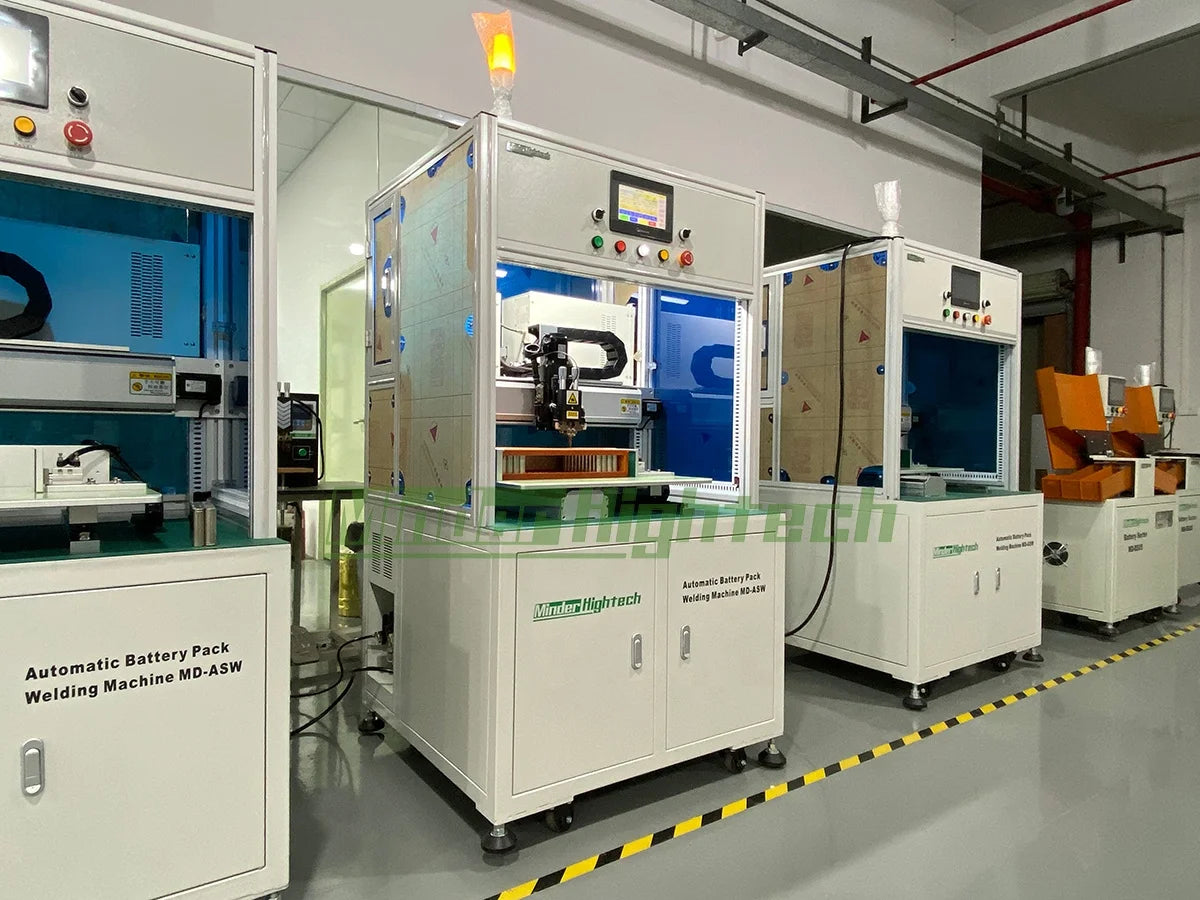

Automatic Battery Pack Spot Welding Machine

The MD-ADW Automatic Battery Pack Spot Welder is a general platform of automatic processing technology based on CNC, suitable battery pack spot welding and assembly in the factory. Compared with manual spot welding, the efficiency and accuracy of welding have been greatly improved. Humanized design makes the operation and debugging very easy and convenient. Design of components built-in makes appearance more concise.
We can do customization for you according battery pack size, shape, material and other requirements.

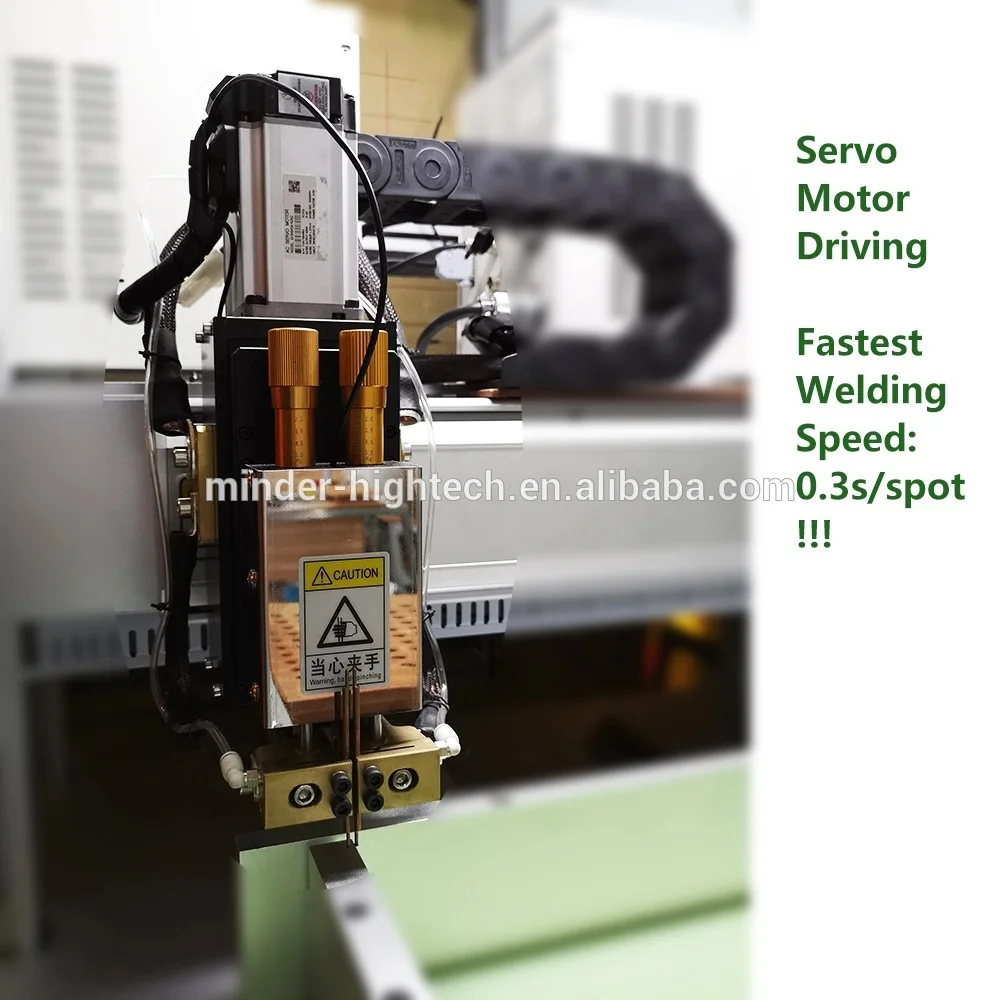

New version equipped with servo motor, featured with more fast and stable welding, fastest welding speed 0.3s/spot.
Specification
Model

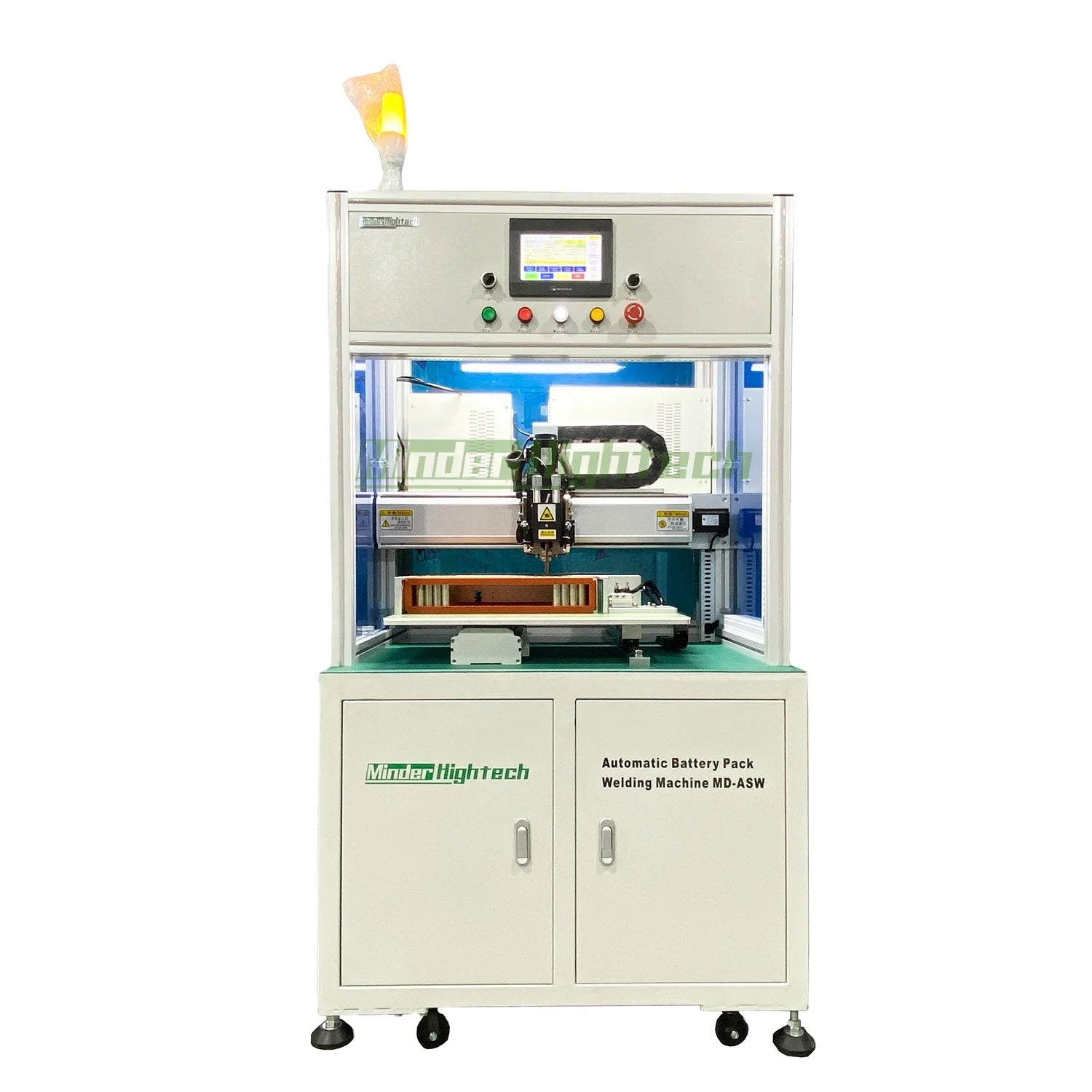

MD-ASW

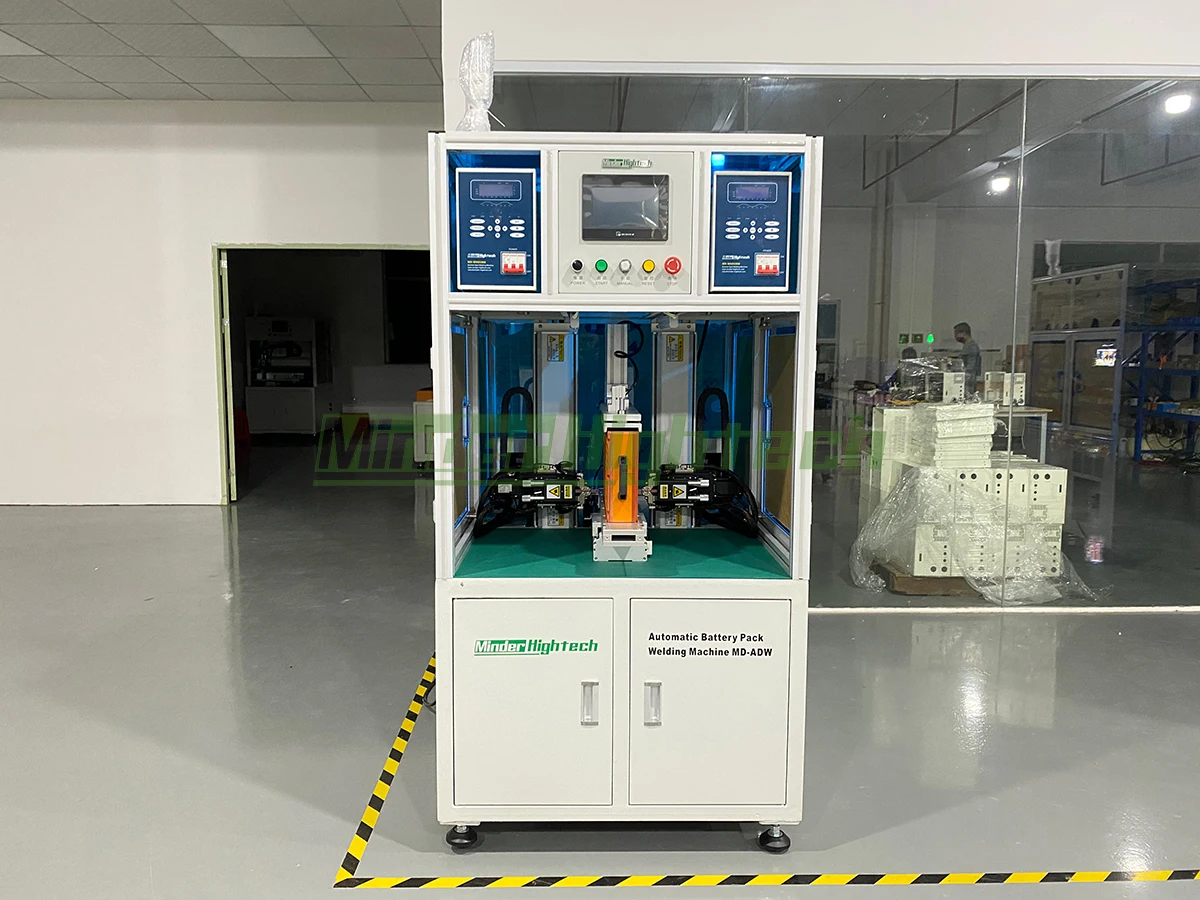

MD-ADW

MD-ACDW
Welder
5000A Inverter Spot Welder 1PCS
5000A Inverter Spot Welder 2PCS

5000A Inverter Spot Welder 2PCS
Operation Condition
Temperature: 0℃~+50℃,Humidity: below 90%



Travel
(Customizable) X 400 * Y 400 mm
(Customizable) Y 500 * Z 350 mm

(Customizable) Y 400 * Z 400 mm
Welding material
Nickel, Nickel-Plated Steel



Welding thickness
0.1m~0.3mm



Battery number
300-600 pcs



Max parameters groups
99 groups



Operate system
Embedded system touch screen user interface touch screen user interface



Drive mode
Motor and precision guide rail



Jig loading/unloading
Manual loading and unloading

By conveyor

Welding speed
0.3s/spot, 3600pcs/h 6) Welding speed: 0.3s/spot, 3600pcs/h



Supply
220V/50Hz(Machine), AC380V(Welder)



Air pressure
0.3-0.6 Mpa



Size
900(L)*900(W)*1750(H)mm
1100(L)*900(W)*1930(H)mm
1100(L)*1200(W)*1950(H)mm

Weight
200kg
350kg
380kg


Features:

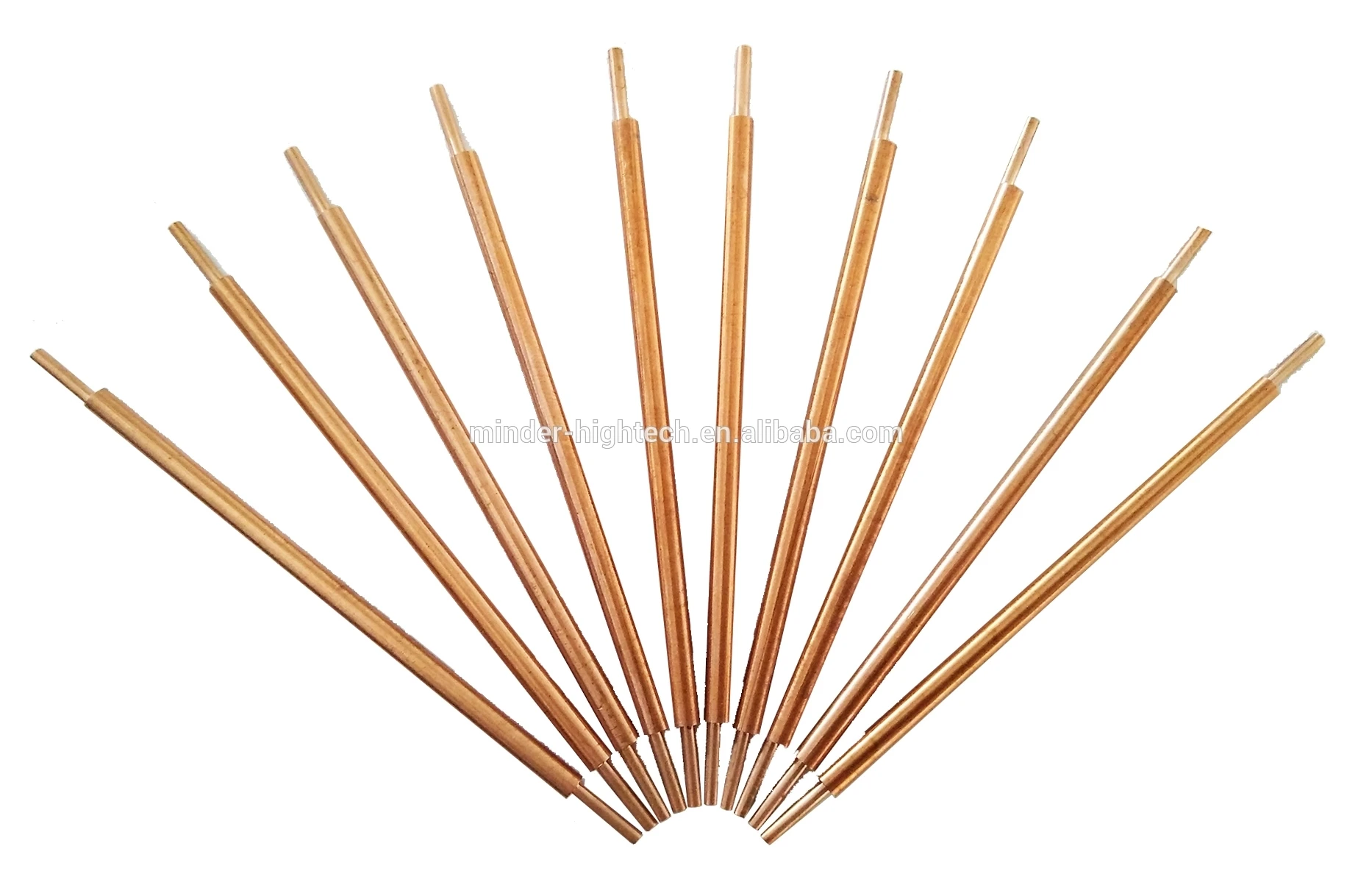

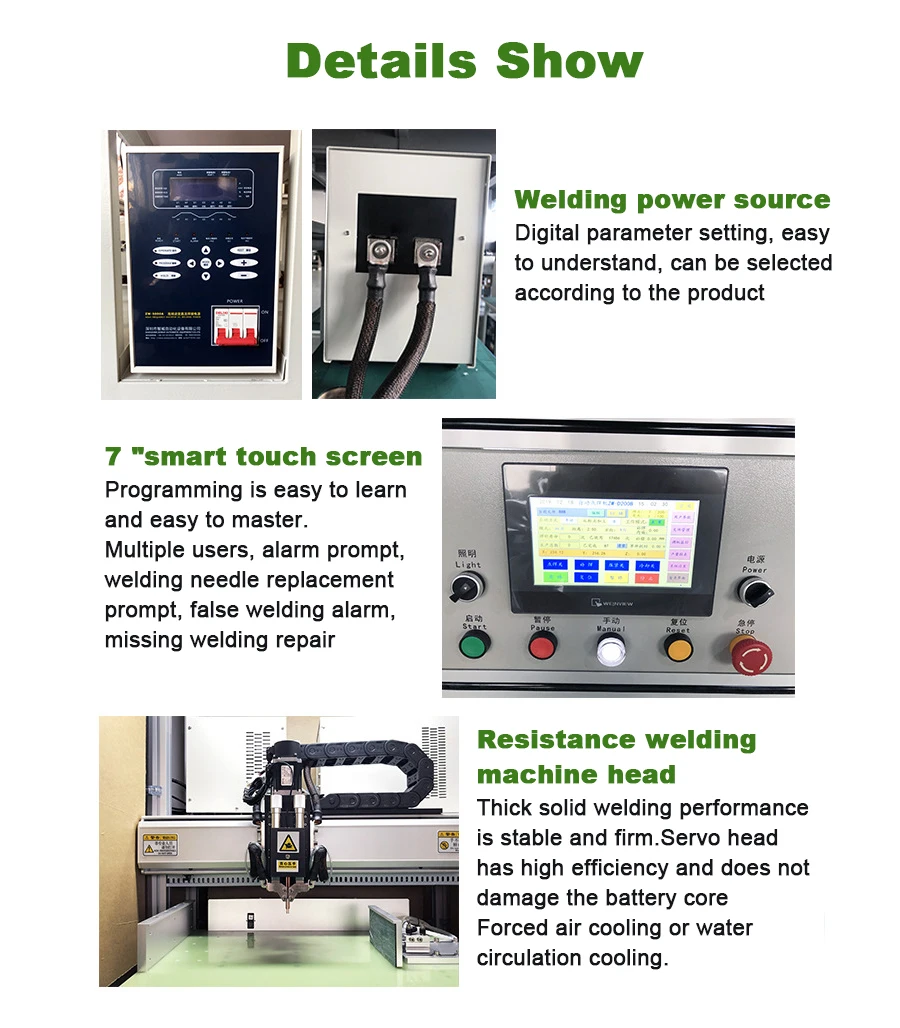

Support breakpoint start, automatic start, and manual start. Cold solder joint and sealing off alarm. Easy program, support matrix, array and point program, can store 99 group parameters. Welding needle abrasion alarm. Build-in welding current monitor, can display real time welding current. Design for NB, Power Tool, Gardening Tool, High Power, Energy Storage battery, Electric Motor Car Battery Pack, and other lithium battery packs spot welding. High productivity: 0.35s/spot Can be matched with the production line of lithium battery group. Automatic battery pack spot welder adopts traditional pneumatic single point dynamic, ensure the welding accuracy, and improve the welding appearance quality and reliability. Can store dozens process of different battery packs product, switching products without re-setting parameters. Can match a variety brand of spot welders.

Application area:

With the corresponding fixture, MD-ASW can weld 18650, 26650, 32650 and other cylindrical batteries, can also be customized for a variety of cylindrical battery, square battery, button battery and etc.

FAQ
1. who are we?
We are based in Guangdong, China, start from 2014,sell to North America(20.00%),Western Europe(20.00%),South Asia(20.00%),Southeast Asia(15.00%),Mid East(10.00%),South America(5.00%),Eastern Asia(5.00%),Northern Europe(5.00%). There are total about 11-50 people in our office.

2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

3.what can you buy from us?

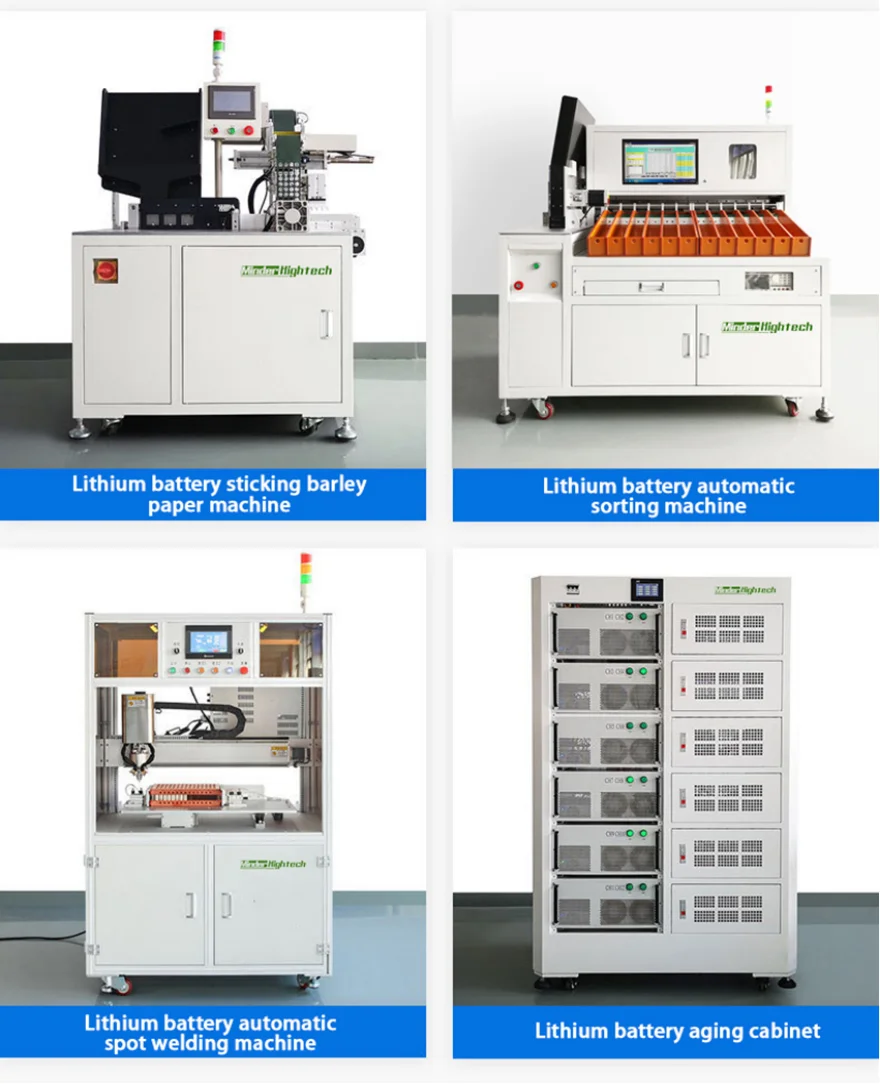

Soldering machine,Spot welding machine,Plasma cleaning machine,Glue dispenser,Screw machine

4. why should you buy from us not from other suppliers?
with ultra professional service and skill to provide high performance but competitive price goods, the customer's success is our own success.

5. what services can we provide?
Accepted Delivery Terms: FOB,CIF,EXW,FCA,CPT;
Accepted Payment Currency:USD,EUR,HKD,CNY;
Accepted Payment Type: T/T,PayPal,Cash;
Language Spoken:English,Chinese
