1000mm Diamond Synthetic ht Cubic Machine Press/diamond Powder Press Machine/ht cubic press PDC cutter machine

1000mm Diamond Synthetic ht Cubic Machine Press/diamond Powder Press Machine/ht cubic press PDC cutter machine

$61,773.12 USD
$77,216.40 USD $61,773.12 USD
Sale Sold out
Shipping calculated at checkout.
tion

 SYSTEM FUNCTIONS

It can realize the production of diamond single crystal, the main seriea are UDS750 and so on.





CHARATERISTICS

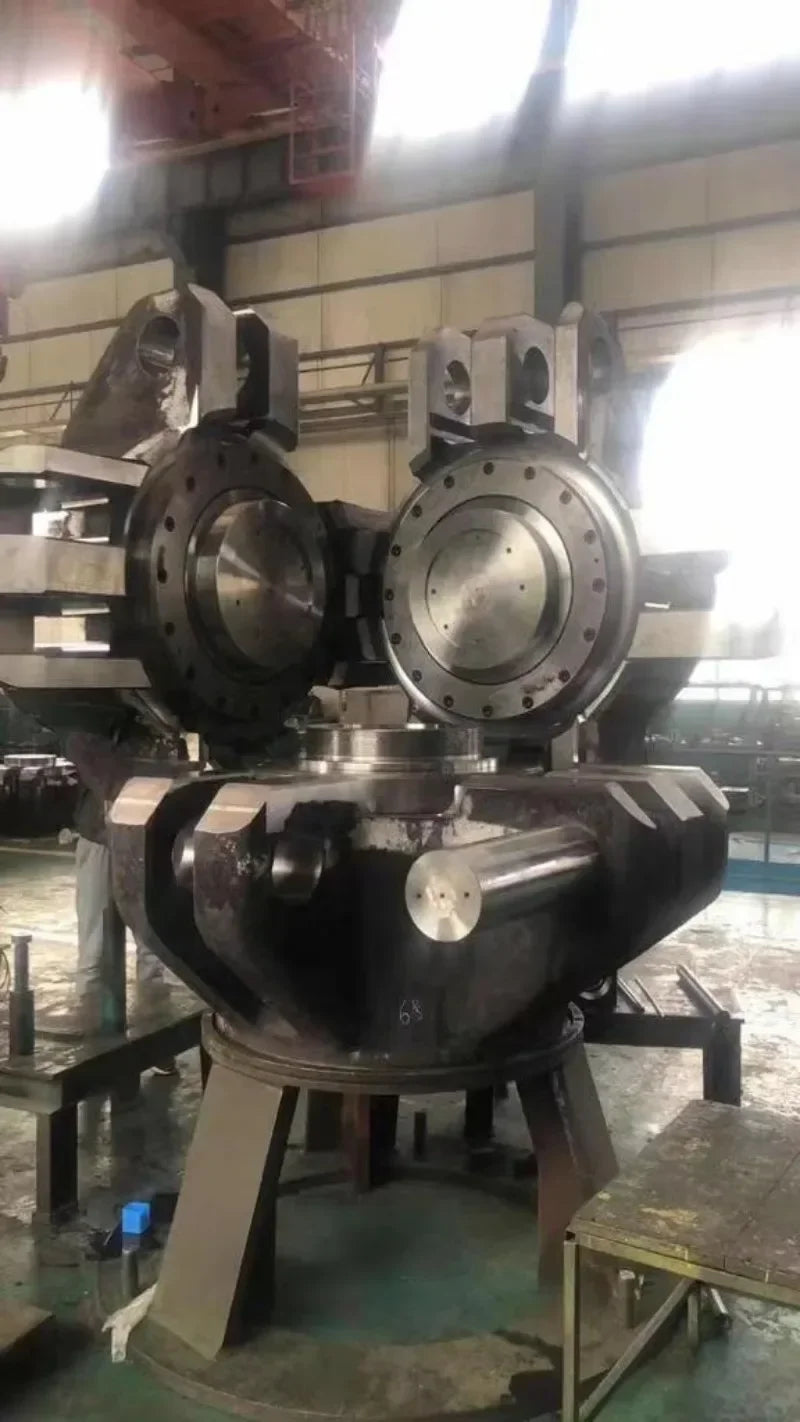

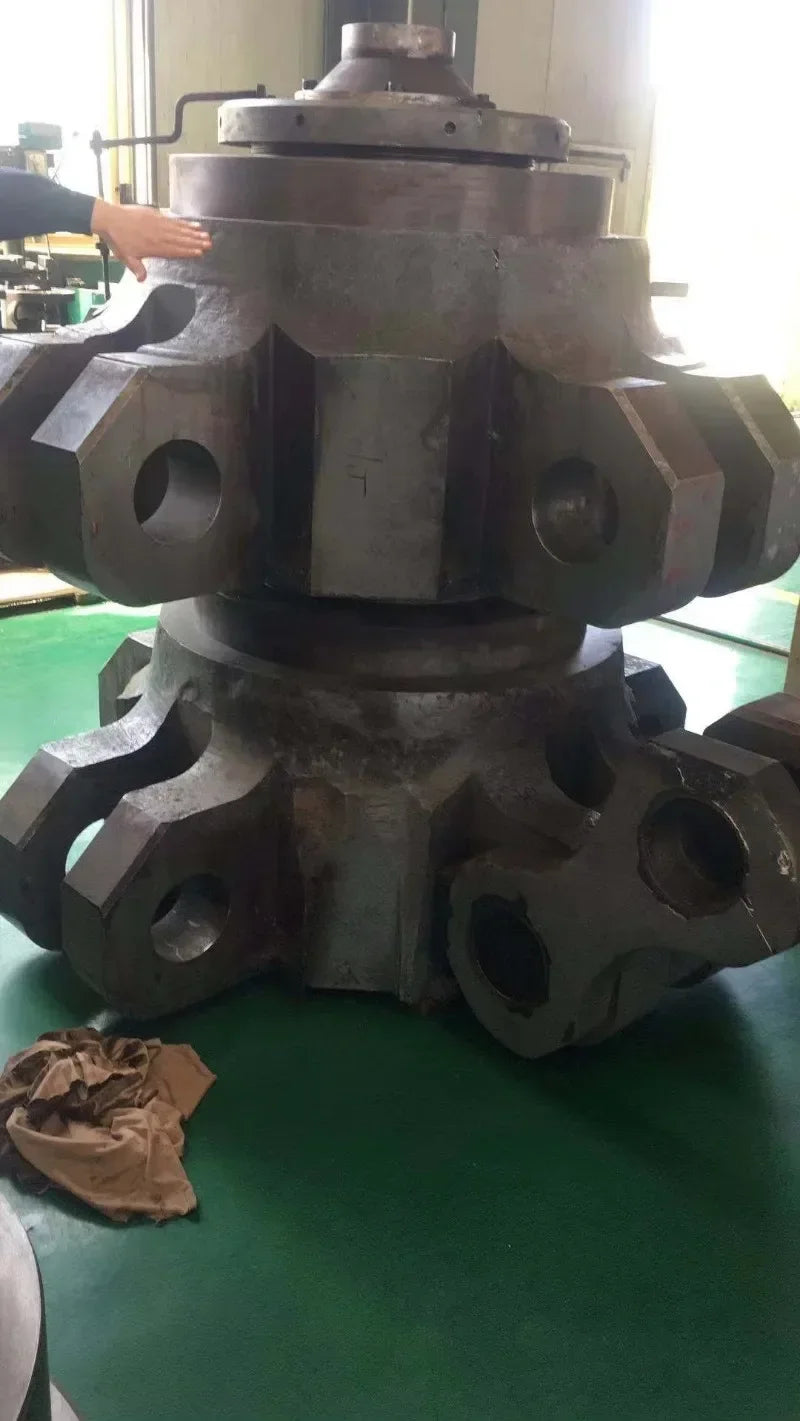

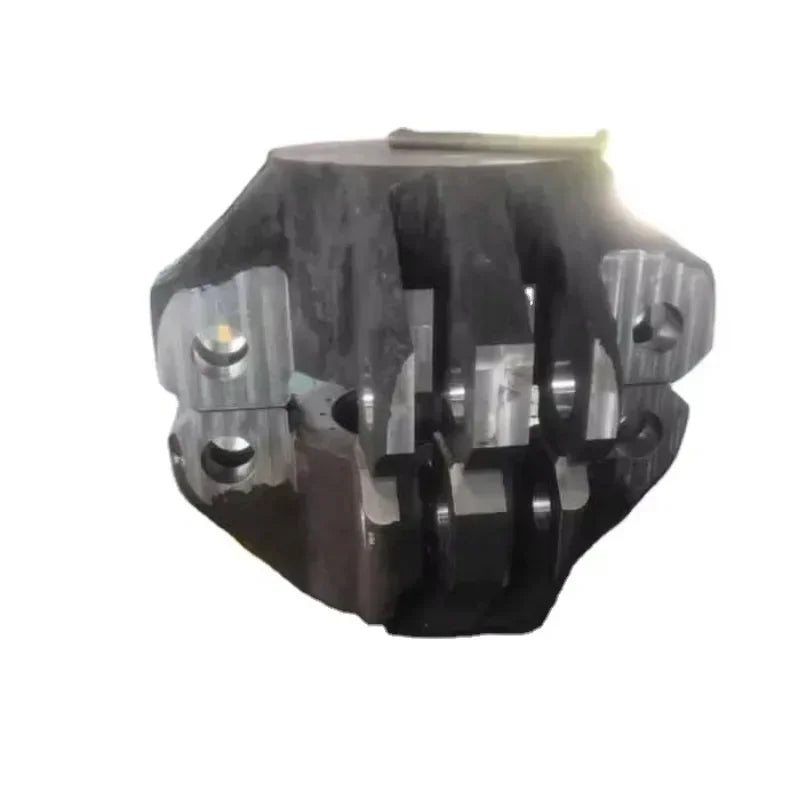

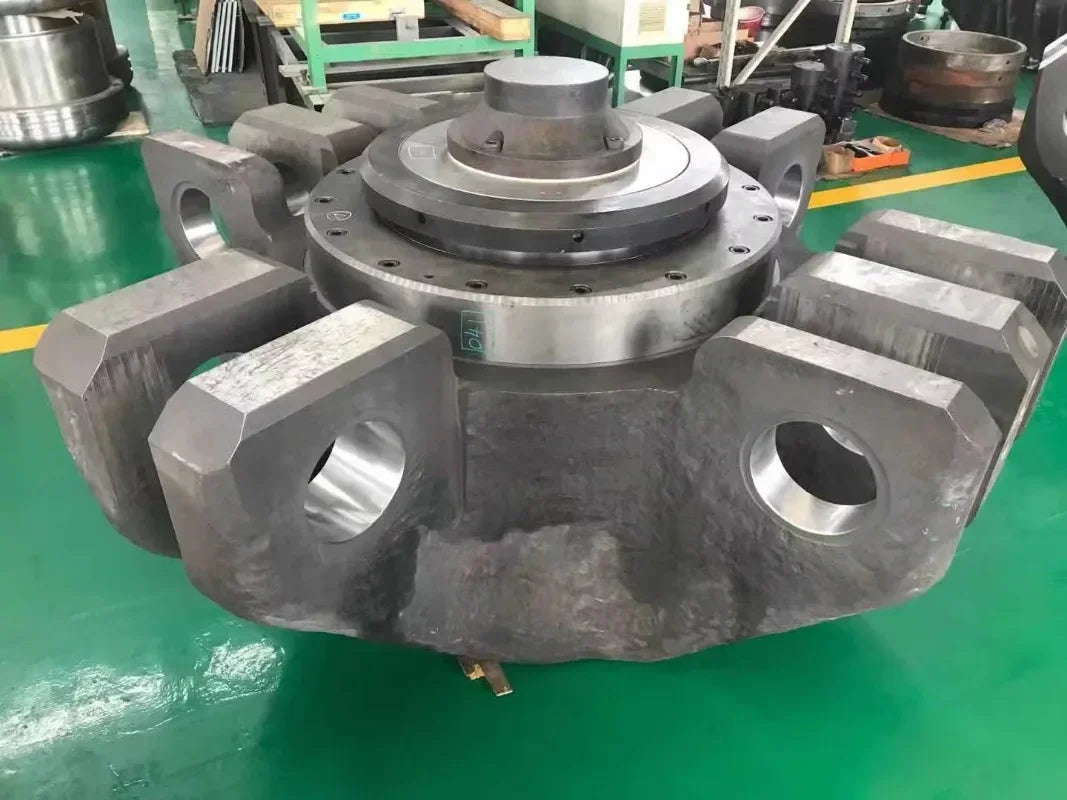

Fully forged cylinder beam integrared press has a long service life and five years warranty. The whole machine is small in size but large in interal space, which is convenient for workers to install and operate.

Project
Φ650
Φ750
Rated single cylinder thrust(MN)
34
42
Φ650Φ65Working cylinder inner diameter(mm)
Φ650
Φ750
Designing ultra high pressure(Mpa)
105
102
Ultra high pressure generation method
Reciprocating supercharger(double)
Reciprocating supercharger(double)
Piston stroke(mm)
85
95
Opening height(mm)
570
600
Closed height(mm)
400
410
Three cylinder forward speed
65mm <40S
40S
Fast return speed
465mm <40S
40S
Overpressure speed
>0.6Mpa/s
>0.6Mpa/s
Host weight
44 tons
50 tons
Hydraulic pump(l/min)
63/10
80/25
Motor(kw)
7.5/3
15/4
